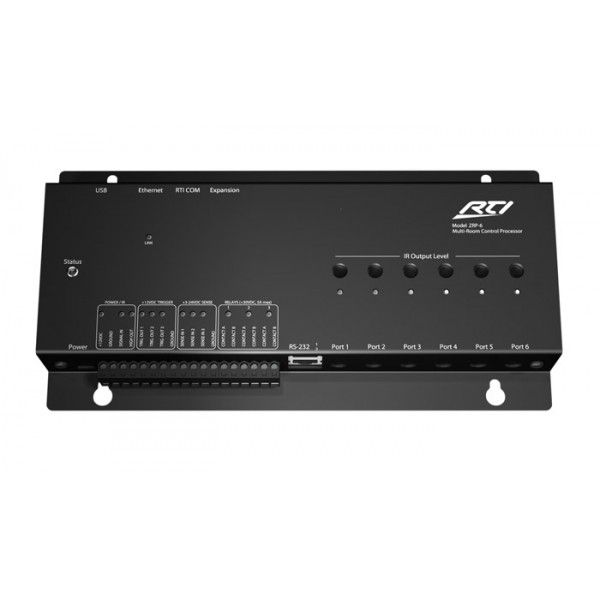

ZRP-6 Control Processor
This model has been discontinued
Representing the 2nd generation of the ground breaking RP-6 remote control processor from RTI, the ZRP-6 includes many welcome refinements. While maintaining all of the popular aspects of the RP-6, the ZRP-6 features an expanded configuration of control ports. The ZRP-6 is also equipped with support for separate RTI ZigBee® RF transceivers (ZM-24), while sense inputs can check power status for more reliable control. Multiple ZigBee® transceivers can be used together to gain greater RF transmission coverage in larger projects, providing the freedom to access and control the electronics system from just about anywhere. An added Ethernet port also allows for programming over the network.
The ZRP-6 raises the level of automation and control of any electronics system. The ZRP-6 is loaded with features to provide sophisticated control at a modest price, with built-in IR routing and pass-thru, relay control, sense inputs, Ethernet, and expansion ports. And when other RTI accessories are added, advanced control options such as
RS-232 communication and power sensing become available. Finally, the ZRP-6 provides the ability to store the systems IR commands at the central processor for more reliable macro execution and powerful automation. The ZRP-6 is the ideal centerpiece for any control system solution.
- Six multi-purpose I/O ports
- Three programmable relay outputs
- Three programmable 12VDC trigger outputs
- Three assignable voltage sense inputs
- Ethernet port for remote programming over the network
- IR input for IR pass-through or control
- Input for connection of multiple RF Receiver modules
- Compatible with RTI Zigbee® Tranceiver module for two-way communication
- Two RS-232 ports for bi-directional communications
- I/O ports are compatible with industry standard IR emitters and repeater systems
- All output ports incorporate both short-circuit and overload protection
- Variable IR output power on all ports
- I/O ports support optional RTI Power Sensing and Communication modules
- Programmed using the Integration Designer® software*
- Non-volatile Flash memory stores your system configuration even when power is not present
- Field upgradeable firmware
- USB programming
*Integration Designer software only available to authorized RTI dealers.
| Power Supply | +12V DC, 1.0A |
| Number of Output Ports | Six |
| Output Ports | Custom 3.5mm 4-conductor jacks are designed for RTI modules as well as industry-standard IR emitters. |
| IR Output Drive | 100mA maximum (per port, adjustable) 200mA maximum (high IR output port) |
| Infrared Frequency Transmission Range | 15kHz - 460kHz |
| Infrared Input | Compatible with industry-standard repeaters and receiving systems |
| Relays | 3 Amps @ 30 VDC |
| Trigger Outputs | 12VDC, 100mA |
| Sense Inputs | 3-24 VDC |
| RS-232 Ports | Bi-directional RJ45 Connection |
| Ethernet Port | 10/100 Base-T, RJ45 Connection |
| RTI Com Port | Zigbee® Communication Port - RJ45 |
| Mounting | Wall-mount or free standing |
| Dimensions (W x H x D) | 10.3" (262mm) x 5.25" (134mm) x 1.5" (38mm) |
| Weight | 1 lb. 3 oz. (543g) |
| Warranty | Three Year (Parts & Labor) |
