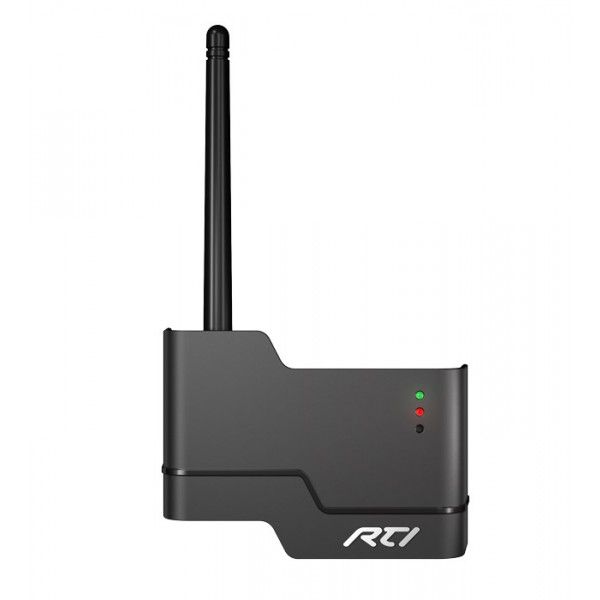

ZM-24 Zigbee Transceiver Module
The ZM-24 2.4GHz Zigbee® Transceiver Module provides bi-directional communication between two-way enabled RTI remote controls and control processors utilizing Zigbee® wireless communication. Capable of being hard-wired directly to a control processor or be used as a wireless repeater device to create an ultra-reliable, self-healing Zigbee® network.
* The ZM-24 does not directly control A/V components. It must be used in conjunction with a Zigbee® enabled processor.
Utilizing the latest in wireless technology, the ZM-24 Transceiver Module is capable of more than just receiving signals - it can transmit signals as well. This creates a bi-directional communication link between Zigbee® enabled RTI control processors and handheld remote controls. Feedback, such as song meta-data or volume level from supported devices can now be viewed on the remote control.
The ZM-24 is easy to install, since only one module needs to be hard-wired to the control processor. Additional “repeater” modules can be added by simply powering them from any electrical outlet within communication range of other modules.
NOTE: A 2.4 GHz Zigbee® enabled remote control and processor must be used with this model of transceiver. It is not compatible with the 433MHz remote controls.
- Enables bi-directional Zigbee® communication.
- Wireless Zigbee® communication range between ZM-24 modules up to 100 feet.
- Connects to a central processor from up to 1000 feet away using standard Cat5 cable.
- Multiple ZM-24's may be used when configured in “repeater” mode.
- Utilizes IEEE802.15.4 wireless Zigbee® communication at 2.4Ghz.
- Durable plastic enclosure and adjustable antenna.
- Receives power from an RTI control processor or from the included power supply.
- Durable plastic enclosure and adjustable antenna.
- Easy mounting with a detachable wall bracket.
| Power Requirements | +9VDC to +16VDC @ 60mA |
| RTI COM Port | Two-way Zigbee® Communication Port, RJ45 Connection Drives up to 1000 ft (300 m) of wire. |
| Wireless Networking | IEEE802.15.4 Zigbee® network compliant |
| RF Carrier Frequency | 2.4Ghz - 2.5Ghz |
| Device Capability | Total number of devices is limited only by memory |
| Communications | OTA (Over-the-air) Programmable |
| Enclosure | High-impact molded ABS plastic, black |
| Mounting | Detachable bracket |
| Module Dimensions - Antenna Extended |
3.5" x 7.5 " x 1.1" (89mm x 184mm x 28mm) |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% Non-condensing |
| Weight | 4.4 oz. (125 grams) |
| Warranty | Three Years (Parts & Labor) |
| Prop 65 Warning | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
