WK2 Water Resistant In-Wall Keypad
The WK2 has been discontinued and is out of stock in the RTI warehouse.

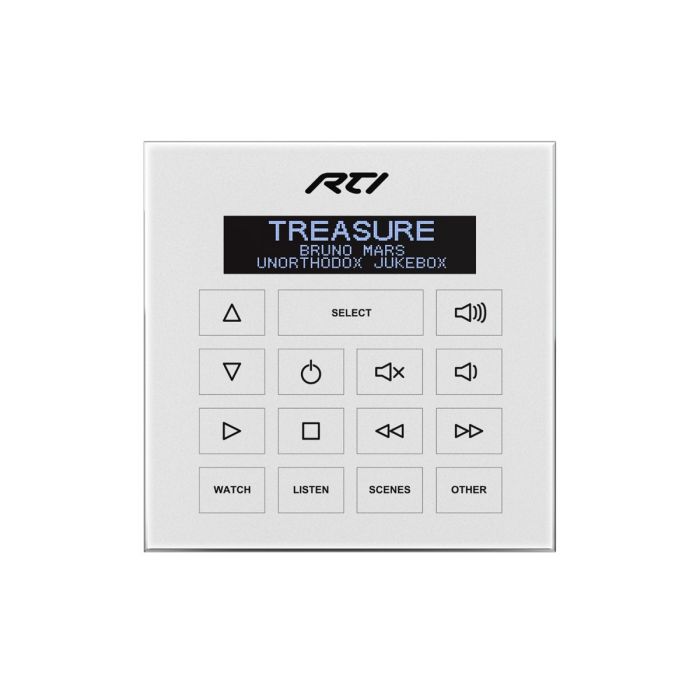

Combining modern styling and custom control, the WK2 features an all-glass exterior construction, integrated capacitive touch keypad, and bright OLED display for intuitive control and two-way feedback. The water-resistant keypad extends the RTI automation platform to residential and commercial settings such as kitchens, bathrooms, outdoor theaters, health clubs, yachts, and more. Compatible with RTI's full line of XP processors, the WK2 allows users to select and control audio, video, lighting and more.
*Requires an RTI XP series control processor.
*Integration Designer software only available to authorized RTI dealers.
Included in the box:
WK2, mounting wings (2) with screws, drywall cutout template
In-Wall
Blend your flush-mount keypad into the wall and use it for simple control of your home or business.
Hard Buttons
Fifteen Hard Buttons provide quick access to often used control functions such as lights, music, audio/video source selection.
2-Way / Status Display
Control intuitively via the buttons of your keypad and get status feedback from controlled devices on the status display such as on/off or arm/disarm status, dimming value of lights, selected audio/video source.
Ethernet
Standard 10/100 BaseT network connection for bidirectional control communication with RTI control processors.
PoE
Power your keypad through a PoE network switch or PoE injector. No extra power supply required.
- Capacitive touch glass keypad is water resistant.
- OLED display provides intuitive two-way feedback.
- Sleek, low-profile, glass exterior design.
- Wide operating temperature range for outdoor installations.
- Integrated 10/100Base-T Ethernet port with Power-over-Ethernet.
- Integrated mounting wings for easy installation in retrofit installs.
- A metal conduit box is available (separately) for new construction.
| Power | Power over Ethernet (PoE) 802.3af compliant Power-over-Ethernet router/switch (Class #2) |
| Display | OLED Monochrome Display 128w x 32h pixels Integrated capacitive touch keypad |
| Keypad | Capacitive touch, glass keypad |
| Ethernet Port | 10/100 Base-T with Power-over-Ethernet |
| Normal Operating Temperature | +32°F to +131°F (0°C to +55°C) |
| Non-Operating Temperature | 0°F to +150°F (-17°C to +65°C) |
| Operating Humidity | 5% to 95% Non-condensing A film on water on the keypad may stop touch functionality Avoid direct exposure to rain or other water sources |
| Communications | Ethernet |
| Enclosure | High-impact molded ABS plastic |
| Mounting | Integrated mounting wings, adhesive gasket |
| Front Plate Dimensions (H x W) | 3.425”(87mm) x 3.425”(87mm) |
| Installation Cut-Out (H x W) | 2.971”(75.5mm) x 2.967” (75.4mm) |
| Total Depth in Wall | 2.36”(59.95mm) Plus cable |
| Weight | 7.6 oz (216g) |
| Warranty | Three Years (Parts & Labor) |
