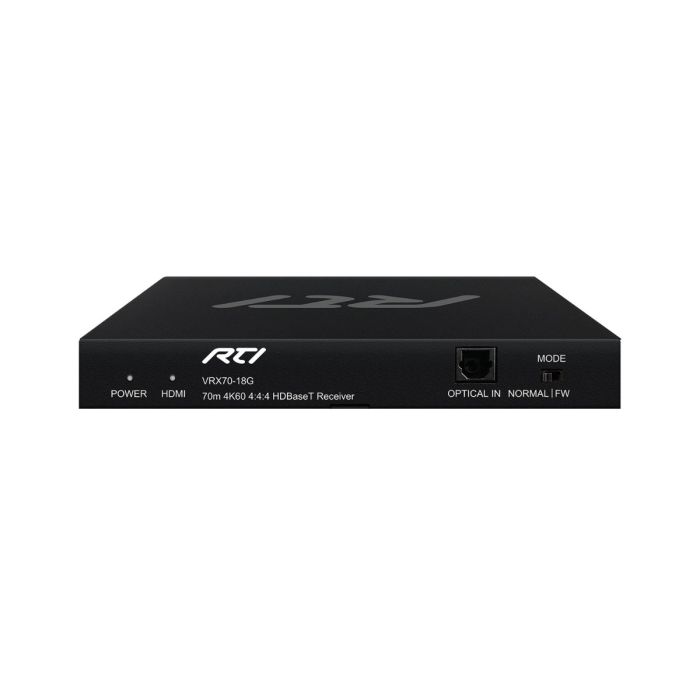

VRX70-18G 4K HDBaseT™ Receiver
The VRX70-18G HDMI 2.0 4K60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ Receiver pairs perfectly with the VX44-18G-Kit* and the VX88-18G and offers market-leading features and outstanding value, including Color Space Conversion (CSC) technology. The product extends HDMI, Bi-directional IR, and is powered by the matrix up to lengths of 70m (4K 40m). The VRX70-18G HDMI 2.0 4K60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ Receiver pairs perfectly with the VX44-18G-Kit* and the VX88-18G and offers market-leading features and outstanding value, including Color Space Conversion (CSC) technology. The product extends HDMI, Bi-directional IR, and is powered by the matrix up to lengths of 70m (4K 40m).
Included in the box:
VRX70-18G (1), Mounting Kit (1)

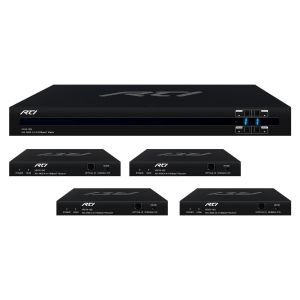

* The VX44-18G-Kit comes with 4 x VXR70-18G
HDBaseT™
No bottleneck with the latest HDBaseT ™ 18Gbps standard that provides the highest possible bandwidth that currently exists.
4K UHD
Enjoy stunning picture quality with 4K UHD resolution.
2160p/60Hz/4:4:4
Eliminate blurred fast motions in action movies. 4K resolution paired with 60Hz refresh rate provides a crystal clear and crisp picture quality.
Long Distance
Go beyond the distance limitations of HDMI cables. Video can be transmitted over a Cat cable up to 229ft/70m.
HDCP 2.2
Be fully compliant with the latest copy protection algorithms to avoid black screens when connecting an HDMI source
Power over HDBaseT™
Get rid of extra power supplies for HDBaseT™ receivers. Remote devices can be powered over the HDBaseT cable.
- Advanced HDBaseT™ technology enables distribution of video and audio over a single CAT cable
- Advanced color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K and all known HDMI audio formats including Dolby TrueHD®, Dolby Atmos®, Dolby Digital Plus® and DTS-HD Master Audio® transmission
- HDMI re-clocking to help solve HDMI HDCP, compatibility and handshaking issues
- IR pass-through to compatible HDBaseT™ devices
- Supports bi-directional PoC (Power over Cable) from VX88-18G
- HDCP 2.2 support
| Video Input | 1 x HDBaseT™ RJ45 Connector |
| Video Output | 1 x HDMI Type A, 19-pin, female |
| Audio Input | 1 x Toslink (S/PDIF) |
| AudioOutput | 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analog Audio |
| HDBaseT™ Transmission Distance | 1080p@50/60Hz ≤ 229ft (70m) 3840 x 2160 @50/60Hz 4:4:4 ≤ 131ft (40m) |
| Max. Bandwidth | 18Gbps |
| TCP/IP Control | xxx |
| RS-232 Serial Port | 1 x 3 Pin Phoenix Connector |
| IR Input | 1 x 3.5mm Stereo Jack |
| IR Output | 1 x 3.5mm Mono Jack |
| Mounting Kit | Included |
| Dimensions WxDxH | 5.5in(140mm) x 3.3in(84mm) x 0.7in(18mm) |
| Dimensions WxDxH (including connectors) |
5.5in(140mm) x 3.5in(88mm) x 0.7in(18mm) |
| Shipping Weight | 1.3lbs (0.6kg) |
| Operating Temperature | +32 to +104°F / 0 to +40°C |
| Storage Temperature | -4 to +140°F / -20 to +60°C |
| Warranty | Three Years (Parts & Labor) |
