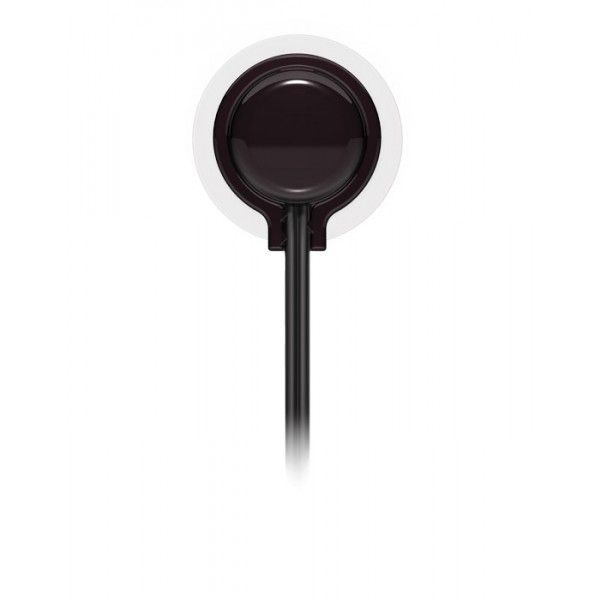

VIRSA MOUSE IR Emitter

Designed with the professional integrator in mind, the “versatile” vIRsa Mouse is an IR emitter built to outperform all others. Installations will go smooth with an unobtrusive, low-profile IR emitter that features a flexible film adhesive which conforms to curved surfaces. Troubleshooting will be a breeze with features such as a separate holder that stays attached, allowing easy removal and replacement of the emitter, and a visible blue LED flasher that can be covered during normal operation. Since reliability is one of the most important aspects of an IR emitter, the vIRsa Mouse is engineered like no other. An actual (translucent) PCB improves the integrity of electrical connections within the emitter. A built-in resistor protects against over-driving, and precision molding ensures consistent quality. From top to bottom, the vIRsa Mouse has everything on the integrator wish list - reliability, sleek design and innovative features to make any installation go like clockwork

  • Sleek, low-profile and symmetrical design.
  • Separate holder allows for easy removal/replacement of emitter.
  • Flexible film adhesive conforms to curved surfaces.
  • Blue LED flasher can be visible during normal operation or only for troubleshooting.
  • Translucent circuit board allows IR pass-through.
  • Industry standard 3.5mm mini-plug uses precision over-molding to ensure consistency.
  • Ten foot cable reaches the entire rack.
  • Integrated cable management strap.
Input Requirements 3V to 16V DC, 20mA minimum
Maximum Current Consumption 0.5mA
Control Cable Length 10 feet (3.0 m)
Control Cable Plug Standard 3.5mm plug
Dimension (Diameter) Adhesive Backing .59" (15mm) diameter
Emitter .44" (10mm) diamter
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Warranty 90 Days
