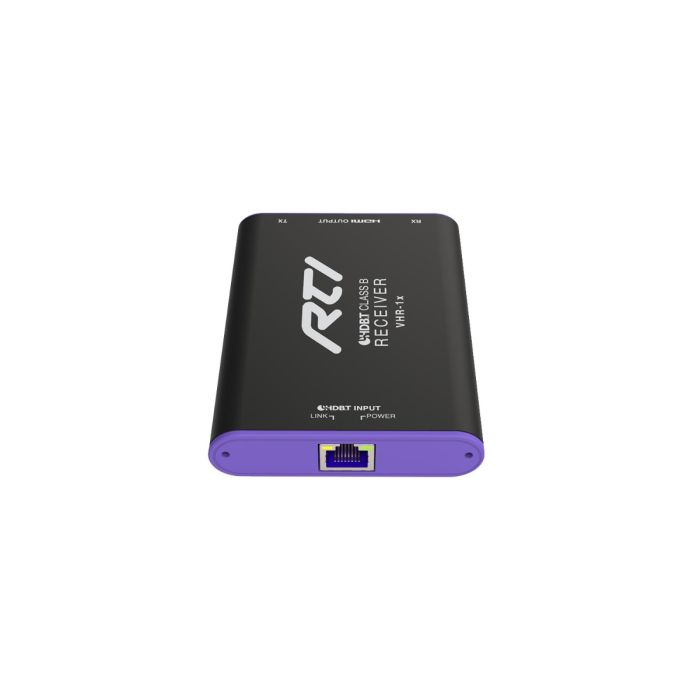

VHR-1x X-Series HDBaseT™ Class-B Video Receiver
This product is discontinued.
The VHR-1x HDBaseT Receiver receives an HDMI video signal over a single Cat5e cable or greater from a VHT-1x HDBaseT Transmitter or from a VHD-4x/8x HDBaseT Video Matrix Switcher. VHR-1x is powered through the connected Cat cable using PoH (Power over HDbaseT). It also receives an IR control signal through the same Cat cable and delivers it to the connected display or projector.
VHR-1x is also available as set with the VHT-1x transmitter.
Included in the box:
VHR-1x, Infrared Blaster Cable Pack (TX/RX Pack)
4K UHD
Enjoy stunning picture quality with 4K UHD resolution.
2160p/60Hz/4:2:0
Don't bother with blurred fast motions in action movies. 4K resolution paired with 60Hz refresh rate provides a crystal clear and crisp picture quality.
Long Distance
Don’t worry about limitations HDMI cables have in distance. 4K video can be transmitted over HDBaseT cable up to 131ft/40m and 1080p even farther up to 230ft/70m.
HDCP 2.2
Avoid black screens when connecting an HDMI source using full HDCP 2.2 compliance with the latest anti-piracy algorithms.
PoH
Get rid of extra power supplies for HDBaseT receivers. Remote devices can be powered over the HDBaseT cable.
- Extends HDMI video 1080p up to 230ft (70m) and 4K up to 131ft (40m) over a single Cat5e cable or greater
- HDMI-CEC Bi-Directional Control
- Bi-Directional IR Control
- Power supply included (transmitter)
- PoH Power over HDBaseT (receiver)
- Wall mountable (brackets sold seperately)
- HDCP 2.2 compliant
- Automatic EDID support
- Low Profile
- Full HDMI Audio support
| Power Supply | powered via Power over HDBaseT (PoH) |
| Power Consumption | 5.5W |
| Wall Mountable | Yes - brackets sold separately |
| Dimensions HxWxD | 0.7in(18mm) x 3.22in(82mm) x 4.52in(115mm) |
| Weight | 0.31 lbs (140g) |
| Operating Temperature | 0 to +40°C / +32 to +104°F |
| Operating Humidity | 5% to 90% Non-condensing |
| Video Input | One HDBAseT Class B (PoH) (RJ45) |
| Video Output | One HDMI |
| HDBaseT Transmission Distance | 1080P@60Hz ≤ 230ft (70m) 4K@30Hz ≤ 131ft (40m) |
| HDBaseT Recommended Cable | Cat5e or greater |
| Color Supported | 4K: 8bit, 1080p: 12bit |
| Color Depth | Up to 36bit (3x 12bit) |
| TMDS Clock Speed | 340MHz |
| Max. Bandwidth | 10.2Gbps |
| Compliance | HDCP 1.4 and HDCP 2.2 |
| PoH | PoH (Power over HDBaseT) from Transmitter |
| IR Control | One IR In, One IR Out, 3.5mm jacks, compatible with industry standard IR repeaters and receivers |
| CEC Control | Full |
| Warranty | Three Years (Parts & Labor) |
