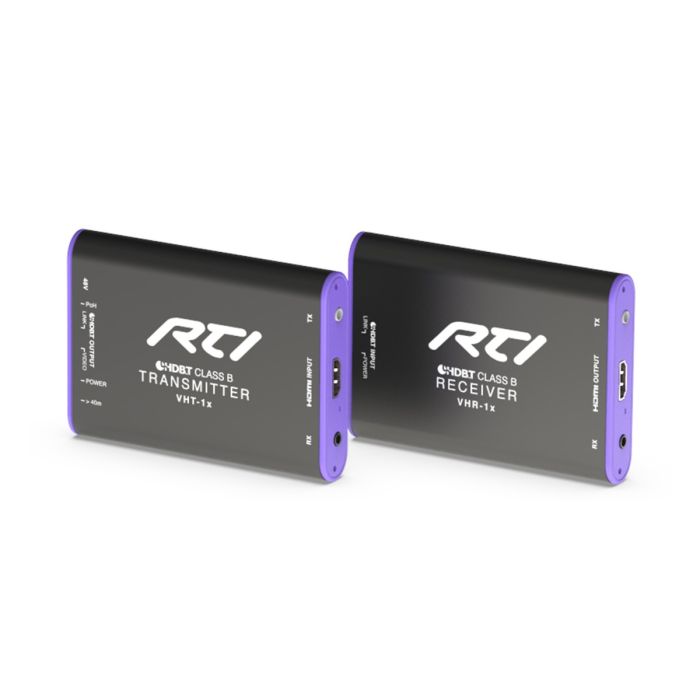

main product photo

VHP-1x X-Series HDBaseT Class-B Extender Set

Find a Dealer

This product ct has been discontinued and is no longer stocked in the RTI warehouse.



Rather than investing in a separate set of video sources at each TV location, in many cases it is more cost effective and easier to manage shared content. However, most HDMI cables are not capable of delivering video over long distances. In addition, as the video resolution and color improves (ex. 4K UHD), data bandwidth requirements increase and the maximum HDMI cable length is further reduced.

The VHP-1x Extender Set utilizes Class B HDBaseT technology to deliver 4K video to a display or projector located up to 131ft (40m) away. The transmitter and receiver also transmit IR signals through the same cable to control the remote display.

VHT-1x HDBaseT Class B Video Transmitter
The VHT-1x HDBaseT Transmitter delivers an HDMI 1080p video signal over a single Cat5e/6/7 cable, up to 230ft (70m) and a 4K signal up to 131ft (40m) to the VHR-1x HDBaseT Receiver. To speed up installations and troubleshooting, the transmitter is equipped with a link quality indicator, which will flash if the Category cable has an issue such as being too long or has been damaged.

VHR-1x HDBaseT Class B Video Receiver
The VHR-1x HDBaseT Receiver receives an HDMI video signal over a single Cat5e/6/7 cable from a VHT-1x HDBaseT Transmitter or from a HDBaseT Video Matrix Switcher. The receiver is powered through the connected Category cable using PoH (Power over HDbaseT). It also receives an IR control signal through the same cable and delivers it to the connected display or projector.

Included in the box:
VHT-1x Transmitter, VHR-1x Receiver, Infrared Blaster Cable Pack (TX/RX Pack) (1), Power Supply 48V/0.5A (1)

VHP-1x Features

4K UHD
Enjoy stunning picture quality with 4K UHD resolution.

2160p/60Hz/4:2:0
Don't bother with blurred fast motions in action movies. 4K resolution paired with 60Hz refresh rate provides a crystal clear and crisp picture quality.

Long Distance
Don’t worry about limitations HDMI cables have in distance. 4K video can be transmitted over HDBaseT cable up to 131ft/40m and 1080p even farther up to 230ft/70m.

HDCP 2.2
Avoid black screens when connecting an HDMI source using full HDCP 2.2 compliance with the latest anti-piracy algorithms.

PoH
Get rid of extra power supplies for HDBaseT receivers. Remote devices can be powered over the HDBaseT cable.



Key Features
  • Extends HDMI® video 1080p up to 230ft (70m) and 4K up to 131ft (40m) over a single Cat5e/6/7 cable.
  • HDMI-CEC Bi-Directional Control.
  • Bi-Directional IR Control.
  • VHT-1x link quality indicatator flashes if the Category cable has an issue (ex. Too long, damaged, improperly terminated etc).
  • Power supply included (transmitter) with Power over HDBaseT to receiver.
  • Low Profile - Wall mountable (brackets sold seperately).
  • HDCP 2.2 compliant.
  • Automatic EDID support.
  • Full HDMI Audio support.
Power Supply 1 x 48V @ 0.5A (Transmitter only)
Receiver is powered via Power over HDBaseT from Transmitter
Power Consumption Transmitter: 3W / Receiver: 5.5W
Wall Mountable Yes - brackets sold separately
Dimensions HxWxD 0.7in(18mm) x 3.22in(82mm) x 4.52in(115mm) each
Weight 0.31 lbs (140g) each
Operating Temperature 0 to +40°C / +32 to +104°F
Operating Humidity 5% to 90% Non-condensing
Video Input One HDMI
Video Output One HDBAseT Class B (PoH) (RJ45)
HDBaseT Transmission Distance 1080P@60Hz ≤ 230ft (70m)
4K@30Hz ≤ 131ft (40m)
HDBaseT Recommended Cable Cat5e or greater
Color Supported 4K: 8bit, 1080p: 12bit
Color Depth Up to 36bit (3x 12bit)
TMDS Clock Speed 340MHz
Max. Bandwidth 10.2Gbps
Compliance HDCP 1.4 and HDCP 2.2
PoH PoH (Power over HDBaseT) to Receiver
IR Control One IR In, One IR Out, 3.5mm jacks, compatible with industry standard IR repeaters and receivers
CEC Control Full
Warranty Three Years (Parts & Labor)



All features and specifications subject to change without notice.
