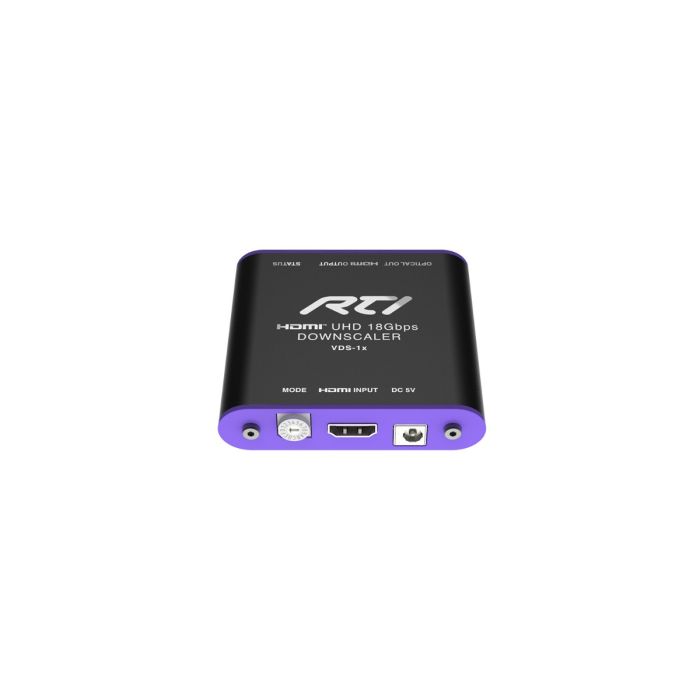

VDS-1x HDMI® UHD 18Gbps Downscaler
Video distribution deployments with mixed resolution displays can be challenging. For example, an installation with a legacy 1080p TV in one room and a fantastic new 4K HDR TV in another room, and they both need to access the same ultra-high definition content. In cases like this, the simple solution is the VDS-1x HDMI® downscaler.
The VDS-1x converts 4K video to 1080p in real time with no latency or tearing. Engineered to support even the highest resolution UHD content, the downscaler also offers an optical audio output, and a low profile design, small enough to fit behind any TV.
Included in the box:
VDS-1x, Power Supply 5VDC
- 4K UHD > 1080p Downscaler
- Perfect for mixed resolution deployment
- No latency or tearing for the best possible picture
- Discreet design, ideal for placing behind TV
- Easy setup for plug and play installation
- Seamlessly downscales 4K UHD signals to 1080p
- Designed for installations featuring mixed resolution TVs
- Simple set up using HDMI inputs and outputs
- Rotating dial switch for selecting downscale mode
- Perfect for use with RTI matrix systems
- Discreet design, only 0.7in (18mm) high, perfect for placing or mounting behind the TV
- Optional optical port for using S/PDIF audio output
- Status LED indicator
| Power Supply | 5v DC / 10W |
| Power Consumption | Max 2Amp @ 5V 10 Watts |
| ESD Protection | +/- 8kV (Air-gap discharge) +/- 4 kV (Contact discharge) |
| Surge Protection | IEC 61000-4-4 (EFT) 40A (5/50 nano seconds) IEC 61000-4-5 (Lightning) 25A (8/20 micro seconds) |
| Electrical Fast Transient-Burst | Data comm cord:1 kV Power cord : 2 kV |
| Dimensions HxWxD | 0.71in(18mm) x 3.11in(79mm) x 7.08in(180mm) |
| Weight | 0.22lbs (100g) |
| Operating Temperature | 32°-95°F (0°-35° C) |
| Operating Humidity | 5% to 90% Non-condensing |
| Video Input | One HDMI |
| Audio Format Input | 5.1 Dolby Digital or 2ch Stereo PCM |
| Input Video Signal | 3.3V DC bias, 400-600mVp-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Video-Audio Output | One HDMI, One Toslink (Optical) |
| Audio Format Output | 5.1 Dolby Digital or 2ch Stereo PCM |
| ScaleVideoDownfrom | 3840x2160p@24/25/30/60Hz to 1920x1080p@ 24/25/30/60Hz |
| Max In-Out Resolution Supported | Up to 3840 x 2160p @ 60Hz |
| Color Supported | 4:4:4 (8-bit), 4:2:2 (10-bit) or 4:2:0 (12-bit) all at 3840 x 2160p @ 60Hz |
| Max Video Output Clock Speed | Input: 594MHz, Output: 340MHz |
| Output Impedance | 100Ω |
| Transmission Distance (4K-1080p) | Input - 6.5ft(2m), Output - 6.5ft(2m) |
| Compliance | HDCP 1.4, HDCP 2.2 |
| Warranty | Three Years (Parts & Labor) |
All features and specifications subject to change without notice.
