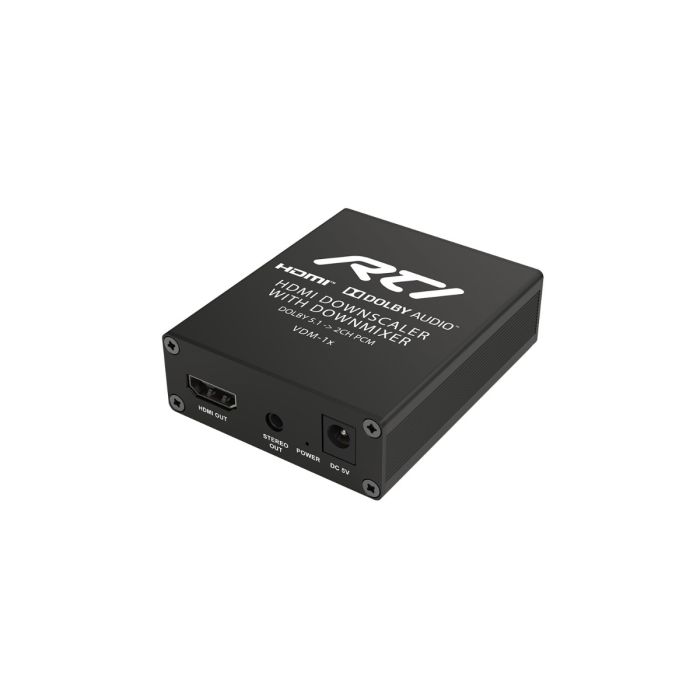

VDM-1x HDMI® Downscaler with Downmixer
This product is discontinued.
The VDM-1x video scaler and digital audio converter (DAC) is the ideal solution to accommodate HD (1080p) and 4K sources and displays within a multi-zone residential or commercial installation. The unit is designed to be placed between a display and a source device and it adjusts video resolution (upscale or downscale) and audio (downmix or bypass) from an incoming HDMI® source and scales the output to a level compatible with the display capabilities.
Included in the box:
VDM-1x, Power Supply 5VDC/2A
- Downscale 4K/30p to 1080/24p, to enable 1080p screens to view 4K sources through a 4K matrix system.
- Upscale 1080/24p to 4K/30p, for connection to 4K screens.
- Downmix of incoming Dolby Digital to stereo PCM audio.
- Supports resolutions up to 3840x2160p@24/25/30Hz.
- Up to 6 channels of input support (up to 5.1 surround) of audio encoded in Dolby Digital.
- Low-latency digital filtering.
- Accepts uncompressed digital audio input signals.
- Switchable input selection for video/audio scaling or signal pass-through.
- Equalizes and boosts HDMI signal for longer distance transmissions (up to 6.5 feet/2 meters more).
| Power Supply | 5v DC / 10W |
| Power Consumption | 5V, 1A |
| HDMI Inputs | 1 |
| Video Input Zones | 1 |
| HDMI Outputs | 1 |
| HDCP | 1.4 |
| Dimensions HxWxD | 0.9in(24mm) x 3.0in(77mm) x 2.6in(65mm) |
| Weight | 0.1lbs (100g) |
| Operating Temperature | +32° to +95°F (0 to +35°C) |
| Operating Humidity | 5% to 90% Non-condensing |
| Audio Output | 3.5mm Stereo Jack |
| Scale Video Up | 1920x1080p @ 24/25/30Hz to 3840x2160p @ 24/25/30Hz |
| Scale Video Down | 3840x2160p @ 24/25/30Hz to 1920x1080p @ 24/25/30Hz |
| Supported Audio Formats | 5.1 Dolby Digital / 2ch Stereo PCM |
| Video-Audio Output | One HDMI, One Toslink (Optical) |
| Audio Format Output | 5.1 Dolby Digital or 2ch Stereo PCM |
| Auto-sample Frequencies | 32, 44.1 and 48KHz |
| Audio Signal Support | Up to 24bit with sampling rates up to 192KHz |
| Audio Format Output | Pass-through / 2ch PCM with Downmix selected |
| THD+N Rating | -93db (Total harmonic distortion plus noise) |
| Warranty | Three Years (Parts & Labor) |
All features and specifications subject to change without notice.
