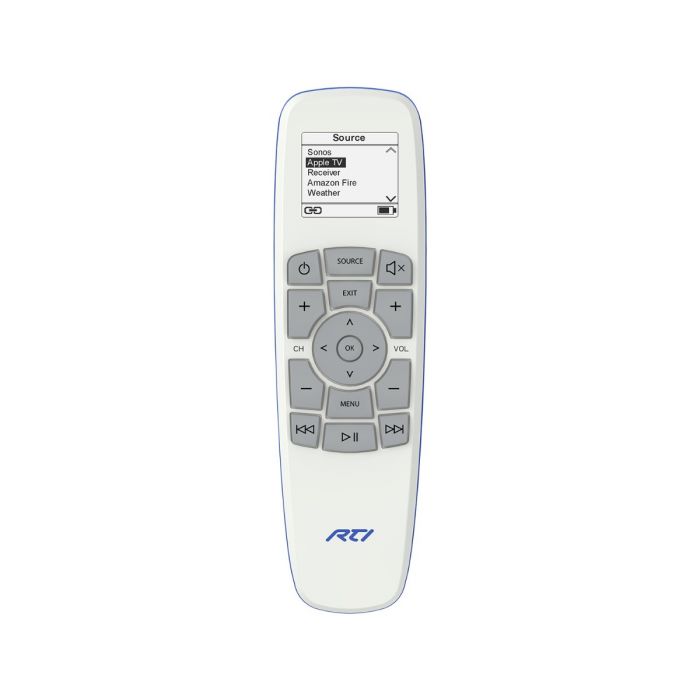

U3 Water Resistant Remote Control

The U3 water-resistant remote is the perfect companion for hot tubs, pools, bathrooms, and decks, delivering exceptional control  in environments too wet or harsh for standard remotes.

RTI Integrators: Be sure to update the firmware before installing the U3. This will ensure the full feature set is available to your customers.

The U3 remote floats if dropped in water for easy retrieval. It uses inductive charging and wireless programming updates, allowing it to be completely sealed for exceptional (IP-66 rated) protection. The U3 combines the convenience and low power requirements of an electronic paper display with fully programmable soft-touch buttons for quick access to commonly used functions. The display is easy to read in bright light—even outdoors—and can be customized to each project via the award-winning RTI Integration Designer programming software.

Included in the box:
U3, charging dock, cradle, mounting holster (2), Lithium-ion battery (Installed) (1), International power supply (5V, 1A) (1), Size 10 mounting screws (4)

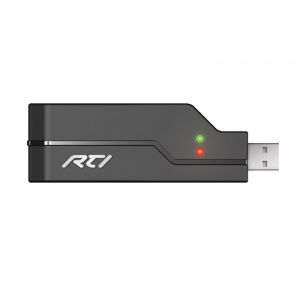

Important Note: The U3 requires the RTI ZB-Pro Zigbee Programming Tool to download system file and firmware updates.


U3 Features

2-Way
Get status feedback from controlled devices on your remote such as on/off or arm/disarm status, dimming value of lights, music playlists, available radio stations.

Hard Buttons
16 programmable hard buttons provide easy access to control functions.

Zigbee
Standard wireless Zigbee IEEE802.15.4 connection for bidirectional control communication with RTI processors.

RF 433 MHz
Wireless unidirectional RF communication on the 433 MHz band for control communication with RTI processors.

Electronic Paper Display
Intuitive control menu and feedback from devices or systems on the easy-to-read electronic paper display, even in bright sunlight.

Weather Resistant / IP66 Rated
Perfect for hot tubs, pools, bathrooms, and decks, this remote is designed for reliable wireless control in environments that are too harsh for standard controllers. The U3 is completely sealed, is dust tight and water repellent.

Lithium Ion Battery / Inductive Charging Cradle
Your remote can operate 2 to 3 months on average use. Charge it conveniently with the included inductive charging cradle.

  • Durable design is weather resistant.
  • Ergonomic design permits effortless, one-handed operation.
  • Completely sealed and floats.*
  • Dust tight and water repellent (IP66 rated).
  • Dual RF capability uses 433MHz or 2.4GHz (utilizing Zigbee® technology).
  • Sixteen programmable keypad buttons.
  • Electronic paper display is easy to read in bright light.
  • Wireless programming.**
  • Inductive wireless charging.
  • Rechargeable Lithium-Ion battery.
  • Includes charging dock and weather resistant cradle.
  • Includes wall mount holsters.
  • Three different screen text size selections.

* Not intended for exposure to water for extended periods of time.

** The U3 requires the RTI ZB-Pro Zigbee Programming Tool to download system file and firmware updates.

Power 3.6 VDC, 900 mAh Lithium-Ion Battery Pack
Radio Frequency Control Range Up to 100 feet (30.5 meters)
(with optional System Interfaces/Processors
Radio Frequency Carrier 802.15.4 @ 2.4GHz (Zigbee® Wireless Networking), 433MHz
Display Electronic Paper Display
Display Size 1.9” (48mm) diagonal
Battery Life 2-3 Months*
Battery Charge Time 3-4 Hours
System Memory 256 KB Flash (non-volatile) memory
Device Capability Total number of devices is limited only by memory
Macro Capability Unlimited steps in a single macro
Total number of macros is limited only by memory
Macro capability on 16 buttons
Programming 2.4GHz Zigbee**
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Dimensions (L x W x D) 7.9” (201mm) x 2.3” (58mm) x 1.1” (28mm)
Enclosure High-impact molded ABS plastic
Removable rubber housing with anti-fungal coating
IP Rating IP66: Dust tight and water repellent***
Weight 6.8 oz. (193g) with battery pack
Warranty Three Years (Parts & Labor) / One year on the battery
Prop 65 Warning WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

All specifications subject to change without notice
* With average use on full charge, your results may vary.
** The U3 requires ZB-Pro Zigbee Programming Tool to download system file and firmware updates.
*** Not intended for exposure to water for extended periods of time.
