T3 Universal Controller
This model discontinued

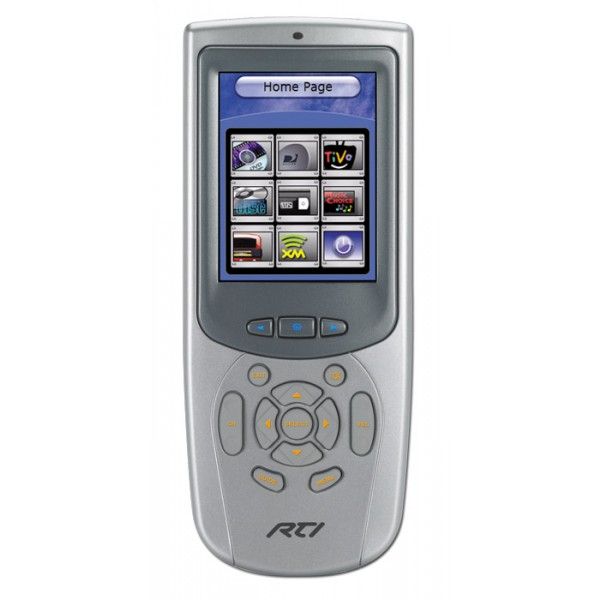

The T3 is RTI's ultimate handheld universal controller. With a full color TFT LCD display, powerful 32-bit MCU, 32MB of memory, the T3 takes remote control to a new level.
The amazing T3 Universal System Controller combines the power and flexibility of a graphic LCD touchscreen with an ergonomic design that permits effortless one-handed operation. On its own, the T3 is the most user-friendly universal remote control you have ever used. Combined with the other RTI accessory products, the T3 becomes a robust commercial-quality control system
The T3 maintains the perfect balance between a large touchscreen and frequently used hard buttons. It is thinner, lighter, and has better ergonomics for one-handed operation than any product in its class. This design overcomes the need for compromise between form and function. Sleek and perfectly balanced, the T3 is also infinitely flexible and expandable.
The T3 takes complete control of the home theater, replacing all other remotes. It features a bright, high-contrast TFT LCD that can display custom buttons, text, graphics, and animations. In addition to the backlit display, there are 16 hard buttons that allow easy access to frequently used functions.
The T3 is more than just a universal remote control - it's an expandable control system. When used with the available RTI accessory devices, the T3 is capable of RF transmission through walls and cabinets, power sensing for reliable operation, and RS-232 communications for advanced control.
NOTE: For RF control, a 433MHz antenna must be used with this model of remote. It is not compatible with the ZM-24 2.4 GHz Transceiver Module.
- Ergonomic design permits effortless, one-handed operation
- Full color TFT LCD to display custom buttons, text, graphics, and animations
- Customizable sounds
- Integrated high-resolution touchscreen
- Powerful 32-bit, 200MHz XScale® processor
- 32MByte of Flash Memory
- Tilt switch can automatically turn on the backlight when picked up
- Extremely bright, backlit display and keypad
- Easy-to-use Windows® based software for programming and customization*
- Sixteen assignable/programmable keypad buttons
- Intuitive layout of keypad buttons for commonly used functions
- Transmits IR and RF (or both - on a single button or within a macro!)
- Optional RF receiver allows you to transmit through walls, cabinets, etc.
- Includes a Lithium-Ion Battery and a docking station
- Completely customizable, programmable and upgradeable
- Extremely wide IR transmitting frequency range
- Optional Voltage and Video sensing modules to monitor power status of equipment
- Optional interface for RS-232-controlled equipment
- Non-volatile Flash memory stores your system configuration even when power is not present
- Field upgradeable firmware
- USB Programming
Specifications
| Power | 3.6 VDC, 1200 mAh Lithium-Ion Battery Pack |
| Power Management | Automatic On/Off (tilt switch) |
| Infrared Control Range | 30 feet (9.1 meters) @ 60 degrees |
| Infrared Frequency Transmission Range | 15kHz - 460kHz |
| Radio Frequency Control Range | Up to 100 feet (30.5 meters) (with optional System Interfaces/Processors) |
| Radio Frequency Carrier | 433 MHz |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% Non-condensing |
| Touchscreen Display | High-brightness color TFT LCD 1/4 VGA (240x320 pixels) with 65K colors Integrated high-resolution touchscreen |
| Display Size | 3.5 in (89mm) diagonal |
| Backlights | White LED (Display), Blue/Amber LED (Keypad) |
| Nominal Run Time on Full Charge | 2.5 hours minimum, continuous use (5 to 7 days on average use) |
| Standby Time on Full Charge | 30 Days |
| Battery Charge Time | 3-4 Hours |
| Total System Memory | 32M Bytes Flash (non-volatile) memory |
| Device Capability | Total number of devices is limited only by memory |
| Macro Capability | Unlimited steps in a single macro Total number of macros is limited only by memory Macro capability on every button |
| Communications | USB programming port |
| Dimensions (L x W x D) | 7.6 in (193mm) x 3.1 in (79mm) x 1.1 in (28mm) |
| Enclosure | High-impact molded ABS plastic |
| Weight | 7.4 oz. (210g) with battery pack |
| Warranty | One Year (Parts & Labor) 90 days on the battery |
All specifications subject to change without notice.
