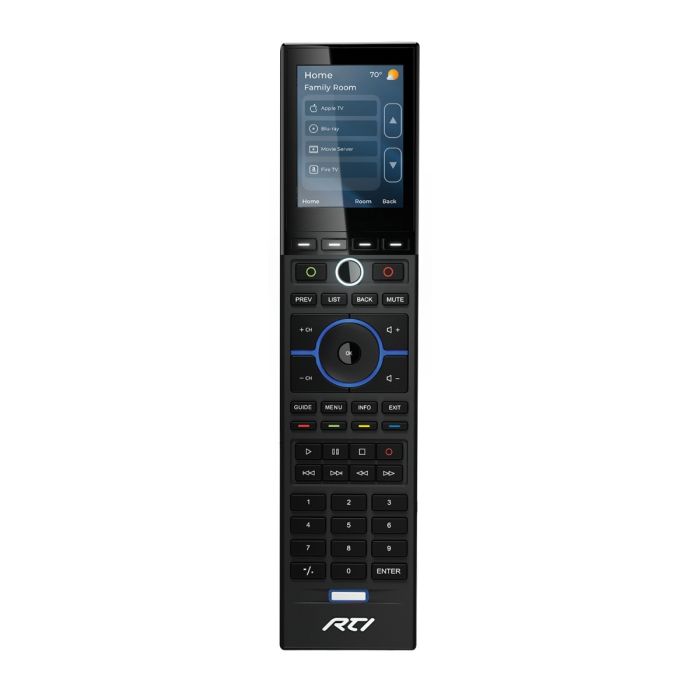

T2i Remote Control

The T2i brings customers a thin, sleek, ergonomically designed controller. The remote's innovative features includes an accelerometer for rapid "instant-on" control, a flush-mount 2.8-inch edge-to-edge LCD touchscreen, a cursor button for simple list navigation, and a backlit keypad for continued control within darker settings. For even further simplicity and convenience, the T2i provides 47 programmable keypad buttons including four buttons with removable keycaps that can be custom engraved using the RTI Laser Shark service.

For the ultimate in reliability, the T2i includes two built-in wireless modes. In addition to direct IR control with a wide IR transmitting frequency range, the remote features RTI's revolutionary dual-RF platform - supporting both 433-MHz RF for one-way control and 2.4-GHz ZigBee® for bi-directional communication with RTI processors and supported third-party electronics such as music servers, lighting and HVAC systems, and many more. During downtime, the T2i handily slides into a minimalist docking station, which features a connector for an even more reliable charging process

*Feedback requires a compatible two-way RTI control processor.
*Integration Designer software only available to authorized RTI dealers.

Included in the box:
T2i, docking station, power supply (5V, 2A), interchangeable keycap kit (8 keycaps)


T2i Features

Touch Screen
The customizable graphical user interface allows for intuitive touch screen control.

2-Way
Get status feedback from controlled devices on your remote such as on/off or arm/disarm status, dimming value of lights, music playlists, available radio stations.

Zigbee
Standard wireless Zigbee IEEE802.15.4 connection for bidirectional control communication with RTI processors.

RF 433 MHz
Wireless unidirectional RF communication on the 433 MHz band for control communication with RTI processors.

Infrared
Control devices directly without a control processor.

Hard Buttons
48 Hard Buttons provide quick access to often used control functions such as lights, music, audio/video source selection without the need to navigate through the graphical interface on your touchpanel.

Laser Shark
Customize the button labels with text or graphics.

Accelerometer
Pick up your remote and the accelerometer automatically wakes the touchscreen.

Ambient Light Sensor
Enjoy the perfect display brightness that’s automatically set depending on the ambient light.

Lithium Ion Battery / Charging Cradle
Your remote can operate 5 to 7 days on average use. Charge it conveniently with the included charging cradle.

  • Dual RF transmission capability uses 433MHz and 2.4GHz (utilizing Zigbee® technology).
  • Two-way control using 2.4GHz (Zigbee®) and RTI control components.
  • Flush mount, edge-to-edge touchscreen.
  • Accelerometer provides "instant-on" control.
  • Transmits IR and RF (or both - on a single button press!).
  • Extremely wide IR transmitting frequency range.
  • Greatly improved power management and battery charging.
  • Thinner, sleeker and more ergonomic design.
  • Forty-seven assignable/programmable keypad buttons.
  • Cursor button allows simple scrolling list navigation.
  • System includes a Lithium-Ion battery and docking station.
  • Completely customizable and programmable.
  • Non-volatile Flash memory stores your system configuration even when power is not present.
Power 3.6 VDC, 900 mAh Lithium-Ion Battery Pack
Power Management Automatic On/Off (integrated accelerometer)
Infrared Control Range 30 feet (9.1 meters) @ 60 degrees
Infrared Frequency Transmission Range 15kHz - 460kHz
Radio Frequency Control Range Up to 100 feet (30.5 meters) (with optional System Interfaces/Processors)
Radio Frequency Carrier 802.15.4 @ 2.4GHz (Zigbee® Wireless Networking) and 433MHz
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Touchscreen Display High-brightness color TFT LCD
1/4 VGA (240x320 pixels) with 64K colors
Integrated high-resolution touchscreen
Display Size 2.8 in (71mm) diagonal
Backlights Blue/White LED (Keypad)
Nominal Run Time on Full Charge 4-6 hours, continuous use (WiFi & backlight setting dependent) (5 to 7 days on average use)
Standby Time on Full Charge 30 Days
Battery Charge Time 3-4 Hours
Total System Memory 32M Bytes Flash (non-volatile) memory
Device Capability Total number of devices is limited only by memory
Macro Capability Unlimited steps in a single macro
Total number of macros is limited only by memory
Macro capability on every button
Communications USB 2.0 programming port
Dimensions (L x W x D) 10.0" (254mm) x 2.3" (58mm) x 0.7" (20mm)
Enclosure High-impact molded ABS plastic
Weight 8.8 oz. (250g) with battery pack
Warranty Three Years (Parts & Labor) / One year on the battery
Prop 65 Warning WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

All specifications subject to change without notice
* Two-way feedback available only when used with RTI control components.
