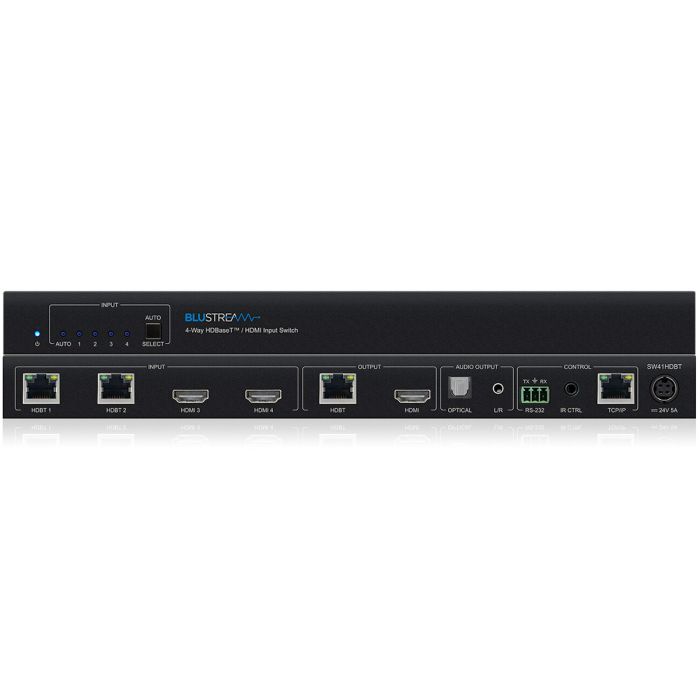

SW41HDBT - 4-Way HDBaseT / HDMI® Input Switch

Features 2 x HDMI 2.0 and 2 x HDBaseT inputs which can be switched to simultaneous HDBaseT and HDMI outputs

Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable

Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR

Automatic downscaling of up to 4K 60Hz 4:4:4 video input to 4K 30Hz 4:4:4/4K 60Hz 4:2:0 or 1080p on HDBaseT

HDBaseT input supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0), HDBaseT output supports 4K UHD video up to 40m (3840 x 2160 @60Hz 4:4:4) with compatible CSC receiver*

Extends HDMI 1080p up to a distance of 70m from Transmitter to SW41HDBT, and up to 70m from SW41HDBT to Receiver

Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

Supports PoC when used with compatible 12V HDBaseT transmitters and receivers*

Compatible with all Blustream HDBaseT transmitters and receivers*

Audio breakout to analog L/R audio and Toslink (S/PDIF) digital outputs concurrently

Web interface module for configuration and control of switch

Manual or auto source selection with control via front panel, IR, RS-232 and TCP/IP

Auto source selection supported by compatible Blustream HDBaseT transmitters only*

HDCP 2.2 compliant with advanced EDID management

* Technical performance is subject to the features supported on the connected HDBaseT transmitter / receiver
