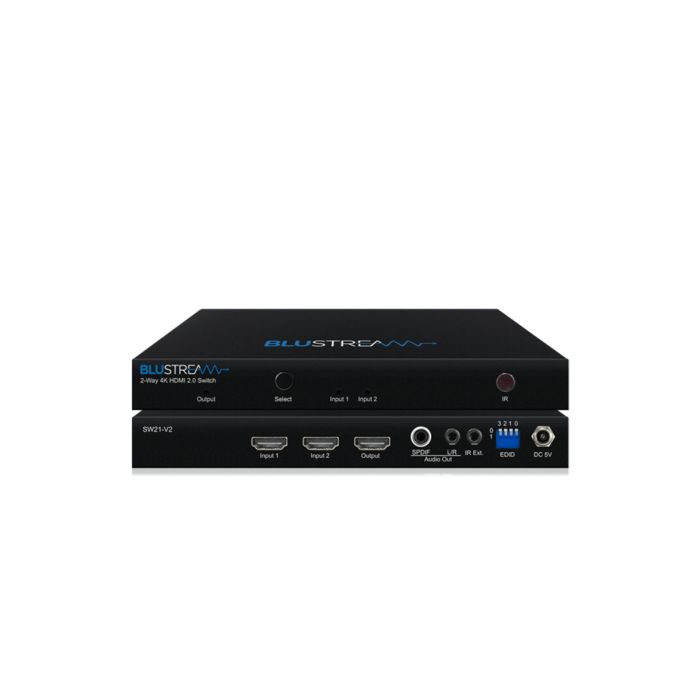

SW21AB-V2 - 2-Way 4K HDMI® Switch

Our SW21AB-V2 is a 2-Way HDMI® switch with integrated audio breakout. The switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

Box Contents

1 x SW21AB-V2
1 x SW21 Remote
1 x 5V/2A DC Power Supply
1 x User Manual

Details

Features 2 x HDMI inputs which can be switched to a single HDMI output
Auto-switching (HPD sensing) capabilities can be enabled / disabled*
Supports full HDMI 2.0 specification 4K UHD video (4K @ 60Hz 4:4:4)
HDCP 2.2 compliant
Supports 3D signal display
Supports CEC bypass (Consumer Electronics Control)
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently
Control via front panel and IR (remote control included)
Advanced EDID management

*Auto switching only available on units with serial no. 70522400001 or above

Key Features

Specification

Video Input Connectors: 2 x HDMI Type A
Video Output Connectors: 1 x HDMI Type A
Audio Output Connectors: 1 x RCA (SPDIF) & 1 x analog audio L/R (3.5mm stereo jack)
IR Input Ports: 1 x 3.5mm stereo jack
Product Dimensions (W x D x H): 196 x 104 x 32mm (with connections)
Product Dimensions (W x D x H): 196 x 94 x 23mm (without connections)
Product Weight: 0.45kg (excluding accessories)
Carton / Box Dimensions (W x D x H): 295 x 155 x 80mm
Shipping Weight: 0.8kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: 5V/2A DC
