SRTK-2 - New Dealer Training Kit
The SRTK-2 Single Room Training Kit is designed for integrators getting started with RTI.
The kit delivers exceptional control and automation of AV and music streaming in a media room or similar environment, and the system can expand to control lighting, climate, security, and more.
The SRTK-2 kit combines the power of the XP-3 control processor and the streaming convenience of the MS-1 Music Streamer with the vibrant, fully customizable graphical interface on Apple or Android smartphones and tablets (with the included RTiPanel unlimited license).
And since this in an introduction to RTI, the Kit also includes some RTI-branded "welcome" accessories (cap, tumbler, laser pen).

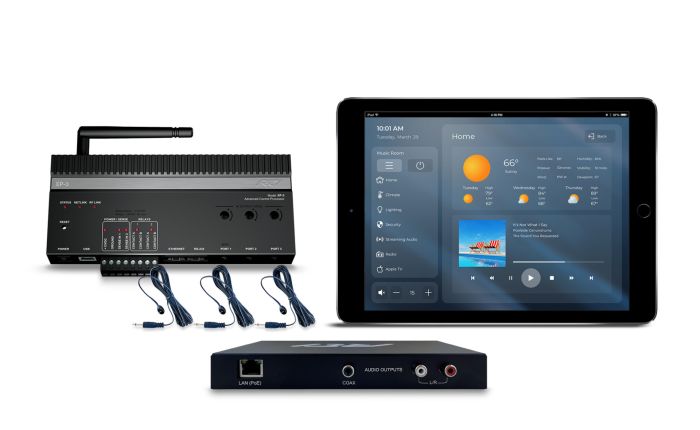

Included in the box:
1 x XP-3 Advanced Control Processor
1 x MS-1 Music Streamer
1 x XP RTiPanel Unlimited User License
3 x vIRsa Mouse Infrared Emitter
1 x RTI Cap
1 x RTI Insulated Tumbler
1 x RTI Laser Pen
- Training Kit for new dealers, synchonized with the RTIEXCEL C101 - New Dealer Authorization Training.
- All-in-one control and audio streaming solution.
- Robust XP-3 processor with Ethernet, RS-232, Infrared, Relay, I/O and Voltage Sensing ports.
- MS-1 Music Streamer with analog and digital audio output.
- Reliable two-way control communication via Zigbee.
- Licensed RTiPanel App allows control with iOS or Android smartphones and tablets.
- Fully customizable graphical user interface.
- Fully programmable through the Integration Designer programming platform
- Kit comes with "Welcome to RTI" Items: RTI Cap, an RTI Insulated Tumbler, and an RTI Laser Pen. (Item selection subject to change.)
- All-in-one control and audio streaming solution.
- Used in the RTI New Dealer Authorization Training.
- XP-3 processor with Ethernet, RS-232, Infrared, Relay, I/O and Voltage Sensing ports.
- MS-1 Music Streamer with analog and digital audio output.
- Reliable two-way control communication via Zigbee.
- Licensed RTiPanel App allows control with iOS or Android smartphones and tablets.
- Fully customizable graphical user interface.
- Fully programmable through the Integration Designer programming platform
XP-3 Control Processor
| Power | +12VDC, 1A |
| Wireless Networking | IEEE802.15.4 Zigbee network compliant |
| RF Frequency Range | 2.4GHz - 2.5GHz |
| Multi-Purpose Output Ports | One custom 3.5mm 4-conductor jack (port 1) Designed for RTI modules as well as industry-standard IR emitters |
| IR Output Ports | Two, 3.5mm jack (ports 2 & 3) Compatible with industry-standard IR emitters |
| IR Output Drive | 100mA maximum (per port, adjustable) |
| Infrared Frequency Range | 15 KHz - 460 KHz |
| Infrared Input | Compatible with industry-standard repeaters and receivers |
| Relays | Two, 5 amps @ 30VDC |
| Sense Inputs | Two, 3-24VDC |
| RS232 Ports | One, Bi-directional RJ45 Connections |
| Ethernet Port | One, 10/100Base-T with PoE (Class 3) |
| USB Ports | One, Programming |
| RAM Memory | 64MB |
| Flash Memory | 128MB |
| Mounting | Wall-mount or free standing |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% Non-condensing |
| Dimensions (W x H x D) | 7.0 in (175mm) x 3.0 in (76mm) x 1.0 in (25mm) |
| Weight | .4lbs (212g) |
| Warranty | Three Years (Parts & Labor) |
| Prop 65 Warning | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
MS-1 Music Streamer
| Power Supply | PoE (802.3af) |
| Mounting | Free-Standing or Rack Mount with optional Rack-Mount Kit RM-4VIP2 |
| Dimensions WxDxH | 7.5in(190.5mm) x 4.75in(120.7mm) x 1in(25.4mm) |
| Weight | 1.47lbs (670g) |
| Audio Output | 1 x RCA L/R analog audio 1 x RCA Digital Coaxial |
| Digital-to-Analog Conversion | Hi-Res 24-bit/192kHz |
| Sample Rates | 44.1kHz -192kHz |
| Ethernet Port | 1 x LAN RJ45 Connector 10/100Mbps |
| Control | IP |
| Operating Temperature | +45 to + 122°F / 7 to + 50°C |
| Operating Humidity | 5% to 95% Non-condensing |
| Warranty | Three Years (Parts & Labor) |
| Prop 65 Warning | WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
All specifications subject to change without notice
* Two-way feedback available only when used with RTI control components.
** Grip sensors and accelerometer cannot be used simultaneously.
