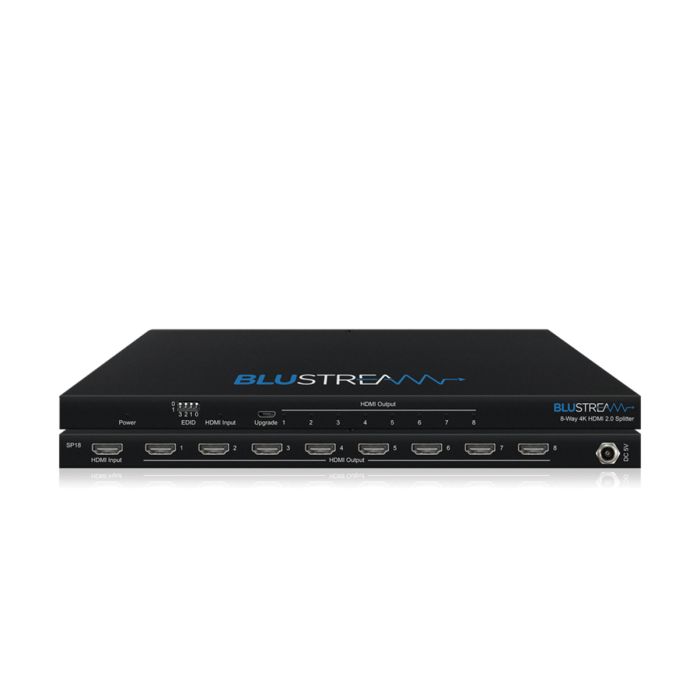

SP18 - 8-Way 4K HDMI® Splitter

Find a Dealer

Our SP18 4K HDMI® 2.0 splitter distributes a single HDMI source to 8 simultaneous outputs. The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

Box Contents

1 x SP18
1 x 5V/4A DC Power Supply
1 x Quick Reference Guide

  • Features 1 x HDMI input that is replicated to 8 x HDMI outputs

  • Supports HDMI 2.0 18Gbps specification including HDR

  • Supports up to 4K UHD 60Hz 4:4:4

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

  • Advanced EDID management

  • HDCP 2.2 support

Key Features

  • Video Input Connectors: 1 x HDMI Type A

  • Video Output Connectors: 8 x HDMI Type A

  • EDID: 4-pin DIP switch

  • Dimensions (W x D x H): 273mm x 109mm x 13mm

  • Shipping Weight: 0.7kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 5V/4A DC
