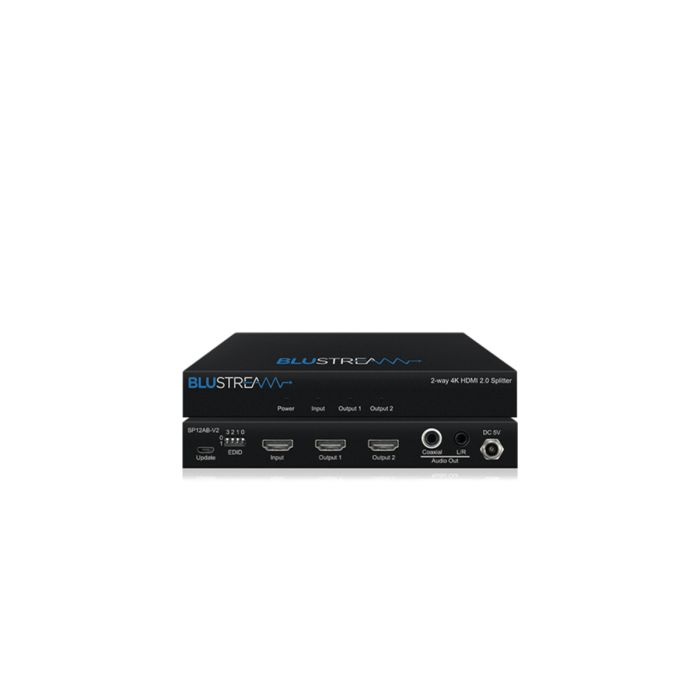

main product photo

SP12AB-V2 - 2-Way 4K HDMI® Splitter

Find a Dealer

Our SP12AB-V2 4K HDMI 2.0 splitter distributes a single HDMI source to 2 simultaneous outputs. The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

Box Contents

1 x SP12AB-V2
1 x 5V/1A DC Power Supply
1 x Quick Reference Guide



  • Features 1 x HDMI input that is replicated to 2 x HDMI outputs

  • Supports HDMI 2.0 18Gbps specification including HDR

  • Supports up to 4K UHD 60Hz 4:4:4

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

  • HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently

  • Advanced EDID management

  • HDCP 2.2 support

Key Features

  • Video Input Connectors: 1 x HDMI Type A

  • Video Output Connectors: 2 x HDMI Type A

  • EDID: 4-pin DIP switch

  • Audio Output Connectors: 1 x RCA (SPDIF), 1 x Analog audio L/R (3.5mm stereo Jack)

  • Dimensions (W x D x H): 159mm x 64mm x 23mm , without feet

  • Shipping Weight: 0.6kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 5V/1A DC
