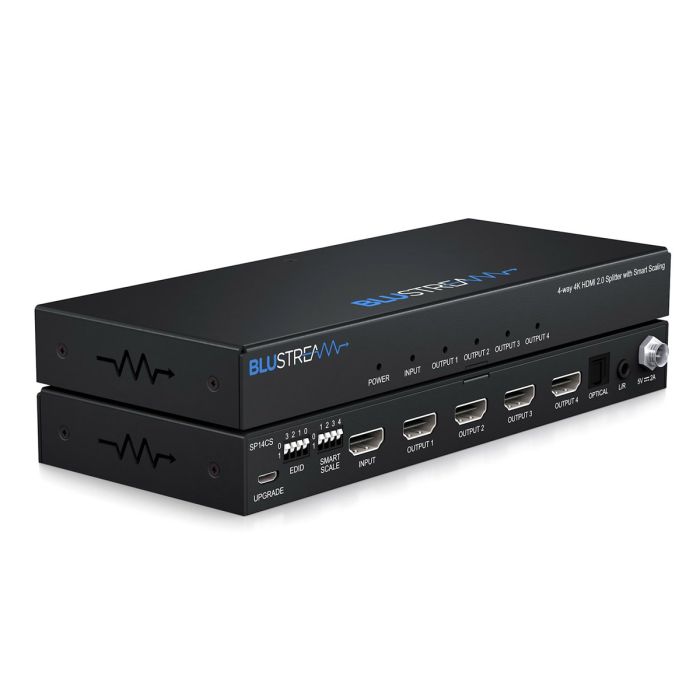

SP14CS - 4-Way 4K HDMI® 2.0 HDCP 2.2 Splitter

Find a Dealer

The SP14CS 4K HDMI® 2.0 splitter distributes a single HDMI® source to four simultaneous outputs with both digital (S/PDIF) and analog audio breakout.

The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4 with automatic video down conversion on each output.

Box Contents

1x SP14CS
1x 5V/2A DC power supply
1x Mounting Kit
1x Quick Reference Guide



  • Features 1x HDMI input that is replicated to 4x HDMI outputs

  • Supports HDMI 2.0 18Gbps specification including HDR

  • Supports up to 4K UHD 60Hz 4:4:4

  • Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

  • HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently

  • Advanced EDID management

  • HDCP 2.2 support

Key Features

  • Features 1x HDMI® input that is replicated to 4x HDMI outputs

  • Supports HDMI 2.0 18Gbps specification including HDR

  • Supports up to 4K UHD 60Hz 4:4:4

  • Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

  • HDMI audio breakout to analog L/R audio and optical digital outputs concurrently

  • Advanced EDID management

  • HDCP 2.2 Support

  • Video Input Connectors: 1x HDMI® Type A

  • Video Output Connectors: 4x HDMI® Type A

  • EDID: 4-PIN DIP switch

  • Smart Scale: 4-PIN DIP switch

  • Audio Output Connectors: 1x Digital (Optical), 1x Analog audio L/R (3.5mm stereo Jack)

  • Dimensions (W x D x H): 203mm x 84mm x 23mm , without feet

  • Shipping Weight: 0.8kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 5V/2A DC
