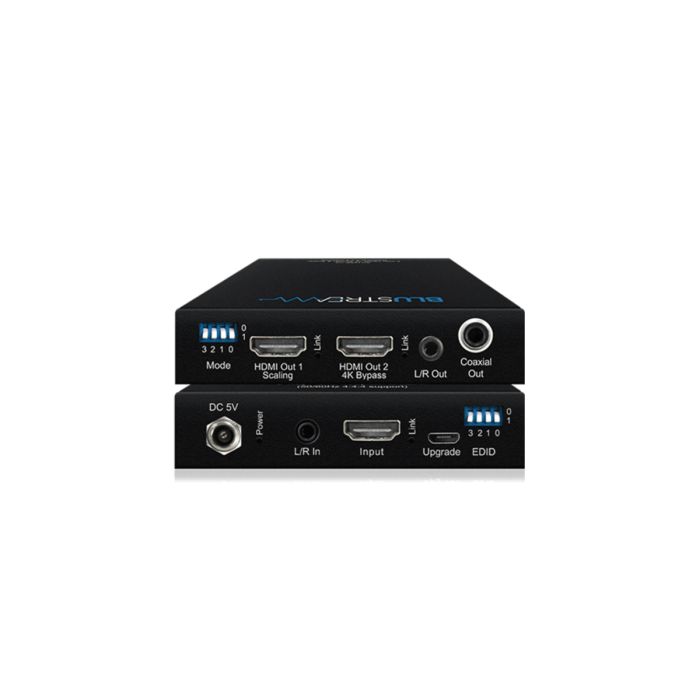

SC12SP-V2 - HDMI® Splitter with in-built Video Down-scaler

Find a Dealer

The Blustream SC12SP-V2 is a 4K HDMI® 2.0 splitter with in-built scaler, designed for installations in which a single 4K video source needs to be distributed to multiple displays that support different maximum video resolutions.

The SC12SP-V2 supports downscaling of up to 4K @ 60Hz 4:4:4 video to various lower resolution video formats.

The SC12SP-V2 also includes audio breakout, advanced EDID management and supports HDCP 2.2.

Box Contents

1 x SC12SP-V2
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x Quick Reference Guide

  • Features 1 x HDMI input that is replicated to 2 x HDMI outputs

  • Supports HDMI 2.0 18Gbps specification including HDR

  • Supports up to 4K UHD 60Hz 4:4:4

  • HDMI output 2 supports 4K UHD video pass-through

  • HDMI output 1 will down-scale the video input to the following formats:

    - 1080p @ 24/25/30/50/60Hz* (for screens that do not support 4K)

    - 4K 50/60Hz 4:2:0 (for screens that do not support full 4K @ 60Hz 4:4:4)

  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD

  • Master Audio transmission

  • HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently

  • Advanced EDID management

  • HDCP 2.2 support

    * Frame rate will always match the input signal

Key Features

  • Video-Input Connectors: 1 x HDMI Type A, 19-pin, female

  • Video Output Connectors: 2 x HDMI Type A, 19-pin, female

  • Audio Output Connectors: 1 x RCA (S/PDIF), 1 x 3.5mm stereo jack (L/R)

  • EDID: 4-pin DIP switch

  • Product upgrade: 1 x 3-pin Phoenix connector & 1 x Type A USB female

  • Dimensions (W x H x D): 122mm x 23mm x 135mm

  • Shipping Weight: 0.8kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 5V/1A DC
