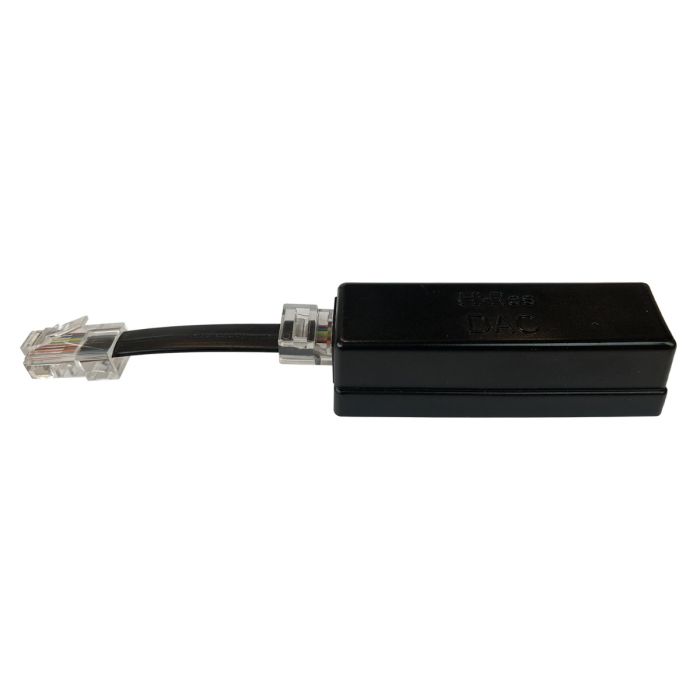

RSO-1 Digital to Analog Audio Converter

This product is discontinued.

The RSO-1 makes it simple to deliver optical digital audio from
devices such as Blu-ray players, media streamers or TVs to an RTI AD-4x/AD-8x/AD-16x distributed audio system.

Details

Key Features

Converts your Optical Digital signal up to 24bit/192kHz into High Resolution Superb S/N ratio and sound quality Stereo Audio signals.
24 bit 192kHz Hi-Res Stereo DAC with 2Vrms ground referenced outputs.
Supports all common audio supplying rates between 8kHz and 192kHz using all common MCLK fs rates.
Proprietary designed Advanced jitter attenuating PLL with low intrinsic period jitter of 50 ps RMS.
Plug & Play Module.
Frequency Response 20 ~ 20kHz + - 0.2dB
S/N ratio up to 105dB A weighted
Super linear by design down to + - 0.5dB and down to – 90dB level for superb sound quality at low level.

Specification

0dB Output Level (Ref to full scale)	2 Volts (rms)
Output Impedance	56 Ohm
Frequency Response 20Hz - 20kHz	+/- 0.2dB
Signal to Noise Ratio (A-weighted) 20Hz - 20kHz	105dB
THD @ 0dB THD @ -10db	0.017% 0.007%
Separation (1 KHz)	95dB
Dynamic Range	100dB
Linearity down to -90dB	+/- 0.5dB
Dimensions (LxWxD)	2.83” (72mm) x 0.94” (24mm) x 0.86” (22mm)
Weight	0.6oz (71g)
Warranty	Three Years (parts & labor)

All features and specifications subject to change without notice.
