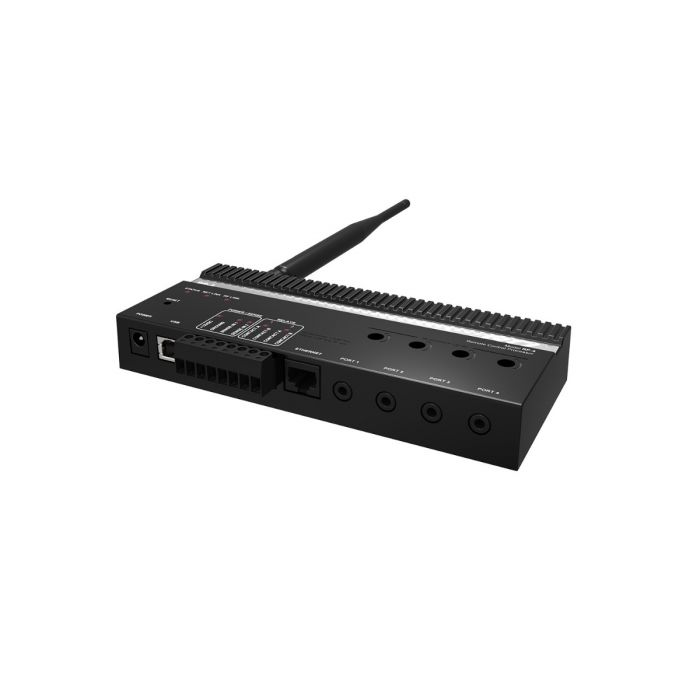

RP-4 RF Control Processor
The RP-4 is an excellent solution for cost-effective control o A/V and other electronic systems in single room installations such as home theaters, media centers, and bedrooms. With the RP-4, A/V components and other equipment can be hidden away in a closet for a clean, professional look.

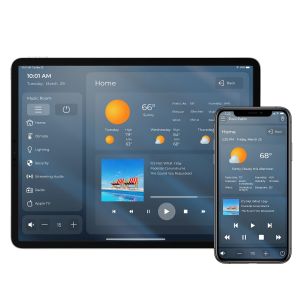

The RP-4 features an integrated 433-MHz RF receiver, IR control, voltage sense inputs, and relays, all in one compact package. Perfect for use with any RTI 433-MHz wireless interface, the processor also supports one-way control via the RTiPanel app*, allowing users to incorporate their iPhones and iPads easily into the control system. The processor stores all system commands and macros for rock-solid reliability, providing a powerful alternative to IR repeater systems which can suffer from inconsistent performance.
*Note: RP-4 supports RTiPanel app for Apple iOS devices only
Integration Designer software only available to authorized RTI dealers.
Included in the box:
RP-4, power supply (12V, 1A), antenna
mounting plate, screws and drywall anchors (4)
Infrared
Four (4) control ports for 2-wire connection to infrared emitters, blasters and repeaters.
Relay
Two (2) built-in low voltage dry contacts that provide contact closure or switching control for loads up to 5A/30VDC (external power supply required).
Sense Input
Two (2) inputs that sense contact closure from switches, windows or doors or voltage state from a voltage sensor to trigger a programmed control command or macro.
Ethernet
Standard 10/100 BaseT network connection for programming and one-way control via the RTiPanel App on Apple iOS devices.
RF 433 MHz
Wireless RF communication on the 433 MHz band for unidirectional control communication with RTI remotes.
• Stores all system commands and macros for reliable control.
• Integrated 433MHz RF antenna.
• Supports RTiPanel App for one-way control via smart phones and tablets.*
• Four infrared ports with routing and output adjustment.
• Infrared ports compatible with standard IR emitters and IR expansion devices.
• Two power sensing inputs for monitoring equipment status.
• Two relays provide contact closure for TV lifts, shades, projection screens etc.
• Works with all RTI 433MHz wireless remotes.**
• RF signal reception and Ethernet activity LEDs.
• Simple, efficient programming using Integration Designer® software.
• Install free-standing or wall mount using included mounting bracket.
• Non-volatile Flash memory stores configuration even when power is not present.
• USB and Ethernet programming.
INSTALLATION NOTES:
• The RP-4 does not support RTI wired interfaces (In-wall touchpanels, keypads, etc).
• RP-4 is not compatible with RM-433 433MHz RF antennas and ZM-24 Zigbee® transceivers.
• The RP-4 supports one-way control via the RTiPanel App on Apple iOS® devices only (Android devices and Virtual Panel are NOT supported).
• If an RTiPanel device is in the Integration Designer system file, the computer used to download to the RP-4 must have an Internet connection.
| Power Supply | +12V DC, 1A |
| IR Output Ports | Four (4), 3.5 mm jacks |
| IR Output Drive | 100mA maximum (per port, adjustable) |
| Infrared Transmission Bandwidth | 15kHz - 460kHz |
| Ethernet Port | One, RJ45 Connection, 10/100Base-T |
| Relays | Two, +30VDC, 5A max |
| Sense Inputs | Two, 3-24VDC |
| RF Receiver Carrier Frequency | 433 MHz |
| Mounting | Wall-mount or free standing |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% Non-condensing |
| Dimensions (W x H x D) | 7.0" (175mm) x 3.0" (76mm) x 1.0" (25mm) (does not include antenna or connectors) |
| Weight | 6.7 oz. (190g) |
| Warranty | Three Years (Parts & Labor) |
| Prop 65 Warning | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
INSTALLATION NOTES:
• The RP-4 does not support RTI wired interfaces (In-wall touchpanels, keypads, etc).
• RP-4 is not compatible with RM-433 433MHz RF antennas and ZM-24 Zigbee® transceivers.
• The RP-4 supports one-way control via the RTiPanel App on Apple iOS® devices only
(Android devices and Virtual Panel are NOT supported).
• If an RTiPanel device is in the Integration Designer system file, the computer used to download to the RP-4 must have an Internet connection.
