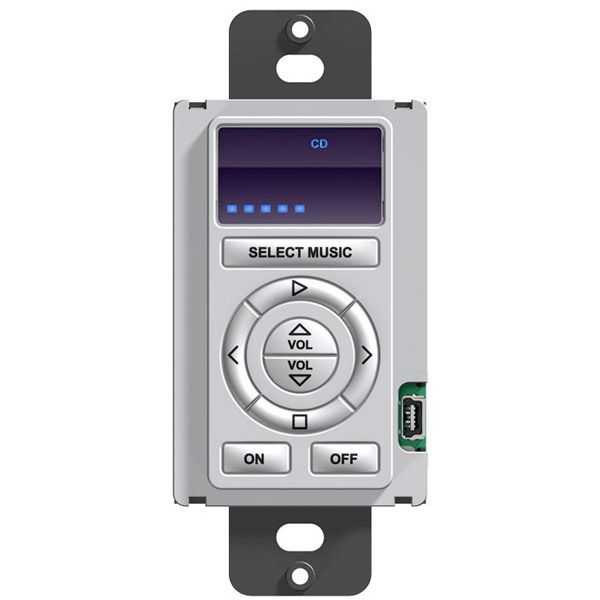

RKM-1 In-Wall Audio Distribution Keypad
This model has been discontinued - See the RKM1+
The RKM-1 is a simple, intuitive keypad designed for flush-mount installations in walls or cabinets. Designed for multi-room audio control, the RKM-1’s open architecture provides the flexibility to control almost any multi-zone receiver or distributed audio system. Sized for a single gang electrical box, the RKM-1 incorporates eight fully-programmable hard buttons and a customizable LED film which provides feedback of power status, selected source, and volume level.
Perfect for multi-room audio control, the RKM-1 is designed to have a clean, elegant style. It fits into a single gang electrical box, ensuring seamless integration into most homes and buildings. Using the available software drivers from RTI, the RKM-1 can communicate bidirectionally with many popular multi-zone receivers when used together with two-way compatible RTI Control Processors (MRP64, ZRP6, XP8).
The RKM-1 can directly control almost any audio/video component up to 1000 feet away using its infrared output port. When used with the available RTI automation devices, the RKM-1 is capable of infrared routing, relay control, power sensing and RS-232 communications for advanced control. Programming is easy and convenient thanks to the Windows® based Integration Designer software.
*Integration Designer software only available to authorized RTI dealers.
- Provides feedback from multi-zone receivers via two-way compatible RTI Control Processors.
- Use any standard Decora® type faceplate.
- Fits in single gang electrical box.
- Eight selectable sources.
- Backlit volume level indicator.
- Open architecture allows control of virtually any audio/video component.
- Non-volatile Flash memory stores your system configuration even when power is lost.
- IR output port drives up to 1000 feet of wire for standalone control.
- Optional modules for voltage and video sensing (to monitor power status of equipment).
- Optional RTI accessory modules enable RS-232 control.
- Field upgradable firmware.
- USB Programming.
| Power | +9VDC to +16VDC, 350mA max |
| Backlights | Blue LED - Eight sources Blue LED - Nine volume level indicators |
| Infrared Output Port |
200 mA output |
| Operating Humidity | 5% to 95% Non-condensing |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Total System Memory | 64k Bytes Flash (non-volatile) memory |
| Device Capability | Total number of devices is limited only by memory |
| Macro Capability | Unlimited steps in a single macro Total number of macros is limited only by memory Macro capability on every button |
| Communications | USB programming port |
| Enclosure | Formed steel, black powder coat |
| Front Plate | High-impact molded ABS plastic, white |
| Mounting | Mounts into single gang box |
| Bezel Dimensions | Purchased separately (Decora Type) |
| Dimensions (H x W x D) | 4.1 in (104mm) x 1.8in (46mm) x 1.0 in (25mm) |
| Installation Cut-Out (H x W) | 2.8 in (71mm) x 1.8in (46mm) |
| Total Depth in Wall | .75 in (19mm) Plus Cables |
| Weight | 4 oz (284 g) |
| Warranty | One Year (Parts & Labor) |
All specifications subject to change without notice.
Decora is a registered trademark of Leviton Manufacturing Co. Inc.
