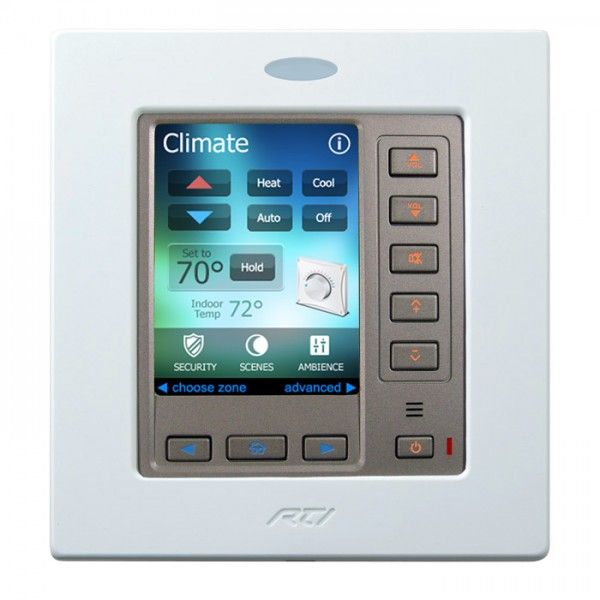

RK3 In-Wall Universal Controller
This model discontinued
The RK3 is a compact color LCD touchpanel designed for flush-mount installations in walls or cabinets. It provides a self-contained control system for controlling audio/video components, lights, or other electronic systems in the home. It also displays digital video (motion JPEG) and web pages - either full screen or in an adjustable window.
The RK3 provides elegant and intuitive control of a home's entertainment, environment, security, and information systems. It is the only compact in-wall touchpanel that provides both direct infrared control and 10/100Base-T Ethernet for IP control. In addition, the RK3 is unique because its graphical user interface (GUI) and programming are completely customizable. In any situation, from simple to complex, the RK3 provides the perfect level of control.
*Integration Designer software only available to authorized RTI dealers.
The RK3 is an advanced universal system controller that mounts in a wall. Its design maintains the perfect balance between display size and resolution. At 3.5 inches the LCD is small enough to blend into a room's interior, yet it provides the necessary resolution for displaying graphics such as digital photos, web pages, and CD cover artwork. The RK3 interface is fully programmable using RTI's Integration Designer software*, making it easy to display custom buttons, text, graphics, and animations.
The RK3 can directly control almost any audio/video component or lighting system up to 1000 feet away using its infrared output port. In addition, the built-in Ethernet port allows the RK3 to display video from network security cameras, access the Internet, view and play songs stored on hard drive music servers, and control other devices on the network.
The RK3 can be used as a stand-alone device or as part of an expandable central control system. When used with the available RTI accessory devices, the RK3 is capable of infrared routing, relay control, power sensing, and RS-232 communications for advanced control.
*Integration Designer software only available to authorized RTI dealers.
- Stylish low-profile faceplate with snap-on attachment.
- Integrated mounting wings for easy installation.
- Full color TFT LCD to display custom buttons, text, graphics, and animations.
- Customizable sounds.
- Integrated 10/100Base-T Ethernet port with Power-over-Ethernet.
- Plasma friendly infrared receiver for command pass-through.
- IR output port drives up to 1000 feet of wire.
- Two power status input ports.
- Integrated high-resolution touchscreen.
- Powerful 32-bit, 200MHz XScale® processor
- 32MByte of Flash Memory.
- Extremely bright, backlit display and keys with adjustable brightness.
- Nine assignable/programmable keys.
- Completely customizable, programmable and upgradeable.
- Non-volatile Flash memory stores your system configuration even when power is lost.
- Easy-to-use Windows® based software for programming and customization*
- Field upgradeable firmware.
- USB and Ethernet Programming.
| Power | +9VDC to +16VDC, .5A max or 802.3af Power-over-Ethernet |
| Power Management | Adjustable backlight brightness/power down time |
| Touchscreen Display | High-brightness color TFT LCD 1/4 VGA (240x320 pixels) with 65K colors Integrated high-resolution resistive touchscreen |
| Display Size (H x W) | 3.5 in (89mm) diagonal |
| Backlights | White LED (Display), Blue/Amber LED (Keypad) |
| Infrared Output Port | 200mA output Drives up to 1000 ft (300 m) of wire |
| Ethernet Port | 10/100Base-T with Power-over-Ethernet |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% Non-condensing |
| Total System Memory | 32M Bytes Flash (non-volatile) memory |
| Device Capability | Total number of devices is limited only by memory |
| Macro Capability | Unlimited steps in a single macro Total number of macros is limited only by memory Macro capability on every button |
| Communications | USB programming port |
| Enclosure | High-impact molded ABS plastic, black |
| Front Plate | High-impact molded ABS plastic, white |
| Mounting | Integrated mounting wings, or screws through front bezel |
| Front Plate Dimensions (H x W) | 5 3/4 in (146mm) x 5 1/2 in (140mm) |
| Installation Cut-Out (H x W) | 5 1/8 in (130mm) x 4 3/4 in (120mm) |
| Total Depth in Wall | 1 1/8 in (29mm) plus cables |
| Weight | 10 oz (284 g) |
| Warranty | Three Year (Parts & Labor) |
All specifications subject to change without notice.
