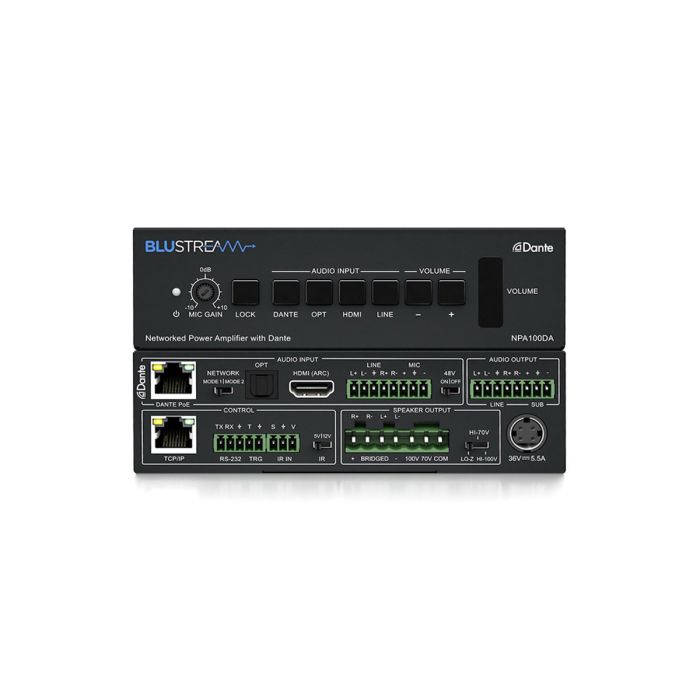

main product photo

NPA100DA - Networked Power Amplifier with Dante®

Add to Compare

Our NPA100DA networked audio zone amplifier delivers advanced audio integration within a commercial or residential AV installation.

The NPA100DA features a 2x 50W digital amplifier (1 x 100W mono) or 70V / 100V hi-level constant voltage output, dedicated LFE subwoofer output, Dante audio integration and 2ch balanced / un-balanced audio outputs.

The NPA100DA supports a variety of inputs including 2ch Dante audio, HDMI ARC, MIC audio with 48V Phantom power support, optical audio and 2ch balanced / un-balanced analog audio.

The NPA100DA can be powered via PoE++ from a compatible network switch, or locally should the switch not support PoE++. The unit also includes the ability to lower the amplifier power output subject to PoE capabilities, support for combined or independent LAN and Dante connections, DSP with a 10 band EQ, audio delay for lip sync correction, independent gain control for audio inputs and control via front panel, IR, RS-232, TCP/IP, Web Gui or 12v trigger.

Box Contents

1 x NPA100DA
1 x 36V/5.5A power supply
1 x Remote control
1 x IR receiver
1 x Rack mounting kit
1 x Wall / surface mounting Kit
4 x Rubber feet
1 x Quick reference guide

  • Advanced network audio amplifier with Dante integration

  • Supports 2 x 50W @ 4 / 8 ohm, 1 x 100W @ 4 / 8 ohm, or 70 / 100V constant output for multiple speakers with longer cable runs

  • Supports power via PoE++ on Dante LAN connection or via local power supply *

  • Dual network option - independent Dante and LAN control ports, or combined to a single LAN port

  • Audio inputs include:

         - 2ch Dante/AES67 audio input

         - HDMI ARC with CEC volume control

         - MIC audio input with phantom power and auto‐ducking

         - 2ch analog audio input – unbalanced & balanced

         - 1 x Optical (S/PDIF) audio input

  • Audio outputs include:

         - 2ch Dante/AES67 audio Output

         - 2ch variable/fixed analog output, balanced/un‐balanced

         - 1 x LFE subwoofer output

  • Independent gain control for input channels

  • DSP with 31 band EQ with +/-10dB gain and audio delay

  • Local 12V input trigger for automated power control

  • Control via front panel, IR, RS‐232 and IP

  • Auto standby mode with signal sensing

  • In‐built web-GUI for setup and control

Key Features

  • Advanced network audio amplifier with Dante integration

  • Supports 2 x 50W @ 4 / 8 ohm, 1 x 100W @ 4 / 8 ohm, or 70 / 100V constant output for multiple speakers with longer cable runs

  • Supports power via PoE++ on Dante LAN connection or via local power supply *

  • Dual network option - independent Dante and LAN control ports, or combined to a single LAN port

  • Audio inputs include:

         - 2ch Dante/AES67 audio input

         - HDMI ARC with CEC volume control

         - MIC audio input with phantom power and auto‐ducking

         - 2ch analog audio input – unbalanced & balanced

         - 1 x Optical (S/PDIF) audio input

  • Audio outputs include:

         - 2ch Dante/AES67 audio Output

         - 2ch variable/fixed analog output, balanced/un‐balanced

         - 1 x LFE subwoofer output

  • Independent gain control for input channels

  • DSP with 31 band EQ with +/-10dB gain and audio delay

  • Local 12V input trigger for automated power control

  • Control via front panel, IR, RS‐232 and IP

  • Auto standby mode with signal sensing

  • In‐built web-GUI for setup and control

  • Audio Inputs: 1 x 5-Pin Phoenix connector (analog), 1 x 3-Pin Phoenix connector (MIC), 1 x HDMI Type A, 19-pin, female, locking (ARC), 1 x Optical (S/PDIF)

  • Audio Outputs: 1 x 4-Pin Phoenix connector (4 / 8 ohm speaker), 1 x 3-Pin Phoenix connector (70 / 100v speaker), 1 x 5-Pin Phoenix Connector (analog audio), 1 x 2-Pin Phoenix connector (LFE subwoofer)

  • Ethernet Port: 1 x LAN RJ45 connector (Dante), 1 x LAN RJ45 connector (Network)

  • RS-232 Serial Port: 1 x 3-Pin Phoenix connector

  • IR Input: 1 x 3-Pin Phoenix connector

  • Trigger Input: 1 x 2-Pin Phoenix connector

  • 19" Rack mounting and wall/surface mounting kit included

  • Dimensions (W x D x H ): 250mm x 150mm x 45mm

  • Dimensions Including Connections (W x D x H ): 252mm x 150mm x 45mm

  • Shipping Weight: 2.8kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: PoE++ Type 4, 1 x 36V/5.5A DC
