MFP31 - Portable Multi-Format Presentation Switch

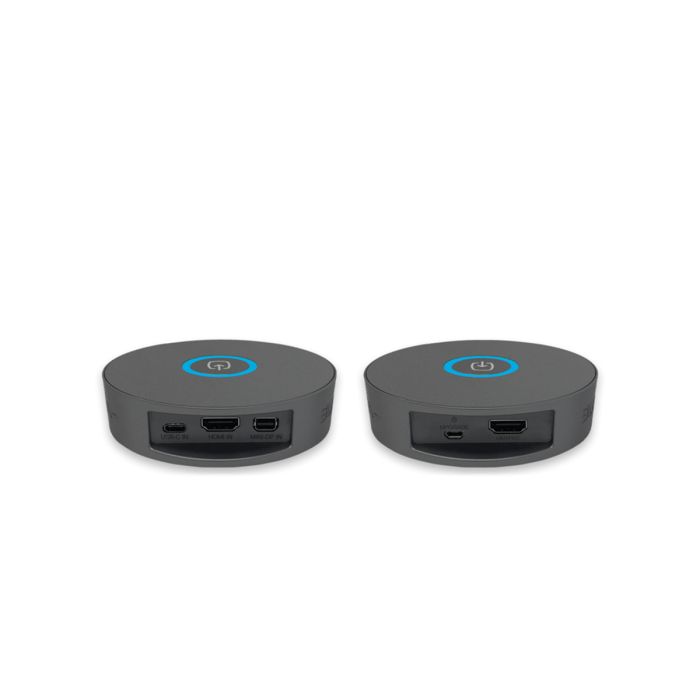

Our MFP31 is a portable multi-format presentation switch featuring HDMI, Mini DisplayPort and USB-C inputs to a single HDMI output, with manual or auto source selection.

The MFP31 supports HDMI® 2.0 18Gbps specification including pass-through of all formats of HDR and HDMI audio.

The MFP31 is an ideal product for your boardroom or hybrid working environment.

Box Contents

1 x MFP31
1 x 5V/1A DC Power Supply
1 x USB to Micro-USB Charging Cable
1 x Quick Reference Guide
1 x Cloth Bag

Details

Features 1 x HDMI, 1 x USB-C and 1x Mini DisplayPort input which can be switched to a single HDMI output
Supports HDMI 2.0 18Gbps specification including HDR
Supports resolutions up to 4K UHD 60Hz 4:4:4
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Supports Mini DisplayPort up to 4K UHD 60Hz 4:4:4, DP1.2
Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2
Supports both manual or automatic source selection
HDCP 2.2 compliant

Key Features

Features 1 x HDMI, 1 x USB-C and 1x Mini DisplayPort input which can be switched to a single HDMI output
Supports HDMI 2.0 18Gbps specification including HDR
Supports resolutions up to 4K UHD 60Hz 4:4:4
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Supports Mini DisplayPort up to 4K UHD 60Hz 4:4:4, DP1.2
Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2
Supports both manual or automatic source selection
HDCP 2.2 compliant

Specification

Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x Mini DisplayPort
Video Output Connectors: 1 x HDMI Type A, 19-pin, female
Local Power Input: 1 x Micro USB, female
Casing Dimensions (Dia x H): 105mm x 25mm
Operating Temperature: 32°F to 104°F (-5°C to +55°C)
Storage Temperature: -4°F to 140°F (-25°C to +70°C)
Power Supply: 5V/1A DC
