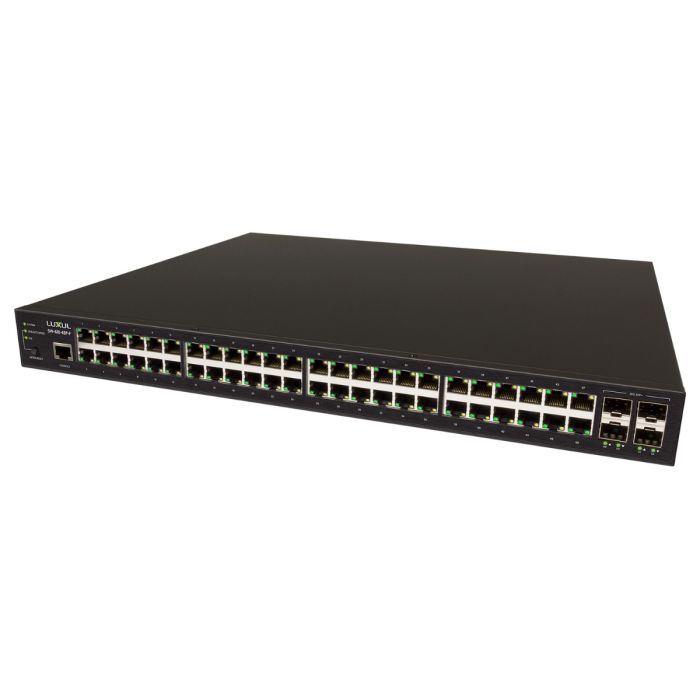

Luxul SW-610-48P-F 48-Port Gb PoE+ L2 L3 Managed Switch with 4 SFP+
The SW-610-48P-F is a 48 port PoE+ front facing single space rackmount Gigabit switch with 4 SFP+ 10Gb ports (aggregable up to 40Gbps) with a total PoE power budget of 740W. Each of the SFP+ ports can be used alone or aggregated together to allow 20 or 40Gbps throughput to another switch. This L2/L3 switch with 176Gbps switching capacity provides VLAN, QoS and other powerful management features. Up to 16 switches can be grouped in a single pane user-interface allowing easy and comprehensive administration. Variable speed fans for quiet operation. ProWatch Integrated for support of remote monitoring and management.
Included in the box:
SW-610-48P-F switch, power and console cables, rack ears and set of four (4) adhesive feet, quick install guide & regulatory documentation
- PoE Self-Healing with auto-recovery and power scheduling
- 48 PoE+ Gigabit Ports
- 740 Watt total PoE budget
- Front-facing ports for AV racks
- 4 SFP+ Ports
- Aggregable up to 40Gbps
- Rack Mountable
- Group Manager -Single pane user interface for easy administration of multiple 510 and 610 series switches
- Three Year Warranty
- PoE Self-Healing with auto-recovery and power scheduling
- 48 PoE+ Gigabit Ports
- 740 Watt total PoE budget
- Front-facing ports for AV racks
- 4 SFP+ Ports
- Aggregable up to 40Gbps
- Rack Mountable
- Group Manager -Single pane user interface for easy administration of multiple 510 and 610 series switches
- Three Year Warranty
| Max. Power Consumption | 899W @ 100VAC |
| PoE Power Budget | 740W |
| Switching Capacity | 176 Gbps |
| Connection Type | Wired |
| Layer Support | L2 L3 |
| Number of Ports | 48 |
| PoE Self Healing | Per Port Basis |
| Port Location | Front |
| Power Cord | US Cord |
| Power Type | AC |
| ProWatch Type | ProWatch Integrated |
| SPF Port Type | 4 x 10 Gigabit |
| Switch Type | Managed PoE+ |
| VLAN Compliance | 802.1Q |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Dimensions (H x L x W) | 1.75 in (44mm) x 17.4 in (442mm) x 14.75 in (375mm) |
| Weight | 12.4lbs (5.62g) |
| Warranty | Three Year Limited Warranty (Parts & Labor) |
| Prop 65 Warning | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
