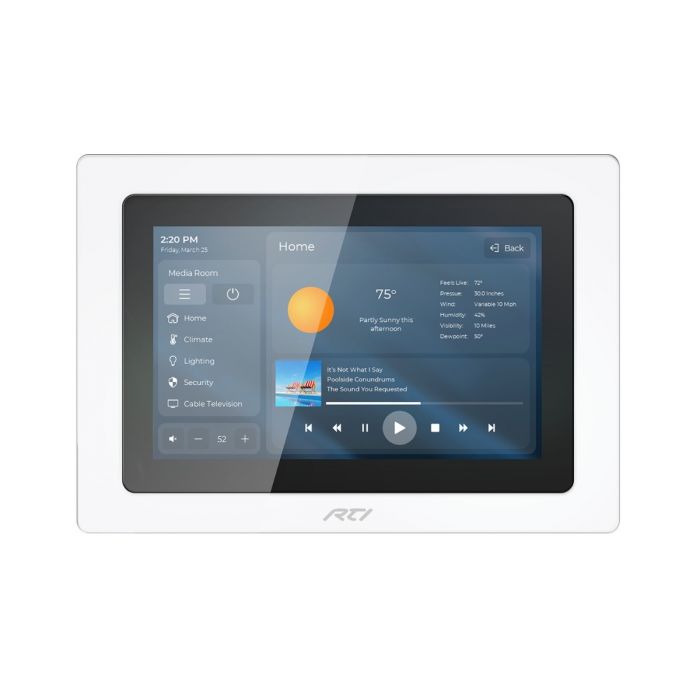

KX7s 7 inch In-Wall Touchpanel
THIS PRODUCT IS DISCONTINUED.
The KX7s delivers essential control of entertainment, environment, security and more in any residential or commercial installation. The wall-mounted touchpanel has a slim profile framing a vivid 7” LCD that can be fully customized, with an integrated multi-touch capacitive touchscreen enabling enhanced page navigation. The KX7s wakes with a user’s approach, convenient in dark rooms. Its ambient light sensor adjusts the display brightness to the perfect level based on the ambient light. The built-in RS-232 and infrared communication allow for direct control of electronics without a control processor. The Ethernet connection enables advanced two-way control and monitoring of connected devices, such as for viewing IP security cameras.
Included in the box:
KX7, bezel (white), RJ45 to DB9 serial adapter (1), ferrite clamp, mounting wings (2), drywall cutout template
In-Wall
Blend your flush-mount touchpanel into the wall and make it a central point for controlling your home or business.
2-Way
Get status feedback from controlled devices on your touchpanel such as on/off or arm/disarm status, dimming value of lights, music playlists, available radio stations.
Ethernet
Check the weather forecast, view video from network security cameras or perform remote programming updates through a standard 10/100 BaseT network connection.
PoE
Power your touchpanel through a PoE network switch or PoE injector. No extra power supply required.
RS-232
Control devices directly without a control processor, using the wired RS-232 port.
Infrared
Control infrared devices directly without a control processor by connecting IR emitters blasters or repeaters.
Proximity Sensor
Wake the touchpanel by just approaching it. This is very convenient when you enter a dark room or your home at night.
Ambient Light Sensor
Enjoy the perfect display brightness that’s automatically set depending on the ambient light.
- Crisp 7” 800x480 WVGA LCD with integrated multi-touch capacitive touch screen that allows screen swiping for page navigation.
- Crisp 7” 800x480 WVGA LCD with integrated multi-touch capacitive touch screen that allows screen swiping for page navigation.
- Integrated 10/100 Base-T (with PoE).
- Built-in high output IR port for direct control of devices.
- Built-in RS-232 port for one-way control without a separate control processor.
- Powered using power supply, CB8 connecting block or PoE (Power over Ethernet).
- Optional modules/processors provide additional control capabilities including two-way communication via RS-232/IP, sensing, IR and relay control.
- USB and Ethernet Programming.
- Stylish low-profile faceplate available in white, black or brushed aluminum (ships with white).
- Integrated mounting wings for easy retrofit installations (metal back box also available separately).
| Power | +9VDC to +16VDC, 1A max or PoE (Using Class 3 PoE Ethernet router/injector) |
| Power Management | Adjustable backlight brightness/power down time |
| Touchscreen Display | High-brightness color TFT LCD WVGA (800x480 pixels) with 65K colors Integrated high-resolution projected capacitive |
| Display Size | 7.0 in (177mm) diagonal |
| Display Backlight | LED Backlit, 310nit |
| Infrared Output Port | 200mA output Drives up to 1000 ft (300 m) of wire |
| Serial Port | RJ-45, RS-232 communication (one-way) |
| Ethernet Port | 10/100 Base-T with Power-over-Ethernet (Using Class 3 PoE Ethernet router/injector) |
| Speakers | Two (2), Stereo 2 Watt, 8ohm |
| Total System Memory | 128M Bytes Flash (non-volatile) memory |
| Device Capability | Total number of devices is limited only by memory |
| Macro Capability | Unlimited steps in a single macro Total number of macros is limited only by memory Macro capability on every button |
| Communications | USB programming port |
| Enclosure | High-impact molded ABS plastic |
| Front Plate | High-impact molded ABS plastic |
| Mounting | Integrated mounting wings, or screws through front plate |
| Installation Cut-Out (W x H) |
7.7 in (195mm) x 5.6 in (143mm) |
| Outer Bezel (W x H) |
8.5 in (217mm) x 5.9 in (151mm) |
| Total Depth in Wall | 1.4 in (36mm) |
| Weight | 1.4 lbs (634g) |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% Non-condensing |
| Warranty | Three Years (Parts & Labor) |
| Prop 65 Warning | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
