Pre-Order Now: KP-4 - 4 Button In-Wall PoE Keypad Controller
Elevated keypad performance, now with PoE.
FREE Custom Engraving!

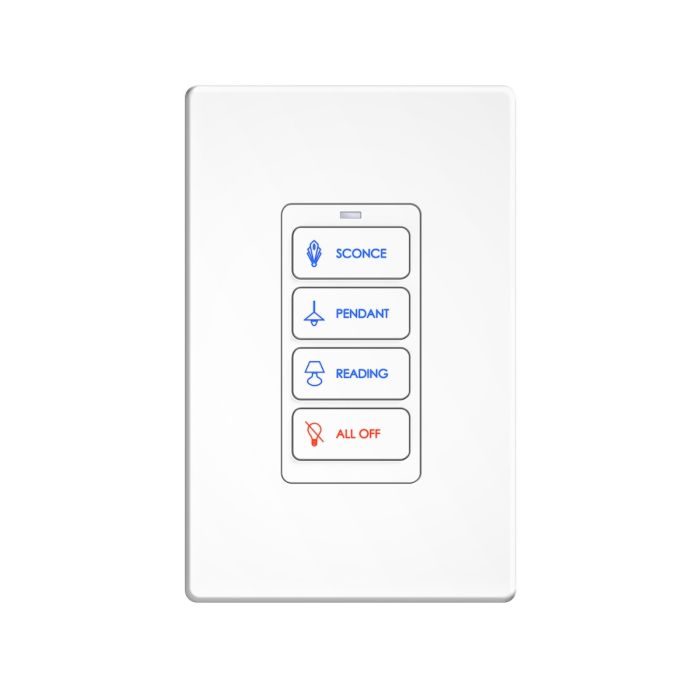

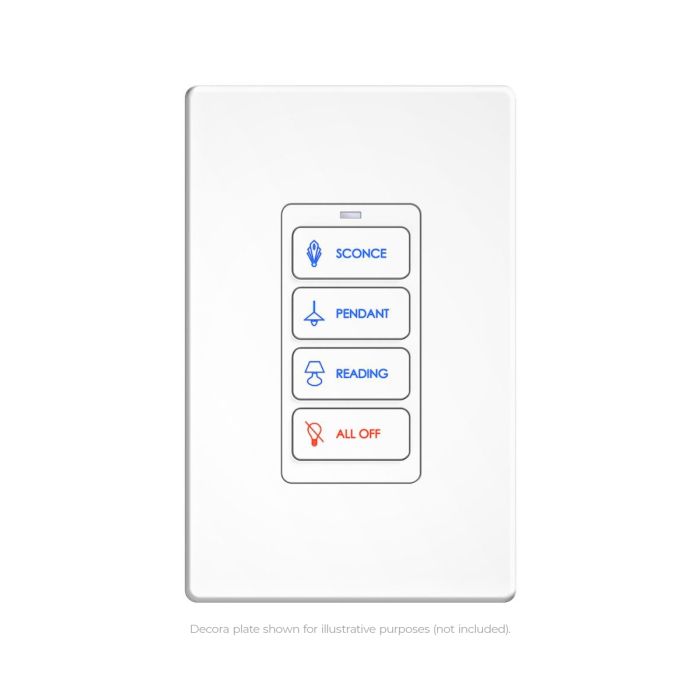

The KP-4 keypad is the perfect addition to an RTI control system for fast and convenient control of music, lights, shades, and other devices or systems. With four fully programmable buttons, the KP-4 keypad provides intuitive two-way feedback via configurable backlight colors for each button.
The KP-4 keypad ships with two sets of keypad faceplates and matching keycaps — one white and one black. For an elevated look and control experience, use RTI’s Laser SharkTM engraving service to personalize the keycaps with custom text and graphics. These are available in White and Satin Black.
Compatible with Decora® style wall plates and sized to fit in a single gang US box, the KP-4 keypad seamlessly integrates into homes and commercial buildings with a clean, intuitive on-wall control solution to match any decor.
For installation convenience, the KP-4 keypad is PoE powered, using the same network cable that runs control communication with the RTI processor.
Included in the box:
KP-4 in-wall keypad controller, black and white faceplates (2), black and white keycap label kits (2), certificate for one Laser Shark engraved keycap set (1), captive screws (2)
Programmable Buttons
4 buttons provide quick access to control functions such as lights, shades, music, and audio/video source selection.
In-Wall
The flush-mount keypad design enables easy control of frequent home or business activities.
Ethernet
Use the existing standard home or corporate network infrastructure to connect the KP-4 keypad to the RTI processor.
PoE Powered
Use any PoE network switch to power the KP-4 keypad over the same network cable that runs control communication with the RTI processor.
2-Way with Control Status Feedback
Intuitive control is elevated with status feedback via the programmable button backlight colors.
Ambient Light Sensor
Adjusts the backlight brightness automatically depending on the ambient light.
Custom Engraved Keypad Buttons
For an elevated look and even more intuitive control experience, use RTI Laser SharkTM engraving service to customize the key caps with text and graphics.
- Four assignable/programmable buttons.
- FREE Laser Engraving for custom text and graphics. A certificate for one free Laser SharkTM engraved keycap set included with purchase.
- Control communication and power over Ethernet (PoE).
- Ships with white keypad faceplate and keycap label kit, and one black keypad faceplate and keypad label kit.
- Backlight color is programmable on each button (16 colors available).
- Completely customizable and programmable.
- Fits in a single gang electrical outlet box.
- Network or USB Programming.
- Use any standard Decora® type wallplate (not included).
| Power | PoE IEEE802.3af |
| Backlights | RGB LED - 16 programmable colors |
| Control Port | 10/100 BaseT with Power over Ethernet |
| Total System Memory | 512k Bytes Flash (non-volatile) memory |
| Macro Capability | Macro capability on every button |
| Communications | USB Type C programming port |
| Enclosure | Formed steel, black powder coat |
| Front Plate | High-impact molded ABS plastic, white |
| Mounting | US standard single-gang box |
| Front Plate Dimensions (H x W) | 4.6” x 2.75” (117 mm x 70 mm) Purchased separately (Decora® Type) |
| Dimensions (H x W x D) | 4.1" x 1.8" x 1.7" 104 mm x 46 mm x 43 mm |
| Installation Cut-Out (H x W) | 2.8" x 1.8" 71 mm x 46 mm |
| Total Depth in Wall | 1.37" (34 mm) plus cables |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% Non-condensing |
| Weight | 4 oz (113 g) |
| Warranty | Three Years (Parts & Labor) |
| Prop 65 Warning | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
All specifications subject to change without notice.
Decora® is a registered trademark of Leviton Manufacturing Co. Inc.
Wallplate not included.
