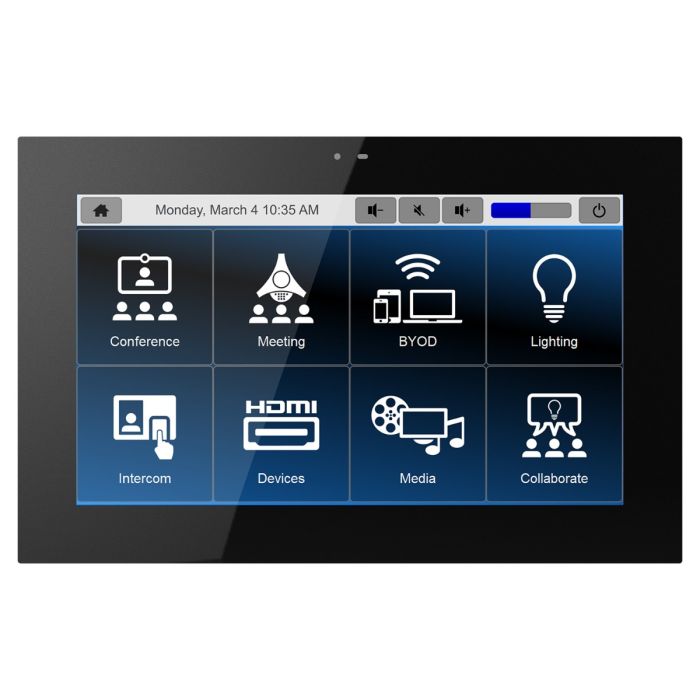

KA11 11 Inch In-Wall/Tabletop Touchpanel-Black

Find a Dealer

The KA11 touchpanel provides simple, intuitive control of the entertainment, environment and security systems in residential or commercial settings. The sleek touchpanel features a fully customizable 11.6” widescreen LCD display with an integrated capacitive touchscreen for swiping through pages and menus. The innovative KA11 is programmable in landscape or portrait mode and comes equipped with sensors to automatically wake the unit and adjust the screen brightness as a user approaches.

Installation is easy using the included wall bracket or an accessory stand is available for table top installations. In addition, only one Ethernet connected Cat-5/6 cable is required to power the unit and enable control via the RTI ecosystem.

Key Features
  • 11.6” widescreen LCD with 1920x1080 Full HD resolution and integrated capacitive touchscreen, supporting multi-touch and gesture.
  • Fully customizable interface can be programmed in portrait or landscape mode.
  • Innovative design allows wall mount in dual gang electrical box or table top installation using stand accessory (sold separately).
  • Ambient light and proximity sensor adjusts the screen brightness and LED backlights automatically according to the environmental light level.
  • Powered by a separate power supply or PoE.
  • Gigabit Ethernet with PoE enables video from IP security cameras, enhanced two-way feedback and remote programming updates.
Power (Power Supply not included) +24VDC, 1A or PoE
Power Management Adjustable backlight/ proximity sensor
Touchscreen Display High-brightness color IPS LCD
Full HD (1920x1080 pixels) with 16.7M colors
Integrated high-resolution projected capacitive touchscreen
Display Size 11in (294mm) diagonal
Display Backlight LED Backlit, 350nit
Ethernet Port RJ-45, 10/100/1000 Base-T with Power-over-Ethernet
Camera Color CMOS, 8MP, 30FPS
Microphone Built-in Microphone, Echo cancellation and noise suppression. Voice activity detection
Speakers Two (2), Stereo 2 Watt
Communications USB programming port
Total System Memory 2GB DDR3, 8GB eMMC Flash
Device Capability Total number of devices is limited only by memory
Macro Capability Total number of macros is limited only by memory
Operating Temperature 0 to +50°C / +32 to +122°F
Operating Humidity 5% to 95% Non-condensing
Mounting Tabletop with Aluminum Stand or Wall-Mount
Installation US standard 2 gang low voltage bracket (included)
Outer Bezel Dimension (WxH) 12.4in (313mm) x 7.9in (201mm)
Depth in Wall 0.83in (21mm)
Warranty Three Years (Parts & Labor)

All features and specifications subject to change without notice.
