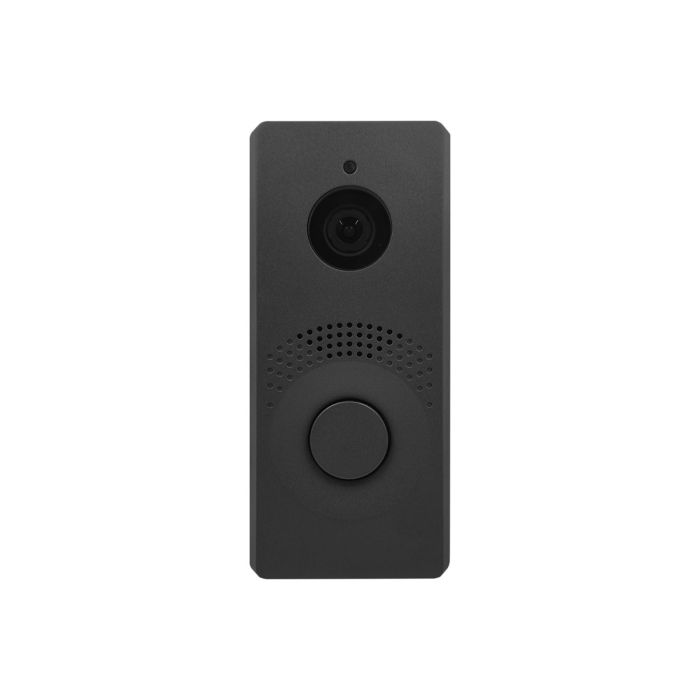

Pre-Order: IVDS-B Intelligent Video Door Station - Black (EMEA and APAC markets only)
Due to tariffs, this item is not currently available in the Americas.
The IVDS-B Intelligent Video Door Station delivers a premium front door experience fully integrated with your RTI control system. This sophisticated IP video intercom combines cutting-edge security features with elegant design to enhance your home's protection and convenience. With its Full HD 156-degree wide-angle camera and Adaptive Face Zooming technology, the IVDS-B provides exceptional video quality and comprehensive monitoring of your entrance area. The system immediately alerts you to unexpected activity, allowing constant awareness of your home surroundings.
Requires either the IVDS-FIB Flush Mount or IVDS-SIB Surface Mount kit for installation.
Included in the box:
IVDS-B, connector plate (1), torx head screw (3), torx wrench (1), quick start guide
Refined Aesthetics
The Door Station features a clean, minimalist design that complements any architectural style. Its backlit button can be customized across the full RGB spectrum and indicates the current status: idle, ringing, in-call, or door open. Seamless mounting with either the IVDS-FIB or IVDS-SIB mount kit.
Built to Last
Featuring IP66 and IK08 certifications, the IVDS-B offers outstanding durability. Constructed from high-quality anodized aluminum, it delivers superior resistance against vandalism, water, and dust.
Intelligent Access Management
Unlike standard video doorbells, the IVDS-B allows direct connection to your door strike. This enables door access management with an RTI system - answer for visitors and permit entry.
Proactive Security
The system’s motion detection capabilities trigger instant notifications and recording when movement is detected or the microphone registers unusual noise levels.
Superior Audio Experience
Communicate clearly with visitors even in noisy environments thanks to the sensitive microphone and intelligently designed speaker system.
Seamless Integration
Enables effortless communication, monitoring, and access control through a unified interface. With customizable automation and two-way audio/video support, users can manage entry points conveniently from the RTI control system.
- Clean, minimalist design.
- Adjustable button color backlight
- Resistance against vandalism, water, and dust
- Superb sound quality
- Full duplex audio with acoustic echo cancellation
- Built-in full HD camera with 156° viewing angle and motion detection
- PoE powered
- Supports SIP 2.0
- Video codecs: H.264, H.265, MJPEG
- Audio codecs: G.711, G.722, G.729, L16/16 kHz
- Seamless integration with RTI control systems
- Easy installation
- Requires either the IVDS-FIB or IVDS-SIB mount kit for installation
Power | PoE 802.3af (12.95 W max.) and/or 12 V / 2 A DC |
Ethernet | 10/100BASE-TX with Auto-MDIX, RJ-45 jack |
Recommended Cabling | Cat-5e or better |
Active Switch Output | 12 V DC, max 600 mA |
Passive Switch | NO contacts, 20 V AC or 30 V DC, 1 A |
Inputs | 1 input - in passive/active mode (-30 V to +30 V DC) OFF = open or Uin> 1.5 V ON = short-circuit or Uin< 1.5 V |
Tamper Switch | Yes |
Microphone | 1 built-in Electret microphone |
Amplifier | 5 W RMS (Class D) |
Speaker | Integrated, 3 W |
Line Out | n/a |
Volume Control | Adjustable with automatic adaptive mode |
Full Duplex | Yes (AEC) |
Audio Output | 3 W |
Audio Protocols | RTP/RTSP/SRTP |
Audio Codecs | G.711, G.729, G.722, L16/16kHz |
Camera Sensor | 1/2.7’’ color CMOS |
Resolution | H.264, MJPEG max. 1920 x 1440 (4:3) |
Frame Rate max | 30 fps |
Focal Length | 0.076 inch |
Viewing Angle | 156° /H), 116° (V) |
Infrared Light | Yes |
Wide Dynamic Range | Yes |
Minimal Illumination | 0.3 lux without IR illumination |
Video Protocols | RTP/RTSP/RTCP/HTTP, ONVIF v2.4 profile S |
Video Codecs | H.264, MJPEG, Zipstream |
Dimensions Video Door Station (WxHxD) | 3.07” x 6.77” x 0.39” (78mm x 172mm x 10mm) Depth = Distance front plate off the wall |
Dimensions Flush Installation Box (WxHxD) - included |
2.64” x 6.58” x 2.21” (67mm x 167mm x 56mm) |
Front Cover | Aluminum casting |
Weight | 12.5 oz. (355g) |
Operating Temperature | -22°F to +140°F (-30° to +60°C) |
Operating Humidity | 10% to 95% Non-condensing |
Warranty | Three Years (Parts & Labor) / 1 year on the battery |
Prop 65 Statement | This product complies with the State of California's Proposition 65, officially known as the Safe Drinking Water and Toxic Enforcement Act of 1986. For more information go to www.oehha.ca.gov/proposition-65 |
All specifications subject to change without notice.
