Available Now: IST-5-FMK - IST-5 Flush Mount Kit

Find a Dealer

Elevate Your Aesthetics

The IST-5 Intelligent Surface Touchpanel delivers the thinnest bezel and lowest profile to the wall of any touchpanel in its class. And now it adds an entirely flush-to-the-wall aesthetic, ideal for luxury and high-end installations with the IST-10-FMK adaptor.

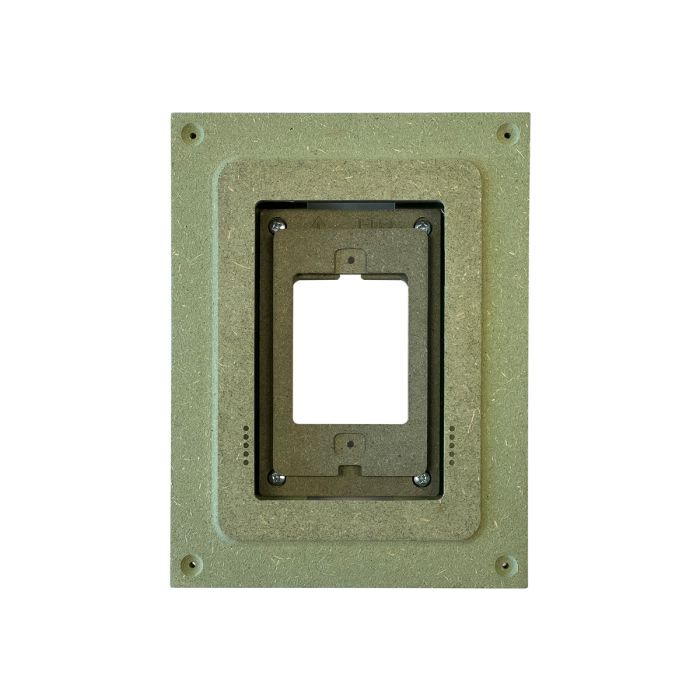

For installation in new construction, the IST-10-FMK adapter mounts flush-to-the-wall and securely cradles the IST-10 Touchpanel while allowing easy access, insertion and operation.

Designed to use with ½” drywall installation, the IST-10-FMK is paintable in any color or texture delivering a truly seamless fit with the wall. It features a set of sound holes aligned with the Touchpanel’s speaker for maximum audio performance.

Included in the box:
IST-5-FMK Flush Mount Kit, M3x12 Flat screws (2), M3 nuts (2),  Touchpanel adapter

  • Flush with the wall.
  • Paintable with the wall paint in any color and texture.
  • Includes depth calibration mechanism.
  • Allows easy insertion and removal of the touch screen.
  • The adapter is supplied unpainted (To be painted after installation as part of the wall).
  • Designed to be installed in ½” drywall.
Key Features
  • Flush with the wall.
  • Paintable in any color and texture.
  • Includes depth calibration mechanism.
  • Allows easy insertion and removal of the touch screen.
  • The adapter is supplied unpainted (To be painted after installation as part of the wall).
  • Designed to be installed in ½” drywall.
  • Dimensions (W/H/D): 160mm (6.3”) / 210.8mm (8.3”) / 44mm (1.73”).
  • Weight: 0.6Kg, 1.32lbs.
  • Material: Moisture resistant MDF (compliant with TSCA Title VI).
  • To be installed in ½” drywall.
