Pre-Order Now: ISR-4 - 4" Intelligent Surface Remote Control with Wi-Fi and IR
Shipping in early December.

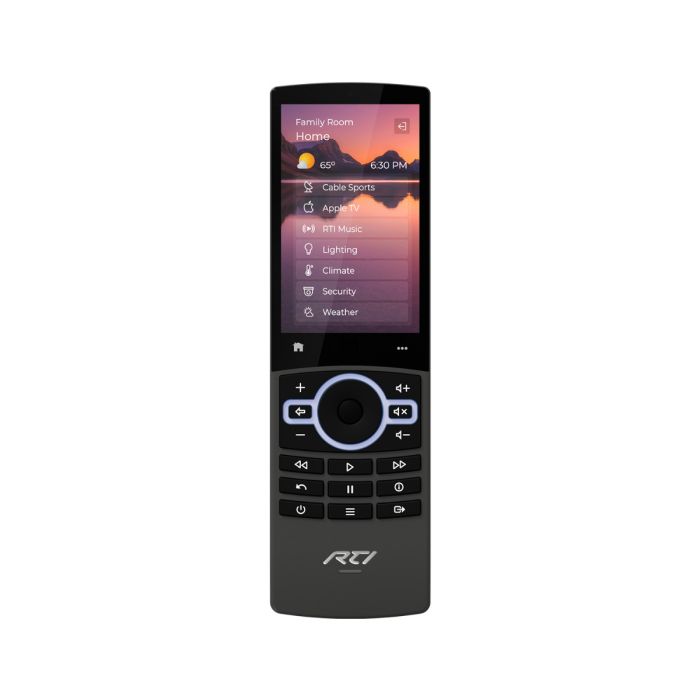

Experience unmatched entertainment and control convenience with the ISR-4 Intelligent Surface Remote from RTI.
The ISR-4 combines cutting-edge design and advanced functionality, with a stunning edge-to-edge capacitive touchscreen encased in a sleek aluminum frame. Art meets engineering for an elevated control experience throughout the home, and the ISR-4 is equally ‘at home’ in the executive boardroom.
The ISR-4’s brilliant 4” display delivers a smartphone-like user experience, with easy swipe and ample space for viewing cover art, camera feeds, lighting controls, and more. Fully customizable soft keys sit below the display, ideal for selecting scenes from ‘good morning’ to ‘good night,’ while the soft-touch backlit buttons deliver effortless control of your audio and video systems. The intuitive 5-way thumbpad, full transport controls, and real-time haptic feedback ensure every interaction is smooth and responsive, ideal for today’s streaming world.
The ISR-4 features advanced Wi-Fi technology for instant and reliable network connectivity. Plus, its built-in accelerometer activates the remote as soon as it’s picked up, ensuring it’s always ready for action without any delay. Meanwhile, the ambient light sensor automatically adjusts the display brightness to match the room’s lighting conditions for optimal visibility.
The ISR-4 intelligently hibernates when not in use, delivering up to 4-5 days of battery life between charges with typical use. Plus, the included ISR-SB charging base ensures the remote is always ready when you need it.
The ISR-4 programs with RTI Integration Designer® software to deliver a 100% customizable experience exclusive to RTI control and automation systems.
Included in the box:
ISR-4, charging base, power supply (5V, 2A)
4” High Resolution Touchscreen
Large 4” flush-mount, high-resolution capacitive LCD touchscreen with a 480x800 resolution.
The customizable graphical user interface allows for intuitive touch screen control.
Capacitive Buttons
2 individually illuminated programmable capacitive buttons on the touchscreen give fast response to commonly used functions incl. Home, Options, and Voice.
Soft-Touch Buttons
20 programmable soft-touch, back-lit buttons provide quick access to often used control functions such as lights, music, or audio/video source selection.
2-Way Control
Get status feedback from controlled devices on your remote such as on/off or arm/disarm status, dimming value of lights, music playlists, available radio stations.
2.4 GHz Wi-Fi
Full control, check the weather forecast, view video from network security cameras or perform remote programming updates through a standard WiFi connection.
Direct Infrared Control
Control devices directly without a control processor.
Accelerometer
Pick up your remote and the accelerometer automatically wakes the touchscreen.
Ambient Light Sensor
Enables the perfect display brightness to be set automatically depending on the ambient light.
Lithium Polymer Battery
The powerful battery features higher energy densitiy and leighter weight than other batteries.

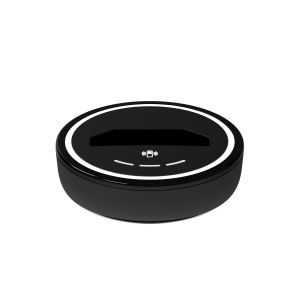

Charging Base
Charge the ISR-4’s battery conveniently with the included charging base.
- Flush-mount, 4.0” high-resolution capacitive LCD touchscreen (480x800).
- Thin, sleek design with superb ergonomics.
- Wi-Fi control.
- Integrated 802.11b/g/n wireless Ethernet enables viewing MJPEG video, wireless program updates, enhanced two-way control and more.
- Accelerometer provides “instant-on” control.
- Twenty assignable/programmable keypad buttons for commonly used functions.
- 2 individually illuminated programmable capacitive buttons on the touchscreen.
- Cursor button allows simple scrolling list navigation.
- System includes a Lithium-Polymer battery and charging base.
- Extremely wide IR transmitting frequency range.
- Completely customizable and programmable.
- Non-volatile Flash memory stores your system configuration even when power is not present.
| Power | 3.85 VDC, 1800 mAh Lithium-Ion Battery Pack |
| Power Management | Integrated accelerometer |
| Infrared Control Range | 30 feet (9.1 meters) @ 60 degrees |
| Infrared Frequency Transmission Range | 15kHz - 460kHz |
| Radio Frequency Control Range | Up to 100 feet (30.5 meters) |
| Wireless Ethernet | 802.11b/g/n @ 2.4Ghz |
| Touchscreen Display | High-brightness color IPS-TFT LCD 480x800 pixels with 16.7M colors Integrated high-resolution capacitive touchscreen |
| Display Size | 4” (101mm) diagonal |
| Backlights | White LED (keypad & soft buttons) |
| Nominal Run Time on Full Charge | 4-6 hours, continuous use (Wi-Fi® & backlight setting dependent) (2 to 3 days on average use) |
| Standby Time on Full Charge | 7 Days |
| Battery Charge Time | 3-4 Hours |
| Operating Temperature | .+32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% Non-condensing |
| Dimensions (L x W x D) | 8.1” (206mm) x 2.5” (65mm) x 0.8” (20mm) |
| Enclosure | Aluminum and molded ABS plastic |
| Weight | 13.9 oz. (394g) with battery pack |
| Warranty | Three Years (Parts & Labor) / 1 year on the battery |
| Prop 65 Warning | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
All specifications subject to change without notice.
