Pre-Order Now: ISR-2 - 2.8’’ Intelligent Surface Remote Control with Wi-Fi and IR
Shipping in early January.

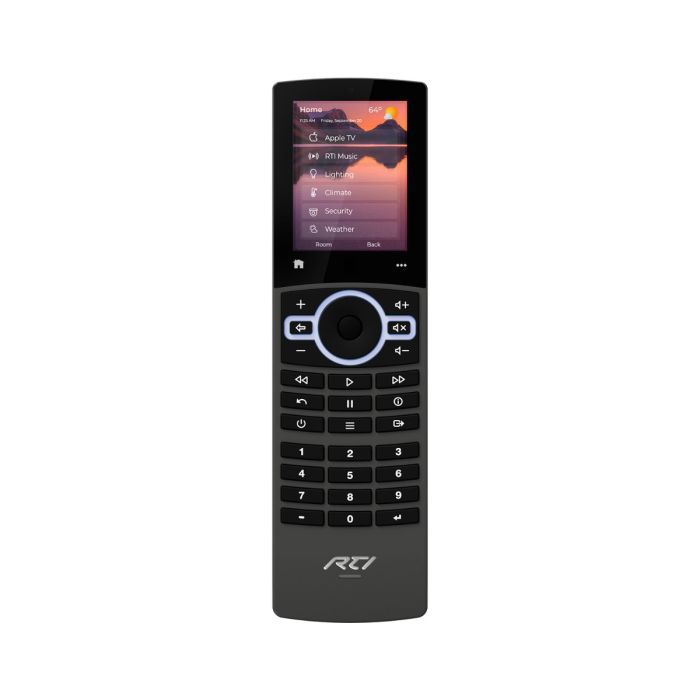

Elevate your entertainment experience with the modern and refined Intelligent Surface Remote from RTI.
Featuring an edge-to-edge glass with capacitive touchscreen set within a premium aluminum frame, the ISR-2 blends art and engineering to deliver the ultimate media control experience.
The vibrant 2.8” touchscreen display pairs with a numeric keypad and soft-touch buttons, a thoughtful balance ensuring seamless control for any media system. The intuitive 5-way thumbpad, full transport controls, and carefully selected soft-touch buttons offer real-time haptic feedback, making every command precise and responsive.
The ISR-2 features advanced Wi-Fi technology for instant and reliable network connectivity. Plus, its built-in accelerometer activates the remote as soon as it’s picked up, ensuring it’s always ready for action without any delay. The ambient light sensor automatically adjusts the display brightness to match the room’s lighting conditions for optimal visibility.
The ISR-2 intelligently hibernates when not in use, delivering up to 6-7 days of battery life between charges with typical use. Plus, the included charging base ensures the remote is always ready when you need it.
The ISR-2 programs with RTI Integration Designer® software to deliver a 100% customizable experience exclusive to RTI control and automation systems.
Programs only with RTI Intgration Designer 11.
Included in the box:
ISR-2, charging base, power supply (5V, 2A)
2.8” Touchscreen
2.8” flush-mount, high-resolution capacitive LCD touchscreen with a 240x320 resolution.
The customizable graphical user interface allows for intuitive touch screen control.
Capacitive Touch Buttons
2 individually illuminated programmable capacitive touch buttons on the touchscreen give fast response to commonly used functions incl. Home, Options, and Voice.
Soft-Touch Buttons
32 programmable soft-touch, back-lit buttons provide quick access to often used control functions such as lights, music, or audio/video source selection.
2-Way Control
Get status feedback from controlled devices on your remote such as on/off or arm/disarm status, dimming value of lights, music playlists, available radio stations.
2.4 GHz Wi-Fi
Full control, check the weather forecast, view video from network security cameras or perform remote programming updates through a standard WiFi connection.
Direct Infrared Control
Control devices directly without a control processor.
Accelerometer
Pick up your remote and the accelerometer automatically wakes the touchscreen.
Ambient Light Sensor
Enables the perfect display brightness to be set automatically depending on the ambient light.
Lithium Polymer Battery
The powerful battery features higher energy densitiy and leighter weight than other batteries.
Charging Base
Charge the ISR-2’s battery conveniently with the included charging base.
- Flush-mount, 2.8” capacitive LCD touchscreen (240x320).
- Thin, sleek design with superb ergonomics.
- Wi-Fi control.
- Integrated 802.11b/g/n wireless Ethernet enables viewing MJPEG video, wireless program updates, enhanced two-way control and more.
- Accelerometer provides “instant-on” control.
- Thirty-two assignable/programmable soft-touch buttons for commonly used functions.
- Two individually illuminated programmable capacitive touch buttons on the touchscreen.
- Cursor button allows simple scrolling list navigation.
- Includes a Lithium-Polymer battery and charging base.
- Extremely wide IR transmitting frequency range.
- Completely customizable and programmable.
- Non-volatile Flash memory stores your system configuration even when power is not present.
| Power | 3.85 VDC, 1800 mAh Lithium-Ion Battery Pack |
| Power Management | Integrated accelerometer |
| Infrared Control Range | 30 feet (9.1 meters) @ 60 degrees |
| Infrared Frequency Transmission Range | 15kHz - 460kHz |
| Radio Frequency Control Range | Up to 100 feet (30.5 meters) |
| Wireless Ethernet | 802.11b/g/n @ 2.4Ghz |
| Touchscreen Display | High-brightness color IPS-TFT LCD 240x320 pixels with 264k colors Integrated high-resolution capacitive touchscreen |
| Display Size | 2.8” (71mm) diagonal |
| Backlights | White LED (keypad & soft buttons) |
| Nominal Run Time on Full Charge | 4-6 hours, continuous use (Wi-Fi® & backlight setting dependent) (2 to 3 days on average use) |
| Standby Time on Full Charge | 7 Days |
| Battery Charge Time | 3-4 Hours |
| Operating Temperature | .+32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% Non-condensing |
| Dimensions (L x W x D) | 8.3” (212mm) x 2.4” (61mm) x 0.8” (20mm) |
| Enclosure | Aluminum and molded ABS plastic |
| Weight | 14.4 oz. (409g) with battery pack |
| Warranty | Three Years (Parts & Labor) / 1 year on the battery |
| Prop 65 Warning | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
All specifications subject to change without notice.
