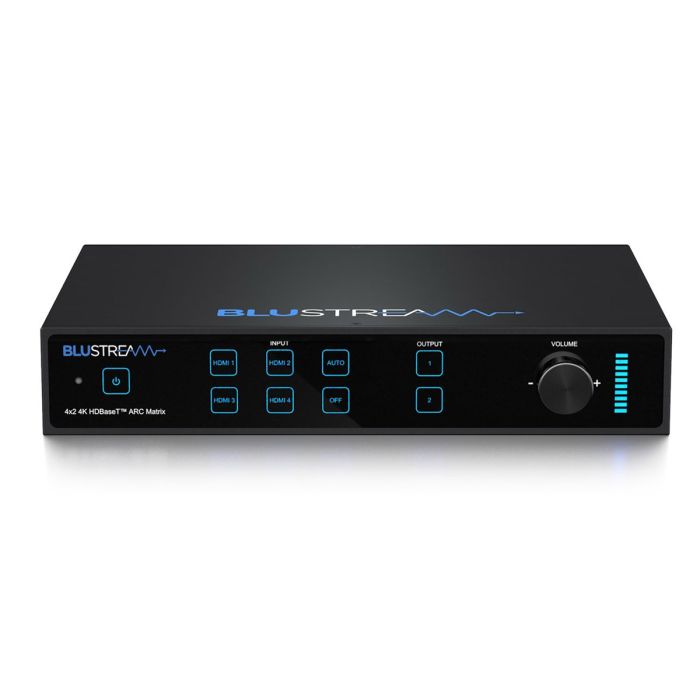

HMXL42ARC-KIT - 4x2 HDBaseT™ CSC Matrix Kit - 70m (4K60Hz 4:4:4 up to 40m)

Find a Dealer

Our Essential 4x2 HDBaseT™ Matrix offers unprecedented
performance and value for the custom installation market.

The HMXL42ARC-KIT is a HDMI2.0 4K60Hz 4:4:4 HDCP2.2 Matrix package utilising CSC technology to deliver HDMI, Bi-directional IR and PoC up to lengths of 70m over a single CAT cable.

The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1, video Smart Scaling on HDBaseT outputs, manual or auto source selection, independent audio matrix and a web browser interface module for control and configuration of the Matrix.

The HMXL42CS-KIT is supplied with 2 x HDBaseT™ receivers.

Box Contents

1 x HMXL42ARC
2 x RX70CS
1 x 19" Rack mounting kit for HMXL42ARC
1 x Surface mount kit for HMXL42ARC
2 x Mounting kit for RX70CS
1 x Remote control
4 x IRE1 emitters
3 x IRR receivers
1 x Serial Cable - DB9 to 3-pin Phoenix connector
1 x IR Control Cable - 3.5mm-3.5mm Cable
1 x 24V/5A power supply
1 x Quick Reference Guide

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR • Features 4 x HDMI inputs which can be independently routed to 2 x HDBaseT™ outputs

  • Output 1 features simultaneous HDMI and HDBaseT™ output

  • Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs

  • Supports 4K 60Hz 4:4:4 UHD video up to 40m

  • Extends HDMI 1080p video up to 70m

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions

  • 8 x 2 audio matrix that is independently controllable from video.

  • Audio source inputs include: - 4 x audio breakout from HDMI source - 2 x audio breakout from zone outputs - 2 x ARC from zone outputs

  • Audio breakout to analogue L/R audio and optical digital (S/PDIF) outputs concurrently with line level volume control on analogue outputs

  • Audio breakout features selectable source from zone audio breakout or ARC from zone outputs via HDMI ARC or optical ARC

  • Web interface module for control and configuration of matrix

  • Supports bi-directional IR on all HDBaseT™ outputs

  • Supports PoC (Power over Cable) to power supplied RX70CS HDBaseT™ receivers

  • 3rd Party drivers available for all major control brands

  • Advanced EDID management

  • HDCP 2.2 compliant

  • Supplied with 2 x RX70CS HDBaseT™ receivers

Key Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR • Features 4 x HDMI inputs which can be independently routed to 2 x HDBaseT™ outputs

  • Output 1 features simultaneous HDMI and HDBaseT™ output

  • Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs

  • Supports 4K 60Hz 4:4:4 UHD video up to 40m

  • Extends HDMI 1080p video up to 70m

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions

  • 8 x 2 audio matrix that is independently controllable from video.

  • Audio source inputs include: - 4 x audio breakout from HDMI source - 2 x audio breakout from zone outputs - 2 x ARC from zone outputs

  • Audio breakout to analogue L/R audio and optical digital (S/PDIF) outputs concurrently with line level volume control on analogue outputs

  • Audio breakout features selectable source from zone audio breakout or ARC from zone outputs via HDMI ARC or optical ARC

  • Web interface module for control and configuration of matrix

  • Supports bi-directional IR on all HDBaseT™ outputs

  • Supports PoC (Power over Cable) to power supplied RX70CS HDBaseT™ receivers

  • 3rd Party drivers available for all major control brands

  • Advanced EDID management

  • HDCP 2.2 compliant

  • Supplied with 2 x RX70CS HDBaseT™ receivers

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female

  • Video Output Connectors: 1x HDMI Type A, 19-pin, female, 2x HDBaseT™ RJ45 connector

  • Audio Input Connectors: 2x Analogue audio L/R (3.5mm stereo Jack), 2x Optical (SPDIF)

  • RS-232 Serial Ports: 1x 3-pin Phoenix connector

  • TCP/IP Control: 1x RJ45, female

  • IR Input Ports: 3x 3.5mm stereo jack

  • IR Output Ports: 4x 3.5mm mono jack



  • Rack Mountable: 1U rack height, rack ears included

  • Casing Dimensions (WxDxH): 220mm x 235mm x 44mm (without feet)

  • Shipping Weight: 4.5kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 1x 24V/5A DC
