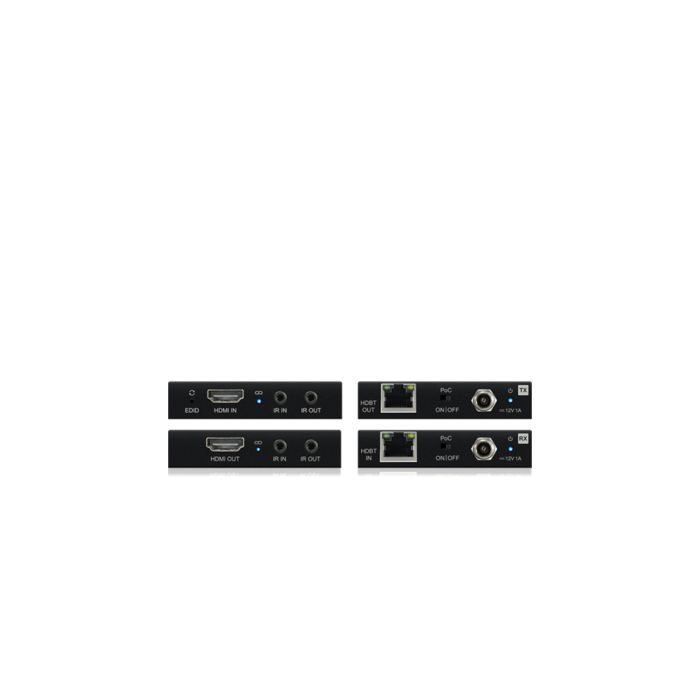

HEX70SL-KIT - Slimline HDBaseT™ Extender Set - 70m

Find a Dealer

The HEX70SL-KIT 4K HDBaseT extender set offers market leading features in a slimline chassis. The product delivers HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.

Box Contents

1 x HEX70SL-TX
1 x HEX70SL-RX
1 x 12V/1A DC Power Supply
1 x IR Emitter
1 x IR Receiver
2 x Mounting Kits
1 x Quick Reference Guide

  • Advanced HDBaseT technology offering uncompressed video and audio with zero latency

  • Enhanced slimline chassis

  • Extends HDMI 1080p up to a distance of 70m over a single CAT cable

  • Supports 4K UHD video up to 40m (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Bi-directional IR pass-through

  • Supplied with Blustream IR receiver and emitter

  • Supports Bi-directional PoC to power extenders from either transmitter or receiver end

  • HDCP 2.2 compliant with Smart EDID management

Key Features

  • Advanced HDBaseT technology offering uncompressed video and audio with zero latency

  • Enhanced slimline chassis

  • Extends HDMI 1080p up to a distance of 70m over a single CAT cable

  • Supports 4K UHD video up to 40m (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Bi-directional IR pass-through

  • Supplied with Blustream IR receiver and emitter

  • Supports Bi-directional PoC to power extenders from either transmitter or receiver end

  • HDCP 2.2 compliant with Smart EDID management

HEX70SL-TX:

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female

  • Video Output Connectors: 1 x HDBaseT RJ45 connector

  • IR Input Ports: 1 x 3.5mm stereo jack

  • IR Output Ports: 1 x 3.5mm mono jack

  • EDID: Pin hole button



    HEX70SL-RX:

  • Video Input Connectors: 1 x HDBaseT RJ45 connector

  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female

  • IR Input Ports: 1 x 3.5mm stereo jack

  • IR Output Ports: 1 x 3.5mm mono jack



  • Power Supply: 12V/1A DC

  • Dimensions: 106mm x 73mm x 16mm (L x W x H)

  • Shipping Weight: 0.8kg

  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)

  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
