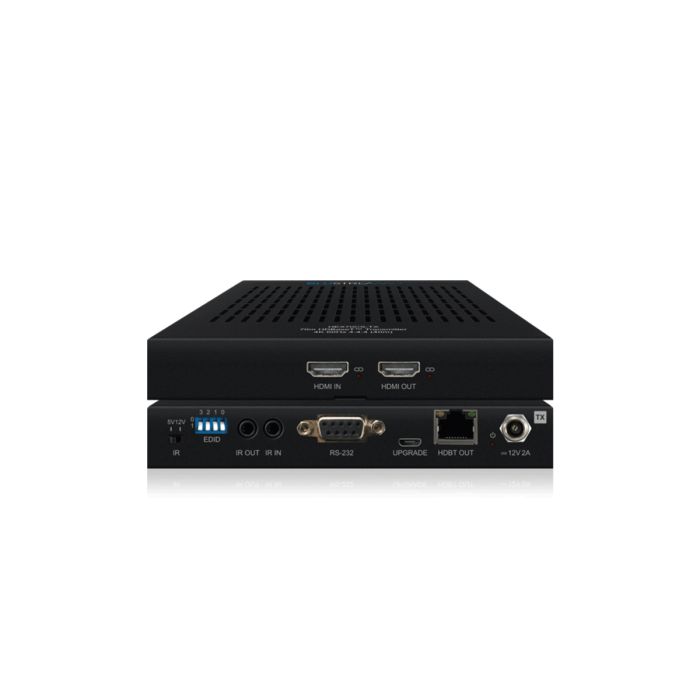

main product photo

HEX70CS-TX - 70m HDBaseT Transmitter

Find a Dealer

Our HEX70CS-TX HDMI 2.0 4K @ 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT transmitter offers market leading features and outstanding value utilizing CSC technology with video down conversion.

The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoC up to lengths of 70m (4K to 40m) and includes a HDMI loop-out for integrating local displays or cascading to multiple devices.

Box Contents

1 x HEX70CS-TX
1 x Mounting Kit

  • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable

  • Advanced Color Space Conversion (CSC)

  • Supports HDMI 2.0 18Gbps specification including HDR

  • Supports 4K @ 60Hz 4:4:4 UHD video up to 40m

  • Extends HDMI 1080p video up to 70m

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

  • Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices

  • Supports bi-directional RS-232 pass-through

  • Supports bi-directional IR pass-through

  • Supports bi-directional IR pass-through with switchable 5V/12V IR hardware support

  • HDCP 2.2 support

Key Features

  • Video Input Connectors: 1 x HDMI Type A, female

  • Video Output Connectors: 1 x HDBaseT RJ45 connector, 1 x HDMI Type A, female

  • RS-232 Serial Port: 1 x DB-9, female

  • IR Input Ports: 1 x 3.5mm stereo jack

  • IR Output Ports: 1 x 3.5mm mono jack

  • EDID DIP Switch: 4-pin

  • Power Supply: 12V/2A DC, screw type connector

  • Power Consumption: 12.7W

  • Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)

  • Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)

  • Ind. Extender Weight: 0.35kg (excluding accessories)

  • Shipping Weight: 1.4kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Mounting Kit included
