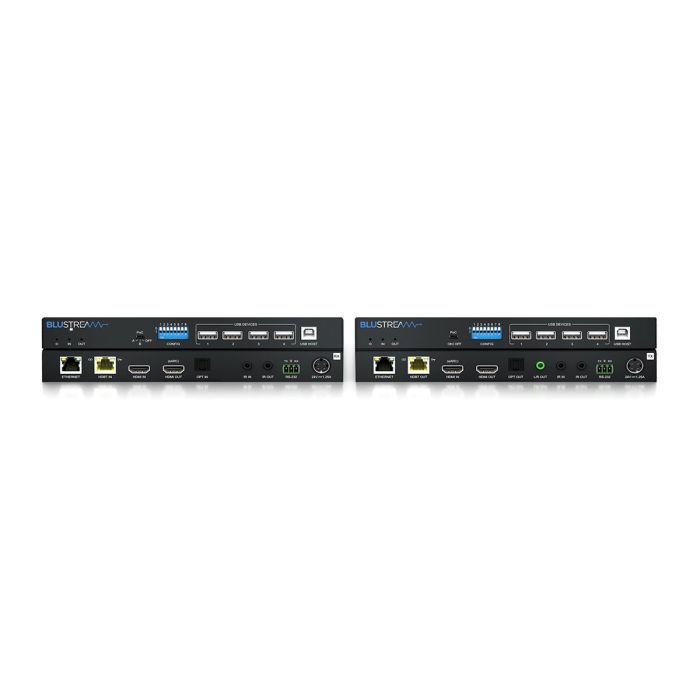

main product photo

HEX18GARC-KIT - Advanced HDBaseT Extender Set

Find a Dealer

The HEX18GARC-KIT extender set is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilizing the latest in HDBaseT technology.

The HEX18GARC-KIT supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.

The HEX18GARC-KIT supports bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT6A cable. The HEX18GARC-KIT also provides enhanced features including KVM, eARC via HDMI, or ARC via HDMI or Optical (S/PDIF), and 1Gbps Ethernet pass through.

Box Contents

1 x HEX18GARC-TX Transmitter
1 x HEX18GARC-RX Receiver
1 x 24V/1.25A DC power supply
1 x USB-A to USB-B cable
1 x IRE1 receiver
1 x IRR emitter
4 x Mounting brackets
1 x Quick Reference Guide

  • Advanced uncompressed, unconverted, HDMI over HDBaseT technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable

  • Supports HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video

  • Supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision

  • Supports HDMI video distribution up to 100m*

  • Features 1x HDMI loop-out on HEX18GARC-TX for integrating local displays or cascading to multiple devices

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • HDMI re-clocking on the HDBaseT Receiver to help solve HDMI HDCP, compatibility, and handshaking issues

  • Supports eARC (Enhanced Audio Return Channel) from display via HDMI, and standard ARC from HDMI and Optical (S/PDIF) digital inputs

  • Supports audio return to HDMI (eARC compatible), optical digital, and analog L/R audio outputs (analog output supports 2ch PCM only)

  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmissions

  • Features USB2.0 for KVM with speeds of up to 350Mbps

  • Bi-directional Ethernet (1Gb), IR, & RS-232 pass through

  • Supplied with Blustream IR receiver and emitter

  • Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end

  • Support for HDCP 2.3, HDCP 2.2 and HDCP 1.4

    *Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling

Key Features

HEX18GARC-TX

  • Video Input Connectors: 1 x HDMI Type A, female

  • Video Output Connectors: 1 x HDBaseT RJ45 connector, 1x HDMI Type A, female

  • Audio Output Connectors: 1 x Analog audio L/R (3.5mm stereo Jack), 1x Optical (SPDIF)

  • Ethernet port: 1 x RJ45 connector

  • RS-232 serial port: 1 x 3-pin Phoenix connector

  • USB/KVM Port: 1 x USB-Type B, 4x USB-Type A

  • IR Input ports: 1 x 3.5mm stereo jack

  • IR Output ports: 1 x 3.5mm mono jack

  • CTRL: 8-PIN DIP switch

HEX18GARC-RX

  • Video Input Connectors: 1 x HDBaseT RJ45 connector, 1x HDMI Type A, female

  • Video Output Connectors: 1 x HDMI Type A, female (reserved for future use)

  • Audio Input Connectors: 1 x Optical (SPDIF)

  • Ethernet port: 1 x RJ45 connector

  • RS-232 serial port: 1 x 3-pin Phoenix connector

  • USB/KVM Port: 1 x USB-Type B, 4x USB-Type A

  • IR Input ports: 1 x 3.5mm stereo jack

  • IR Output ports: 1 x 3.5mm mono jack

  • CTRL: 8-PIN DIP switch



  • Casing Dimensions (W x D x H ): 220mm x 100mm x 25mm (TX/RX)

  • Shipping Weight (Kit): 1.8kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

  • Mounting kits included

  • Power Supply: 1x 24V/1.25A DC
