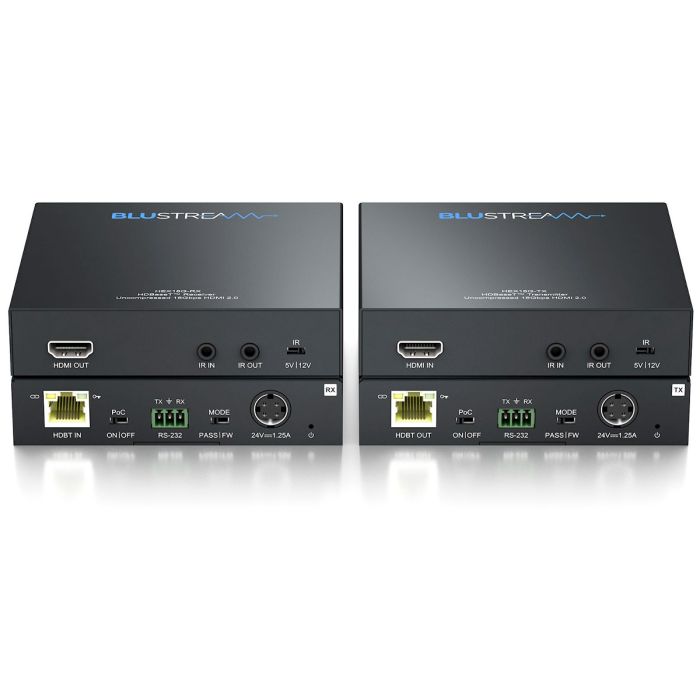

main product photo

HEX18G-KIT - Uncompromised 18Gbps HDBaseT™ Extender Set - 100m

Find a Dealer

The HEX18G-KIT HDBaseT extender set is an industry-leading uncompressed HDMIHEX18G-KIT 2.0 4K 60Hz 4:4:4 HDCP 2.2 solution utilizing the latest in HDBaseT technology. The HEX18G-KIT supports bi-directional IR, RS-232, and PoC up to lengths of 100m over a single CAT cable.

Box Contents

1 x HEX18G-TX Transmitter
1 x HEX18G-RX Receiver
1 x 24V/1.25A DC power supply
1 x IRE1 receiver
1 x IRR emitter
2 x Mounting brackets
1 x Quick Reference Guide

  • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable

  • Supports uncompressed HDMI2.0 18Gbps specification including HDR

  • Supports 4K 60Hz 4:4:4 UHD video

  • Supports HDMI video distribution up to 100m*

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • HDMI re-clocking on the HDBaseT Receiver to help solve HDMI HDCP, compatibility and handshaking issues

  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

  • Bi-directional IR & RS-232 pass through

  • Supplied with Blustream IR receiver and emitter

  • Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end

  • HDCP 2.2 support

Key Features

HEX18G-TX

  • Video Input Connectors: 1x HDMI Type A, female

  • Video Output Connectors: 1x HDBaseT RJ45 connector

  • IR Input ports: 1x 3.5mm stereo jack

  • IR Output ports: 1x 3.5mm mono jack

  • RS-232 serial port: 1x 3-pin Phoenix connector

  • Power Supply: 1x 24V/1A DC

HEX18G-RX

  • Video Input Connectors: 1x HDBaseT RJ45 connector

  • Video Output Connectors: 1x HDMI Type A, female

  • IR Input ports: 1x 3.5mm stereo jack

  • IR Output ports: 1x 3.5mm mono jack

  • RS-232 serial port: 1x 3-pin Phoenix connector

  • Power Supply: 1x 24V/1A DC



  • Casing Dimensions (W x D x H ): 95mm x 116mm x 24mm(RX), 95mm x 116mm x 24mm(TX)

  • Dimensions including connections (W x D x H ): 95mm x 116mm x 24mm(RX), 95mm x 116mm x 24mm(TX)

  • Shipping Weight (Kit): 1.5kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

  • Mounting kits included

  • Power Supply: 1x 24V/1.25A DC



*Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of F/UTP CAT6A cabling.
