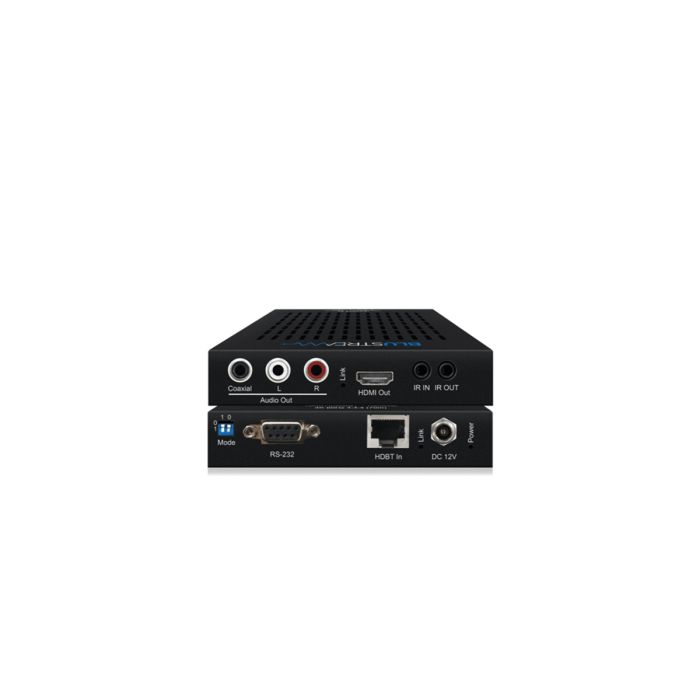

HEX100CS-RX - HDBaseT™ CSC Receiver - 100m

Our HEX100CS-RX HDMI2.0 4K @ 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT receiver offers market leading features and outstanding value utilizing CSC technology.

The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoC up to lengths of 100m (4K to 70m). The Receiver features simultaneous analog stereo and digital coax audio breakout.

Box Contents

1 x HEX100CS-RX
1 x Mounting Kit

Details

Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
Supports 4K @ 60Hz 4:4:4 UHD video up to 70m
Extends HDMI 1080p video up to 100m
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
HDMI re-clocking to help solve HDMI, HDCP, compatibility and handshaking issues
HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently
Supports bi-directional RS-232 pass-through
Supports bi-directional IR pass-through
Advanced EDID management
HDCP 2.2 compliant

Key Features

Specification

Audio Output Connectors: 1 x RCA (S/PDIF) & 2 x Analog RCA (Left / Right)
IR Output Ports: 1 x 3.5mm mono jack
IR Input Ports: 1 x 3.5mm stereo jack
RS-232 Serial Port: 1 x DB-9 female
Video Output Connectors: 1 x HDMI Type A, female
Video Input Connectors: 1 x HDBaseT RJ45 connector
Power Supply: 12V/2A DC, screw type connector (not supplied)
Power Consumption: 5.6W
Unit Dimensions (W x D x H): 113 x 124 x 22mm (without connections)
Unit Dimensions (W x D x H): 113 x 138 x 22mm (with connections)
Unit Weight: 0.35kg (excluding accessories)
Carton / Box Dimensions (W x D x H):mm
Shipping Weight: 0.5kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Mounting Kit included
