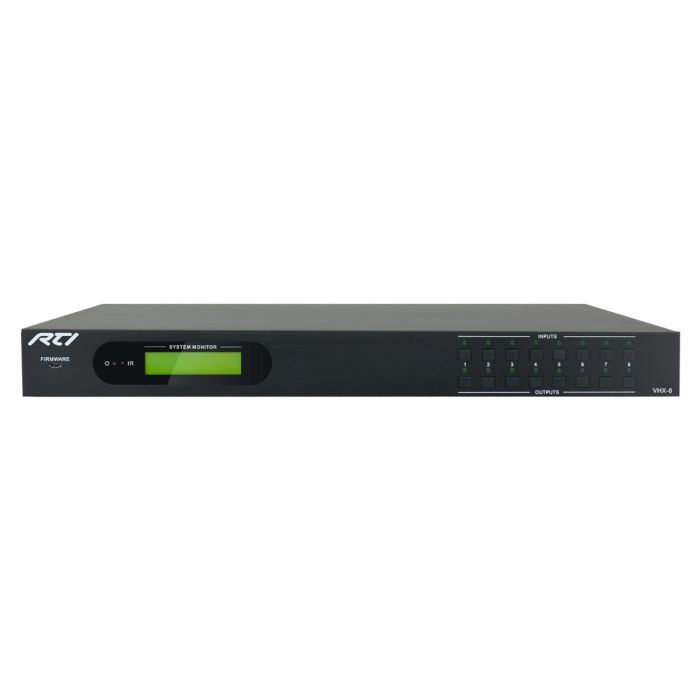

main product photo

VHX-8 HDMI® Matrix Switcher

Find a Dealer

This product is discontinued.

The VHX-8 is a 4K 8x8 Matrix Switcher for professional distribution of up to eight HDMI® 2.0 video sources to eight displays.

The VHX-8 enables cross-point switching from any input to any output, and supports 4K@60Hz 3D signals. It features 18Gbps bandwidth and HDCP 2.2 on all inputs and outputs. The unit is fully compliant with the HDMI 2.0 standard and backward compatible with HDMI 1.4 sources and displays. Eight S/PDIF ports allow breakout audio from corresponding HDMI outputs.

The VHX-8 can be controlled via RS-232, TCP/IP, Web GUI or via the front panel buttons.

Included in the box:
VHX-8, Mounting Ears (2) with Screws, Plastic Cushions (4), RS-232 Cable (1), Power Adaptor 24V DC 2.71A (1), Power Cord (1)

Key Features
  • Provides routing of up to eight video sources to eight displays / projectors.
  • HDCP 2.2 compliant, supporting HDMI 2.0.
  • 3D compatible.
  • Eight S/PDIF ports provide de-embedded HDMI audio output.
  • Powerful EDID management.
  • LCD shows real-time I/O connection status.
  • Supports multiple control methods, including front panel, RS-232, TCP/IP, and Web GUI.
  • Easy installation with rack-mount design.
Power Supply +24 VDC, 2.71A
Mounting Rack mount 1 RU or free standing
Dimensions WxHxD 17.2" (437mm) x 1.73" (44mm) x 9.31" (236.5mm)
Weight 4.01lb (1.82kg)
Operating Temperature -10 to +40°C / +14 to +104°F
Operating Humidity 5% to 95% Non-condensing
Digital Video Input Eight HDMI
Digital Video Output Eight HDMI
Compliance HDMI 2.0, HDCP 2.2
Resolution Range 640x480@60Hz to 4K@60Hz 4:4:4, 1080p 3D
EDID Management Built-in EDID data and manual EDID management
Digital Audio Output Eight S/PDIF for de-embedded HDMI audio
Supported Audio Formats Dolby Digital, DTS, DTS-HD
RS-232 Control Port One, Bi-directional (3-pin Phoenix Connector)
Ethernet Control Port One, 10/100Base-T (RJ45)
Front Panel Control 8 Buttons
USB Micro USB for Firmware Update
Warranty Three Years (Parts & Labor)

All features and specifications subject to change without notice.
