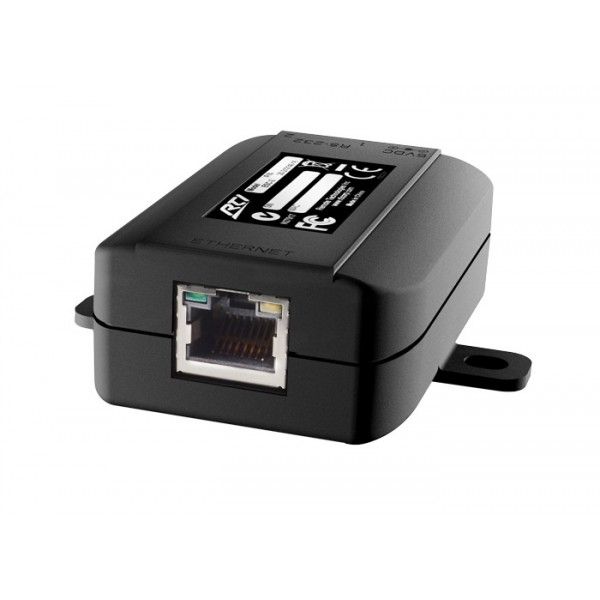

ESC-2 Ethernet to Serial Converter
This model has been discontinued
The ESC-2 Ethernet to Serial Converter provides a convenient way to add two
RS-232 ports to an RTI XP series control processor. Wire the ESC-2 to the local Ethernet network with standard cat-5 cable and it will offer full two-way control, as if the device was wired directly to the control processor. Two built-in RJ-45 jacks and the included RJ-45 to DB9 adapters allow efficient cat5 cabling between the ESC-2 and the device being controlled.* This allows full RS-232 control virtually anywhere there is access to an Ethernet network connection.
*NOTE: Cabling from the ESC-2 to the device being controlled is limited to 30-70 feet depending on baud rate and other factors.
- Provides two additional serial ports to an RTI control processor.
- Use multiple ESC-2 modules for virtually unlimited control of serial
devices. - Capable of two-way serial communication.
- Integrates seamlessly into Integration Designer.
- Can be discovered and configured by Integration Designer over
Ethernet. - Easy wiring to devices using cat-5 cable - Includes two RJ-45 to
DB9 serial adapters.
| Power | +5VDC, 1.0A |
| Serial (RS-232) Ports | Two, RJ45 |
| Includes two RJ-45 to DB9 adapters | |
| Ethernet Port | One, RJ-45 |
| Enclosure | ABS Plastic |
| Mounting | Wall-mount or free standing |
| Dimensions (H x W x D) | W/tabs 2.8” (71mm) x 1.8” (45mm) x 1.0” (25mm) |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% non-condensing |
| Weight | 1.7oz (50g) |
| Warranty | Three Years (Parts & Labor) |
