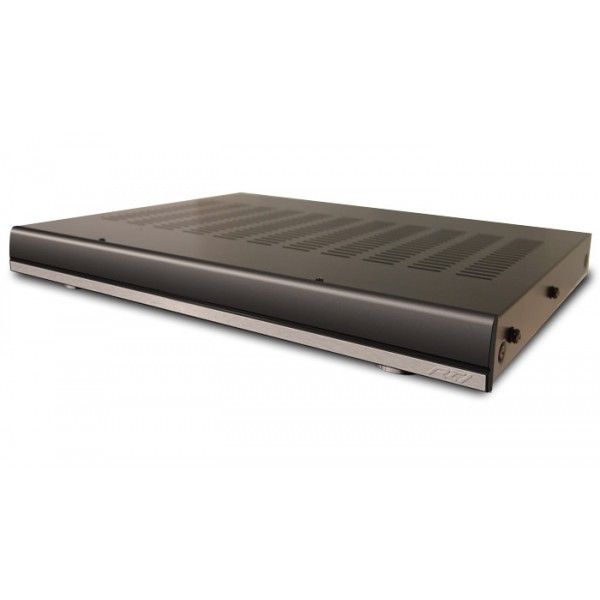

CP-450 4 Channel Cool Power Amplifier
This Device Has Been Discontinued
Keep the party going out by the pool! With all the power you need to bring the music to every room and outdoor space, RTI amplifiers enhance the listening experience, delivering entertainment wherever you go.
The CP-450 easily and cost effectively expands the capabilities of an RTI AD-4x and AD-8x Audio Distribution System. The amplifier utilizes Cool Power® technology for superb sonic performance, pumping out 50 watts per channel - doubling the output power of an RTI audio distribution system. This extra power is perfect for zone expansion and larger rooms or outdoor areas that need more volume to fill the space with high quality audio.
Matched with the RTI control ecosystem, you have a complete solution for distributed audio in residential and commercial spaces. So go ahead and put RTI technology to the test - you’ll never miss a beat.
- Four channel amplifier utilizes Cool Power® technology.
- Power output is 50W per channel.
- Easily expands the RTI AD-4x and AD-8x audio distribution systems.
- Compatible with virtually any audio distribution system.
- Voltage trigger (3-30V AC/DC), RS-232 or IR power control.
- IR passthru port for cascading IR signal to additional amplifiers.
- Rackmount (1U) or free standing installation.
| AC Input Voltage | 115VAC or 240VAC (Switchable), 230W |
| Power Switch | Front Panel On/Off with LED |
| Mounting | Rack mount or free standing |
| Dimensions (HxWxD) | 2.1in(53mm)x16.9in(430mm)x13.3in(340mm) |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% Non-condensing |
| Weight | 14lbs (6.4kg) |
| IR Input | One, 3.5mm, for IR control |
| IR Output | One, 3.5mm, for IR Passthrough |
| RS232 Port | One, Bidirectional control |
| Trigger Output | One, 12VDC, to trigger another CP-1650 |
| Trigger Input | One, 3-30VDC, for power control |
| Speaker Outputs | Two stereo outputs, two channels each, phoenix connectors |
| Audio Inputs | Two stereo, RCA jacks (4) |
| Rated Power/Channel | 50 Watts, 20Hz to 20KHz (RMS, 2 chan driven 8ohms) |
| Rated Power/Channel | 70 Watts 20Hz to 20KHz (RMS, 2 chan driven 4ohms) |
| IHF Dynamic Power | 80 Watts/1KHz at 8 ohm load 120 Watts/1KHz at 4 ohm load |
| Total Harmonic Distortion | @50W/8 ohms & 70W/4 ohms, 0.5% |
| Total Harmonic Distortion | @1W/8ohm <.05% |
| S/N @ Rated Power, IEC A-wtd, Source Input Shorted | 100dB |
| Frequency Response | 20Hz to 20KHz @1W/8ohm, 0dB +/- 0.5dB |
| Input Sensitivity | 1W/8ohms, 140mV/1V |
| Input Impedance | 22KOhms |
| Channel Separation | @ Rated Power/1KHz, 85dB |
| Crosstalk Between Sources | @ Rated Power/1KHz, 100dB |
| Crosstalk Between Zones | @ Rated Power/1KHz, 95dB |
| Warranty | Three Years (parts & labor) |
