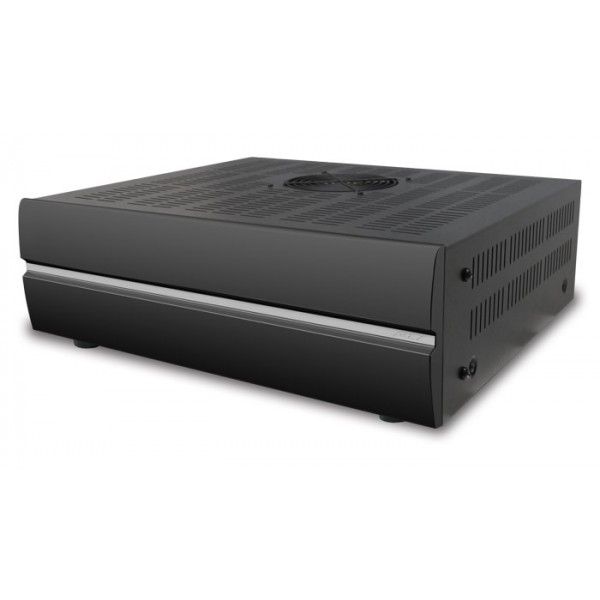

CP-1650 16 Channel Cool Power Amplifier
This Device Has Been Discontinued
Keep the party going out by the pool! With all the power you need to bring the music to every room and outdoor space, RTI amplifiers enhance the listening experience, delivering entertainment wherever you go.
The CP-1650 expands the capabilities of an RTI AD-4x and AD-8x Audio Distribution System easily and cost effectively. The amplifier utilizes Cool Power® technology for superb sonic performance, pumping out 50 watts per channel - doubling the output power of an RTI audio distribution system. This extra power is perfect for zone expansion and larger rooms or outdoor areas that need more volume to fill the space with high quality audio. If the music needs even more boost, you can bridge two channels with a simple flip of a switch, for a whopping 100 watts per channel!
Matched with the RTI control ecosystem, you have a complete solution for distributed audio in residential and commercial spaces. So go ahead and put RTI technology to the test - you’ll never miss a beat.
- Sixteen channel amplifier utilizes Cool Power® technology
- Power output is 50 watts per channel
- Bridgeable audio outputs for increasing power to 100W per channel
- Audio input level adjustment on each channel
- Easily expands the RTI AD-4x and AD-8x audio distribution systems
- Compatible with virtually any audio distribution system
- Voltage trigger (3-30V AC/DC), RS-232 or IR power control
- Rackmount or free standing installation
| AC Input Voltage | 115VAC or 240VAC (Switchable), 230W |
| Power Switch | Front Panel On/Off with LED |
| Mounting | Rack mount or free standing |
| Dimensions (HxWxD) | 5.24in(133mm) x 17.0in(432mm) x 14.75in(375mm) |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% Non-condensing |
| Weight | 23.4lbs (10.6kg) |
| IR Input | One, 3.5mm, for IR control |
| IR Output | One, 3.5mm, for IR Passthrough |
| RS232 Port | One, Bidirectional control |
| Trigger Output | One, 12VDC, to trigger another CP-1650 |
| Trigger Input | One, 3-30VDC, for power control |
| Speaker Outputs | Eight stereo outputs, two channels each, phoenix connectors |
| Audio Inputs | Eight, RCA jacks x 16 |
| Audio Loop Outputs | Eight, RCA jacks x 16 |
| Audio - 2 Channel Mode | |
| Rated Power/Channel | 30 Watts, 20Hz to 20KHz (RMS, 2 channels driven into 8 ohms) |
| Power/Channel | 50 Watts, 20Hz to 20KHz (RMS, 2 channels driven into 4 ohms) |
| IHF Dynamic Power | 40 Watts/1KHz at 8 ohm load 60 Watts/1KHz at 4 ohm load |
| Total Harmonic Distortion | @20W/8ohm, 0.5% |
| Audio - Bridged Mode | |
| Rated Power/Channel | 100 Watts, 20Hz to 20KHz (RMS, 2 channels driven into 8 ohms) |
| Total Harmonic Distortion | (100W/8 ohms), 0.5% |
| Total Harmonic Distortion | (1W/8 ohms), 0.05% |
| Audio - General | |
| Total Harmonic Distortion | 30W/8 ohms & 50W/4 ohms, 0.5% |
| Total Harmonic Distortion | @1W/8ohm <.05% |
| S/N @ Rated Power, IEC A-wtd, Source Input shorted | 100dB |
| Frequency Response | 20Hz to 20KHz @1W/8ohm, 1.5+/-.5dB |
| Input Sensitivity | 1W @ 8 ohms, 170mV/900mV |
| Input Impedance | 22KOhms |
| Channel Separation | @ Rated Power/1KHz, 60dB |
| Crosstalk Between Sources | @ Rated Power/1KHz, 100dB |
| Crosstalk Between Zones | @ Rated Power/1KHz, 80dB |
| Warranty | Three Years (parts & labor) |
