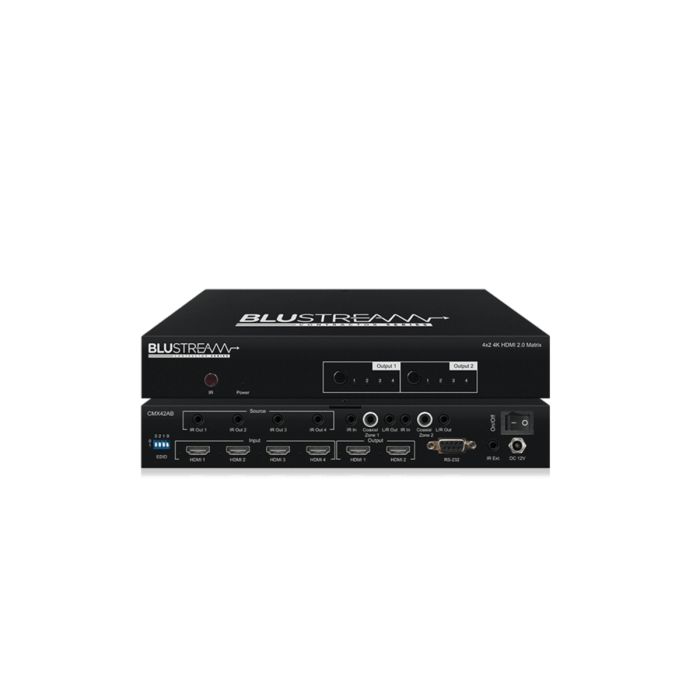

main product photo

CMX42AB - Contractor 4x2 HDMI® Matrix

Find a Dealer

Our Contractor CMX42AB 4K HDMI® matrix offers unprecedented performance and value for the custom installation market.

The CMX42AB supports HDMI 2.0 and HDCP 2.2, allowing distribution of four HDMI sources to 2 displays. This enables all sources to be viewed as required within a matrix configuration.

The unit transmits all HDMI resolutions up to and including 4K @ 60Hz 4:4:4. The 4-Way matrix also includes audio breakout and EDID management.

Box Contents

1 x CMX42AB
1 x 12V/2A DC Power Supply
1 x Remote Control
4 x IR Emitter
3 x IR Receiver
1 x Mounting Kit
1 x Quick Reference Guide

  • Features 4 x HDMI inputs which can be independently routed to 2 x HDMI outputs

  • Supports HDMI 2.0 18Gbps specification including HDR

  • Supports up to 4K UHD 60Hz 4:4:4

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions

  • HDMI audio breakout to associated output analog L/R audio and coaxial digital outputs concurrently

  • Control via front panel, IR and RS-232

  • IR routing

  • Supplied with Blustream 5V IR receivers and emitters

  • 3rd Party drivers available for major control brands

  • Advanced EDID management

  • HDCP 2.2 compliant

Key Features

  • Video Input Connectors: 4 x HDMI Type A, 19-pin, female, locking

  • Video Output Connectors: 2 x HDMI Type A, 19-pin, female, locking

  • Audio Output Connectors: 2 x RCA (S/PDIF), 2 x Analog audio L/R (3.5mm stereo Jack)

  • RS-232 Serial Port: DB-9, female

  • IR Input Ports: 3 x 3.5mm stereo jack

  • IR Output Ports: 4 x 3.5mm mono jack

  • Mounting Kit included

  • Unit Dimensions (W x D x H): 255mm x 104mm x 40mm (without feet or connections)

  • Unit Dimensions (W x D x H): 255mm x 115mm x 47mm (with feet and connections)

  • Shipping Weight: 1.6kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 12V/2A DC
