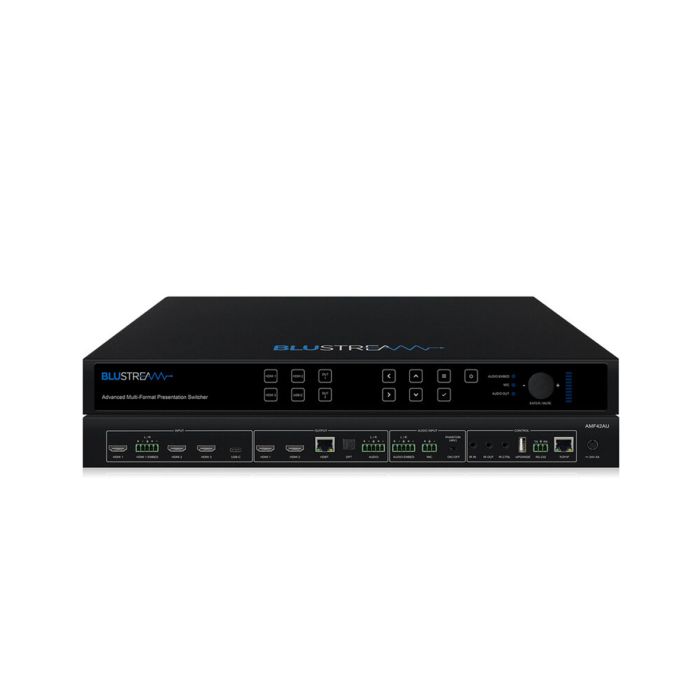

main product photo

AMF42AU - Advanced Multi-Format Presentation Switcher

Find a Dealer

Our AMF42AU is an advanced 4K 4x2 HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 multi-format presentation switcher featuring 3 x HDMI 2.0 and 1 x USB-C input to 2 x HDMI 2.0 / 1x HDBaseT output.

The AMF42AU provides enhanced features including seamless switching, independent video scaling on outputs, MIC input with audio mixing and 48V phantom power, PoC to power a Blustream compatible HDBaseT receiver.

The AMF42AU also features Web GUI for control and configuration, source and display control via CEC, RS-232 and IR, manual or automated source selection, IR pass-through and control via front panel, IR, RS-232 and TCP/IP.

The AMF42AU is an ideal product for your boardroom, classroom or huddle-space application.

Box Contents

1 x AMF42AU
1 x IR Remote Control
1 x 24V/5A DC Power supply
1 x Rack Mounting Kit
1 x IR Receiver
1 x IR Emitter
1 x RS-232 Control Cable
1 x Quick Reference Guide

  • Features 3 x HDMI and 1 x USB-C inputs which can be independently routed to 2 x HDMI / HDBaseT outputs

  • Dual HDMI / HDBaseT on output 2

  • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable up to 70m 1080p (4K up to 40m)*

  • Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification*

  • Independent video scaling on outputs

  • Supports resolutions up to 4K UHD 60Hz 4:4:4 and 2ch PCM audio only

  • Seamless source switching with manual or auto source selection

  • Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2 with 40W charging capability

  • Audio breakout to analog L/R audio and Toslink (S/PDIF) digital outputs concurrently

  • ARC breakout available via S/PDIF when using RX70CS receiver

  • Analog audio inputs and output support both balanced and unbalanced audio

  • Features MIC mixer over source audio with independent level adjustment

  • MIC input supports line level or 48V Phantom power

  • Configurable source and display control via CEC, RS-232 and IR

  • Web interface module for control and configuration of matrix

  • 3rd party drivers available for major control brands

  • HDCP 2.2 compliant with advanced EDID management



    *All features designed to work with the Blustream RX70CS HDBaseT receiver. HDBaseT output is compatible with all Blustream receivers however functionality may vary. Refer to product manual for compatibility before connecting.

Key Features

  • Video Input Connectors: 3 x HDMI Type A, 19-pin, female, 1 x USB-C Type C

  • Video Output Connectors: 2 x HDMI Type A, 19-pin, female, 1 x HDBaseT RJ45 connector

  • Audio Input Connectors: 2 x 5-pin phoenix connector (2ch balanced / unbalanced analog audio)

  • MIC Input Connectors: 1 x 3-pin phoenix connector

  • Audio Output Connectors: 1 x 5-pin phoenix connector (2ch balanced / unbalanced analog audio), 1 x Optical Toslink (S/PDIF)

  • RS-232 Serial Ports: 1 x 3-pin phoenix connector

  • TCP/IP Control: 1 x RJ45, female

  • IR Input Ports: 2 x 3.5mm stereo jack

  • IR Output Ports: 1 x 3.5mm mono jack

  • Product Upgrade: 1 x USB Type A female

  • Rack Mountable: 1U rack height, rack ears included

  • Casing Dimensions (W x H x D): 437mm x 44mm x 265mm

  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)

  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)

  • Power Supply: 24V/5A DC
