The AD-1616 is a DSP Matrix for distribution of sixteen audio sources to sixteen zones. For projects that need more zones, up to four AD-1616 chassis can be combined to deliver 64 audio zones.  The AD-1616 enables seamless routing of both digital and analog sources to any desired zone and features a comprehensive set of DSP controls. This includes a 5-band parametric EQ, allowing integrators to fine-tune acoustic characteristics and tailor sound to specific spaces, plus mixing and auto-ducking features facilitate seamless integration of microphones and doorbells, effortlessly prioritizing audio sources and ensuring smooth transitions. Configuration and DSP functions can be customized directly within Integration Designer or with the intuitive web GUI, enabling the AD-1616 to work in standalone mode or within another control system environment.

For amplification, we recommend pairing the AD-1616 with the RTI CP-16i 16 Channel Cool Power® Amplifier.

For projects that need more zones, up to four AD-1616 chassis can be combined to deliver 64 zones.

Included in the box:
AD-1616, power cord, rack ears (2) with screws, 4-pin Phoenix connectors (8), feet with screws (4)

AD-1616 Features

16 Sources
Eight analog audio source inputs and eight digital inputs.

16 Zones
Sixteen preamp stereo audio output zones to integrate external power amplifiers or subwoofers.

Preamp Outputs
Clean, accurate audio signal with high gain, low noise, and low distortion to integrate external power amplifiers or subwoofers.

16x16 Audio Matrix
Distribute sixteen audio source inputs to sixteen zones, expandable to 64 zones by stacking up to four AD-1616 units.

Audio Source Versatility
Use either analog or digital audio sources or a combination of both.

Built-In DSP
Configure and optimize DSP and matrix settings directly within Integration Designer or with the intuitive web user interface.

5-Band Parametric Equalizer
Fine-tune acoustic characteristics, correcting imperfections and tailoring sound to specific spaces.

Control
Use RTI or 3rd party control system with multiple control options: Two-way control with feedback via RS-232 and IP, or One-way control with infrared.

Auto Configuration
Configure and deploy the AD-1616 with ease within RTI’s Integration Designer platform.

Mounting Options
Rack mount or free-standing installation with included rack ears and removable feet.

Key Features
  • Sixteen audio sources inputs with eight analog inputs and eight digital inputs.
  • Sixteen preamp stereo audio output zones to integrate external power amplifiers or subwoofers. Preamp outputs require external amplification via RTI CP-16i or third-party audio amplifier.
  • Distribute sixteen audio source inputs to sixteen zones, expandable to 64 zones by stacking up to three AD-1616 units.
  • Fine-tune acoustic characteristics for each zone with a comprehensive set of DSP controls such as 5-band parametric EQ as well as mixing and auto-ducking features.
  • Configure and optimize DSP and matrix settings directly within Integration Designer or with the intuitive web user interface.
  • Controlled via IR, and two-way control with feedback via RS-232 and IP when installed with RTI or 3rd party control systems.
  • Rack mount or free-standing installation with included rack ears and removable feet.
Analog Sources 8 RCA (Stereo)
Digital Sources 8 Coax and 8 Optical
Loop Out 8 Analog + 2 Digital
Amplified Zones Preamp only. Use a CP-16i for amplification.
Preamp Zones 16 Stereo (32 Channels)
Audio Zone Expansion Up to 64 zones by combining up to 4 AD-1616 units
Input Impedance 20kΩ
Analog Input 2 Vrms Maximum
Analog Output 2 Vrms Maximum. Volume controlled
Volume Range 0-100 (-80dB - 0dB)
Digital Optical Input Up to 192kHz/24Bit sample rate. PCM only
Digital Coaxial Input Up to 192kHz/24Bit sample rate. PCM only
THD-N THD+N <0.01%, 1kHz
THD+N <0.05%, 20Hz-20kHz
SNR >100 dB, A-weighted - input to output @ pre out
Frequency Response 20Hz – 20kHz +/- 2 dB
Dynamic Range >95dB A-weighted
Sampling Frequency 48kHz
RTI or 3rd Party Control IP (RJ45), RS-232 (RJ45) and IR (3.5mm mono)
AC Input Voltage 100-240V~, 50/60Hz, 20W
Power Switch Front Panel On/Off with LED power indicator
Mounting Rack mount or free-standing
Dimensions (WxHxD) 17.2” x 16.4” x 3.5”
437 mm x 416.5 mm x 89mm
Weight 18.12 lb (8.22kg)
Operating Temperature 0 to +50°C / +32 to +122°F
Operating Humidity 5% to 95% Non-condensing
Warranty Three Years (Parts & Labor)
Prop 65 Declaration This product does not contain chemicals which are listed on California’s Safe Drinking Water & Toxic Enforcement Act of 1986. This Act, commonly known as Proposition 65 (Prop 65), establishes a list of chemicals which the state of California’s risk assessment process has determined to present a risk of cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov



All features and specifications subject to change without notice.

Cutsheet

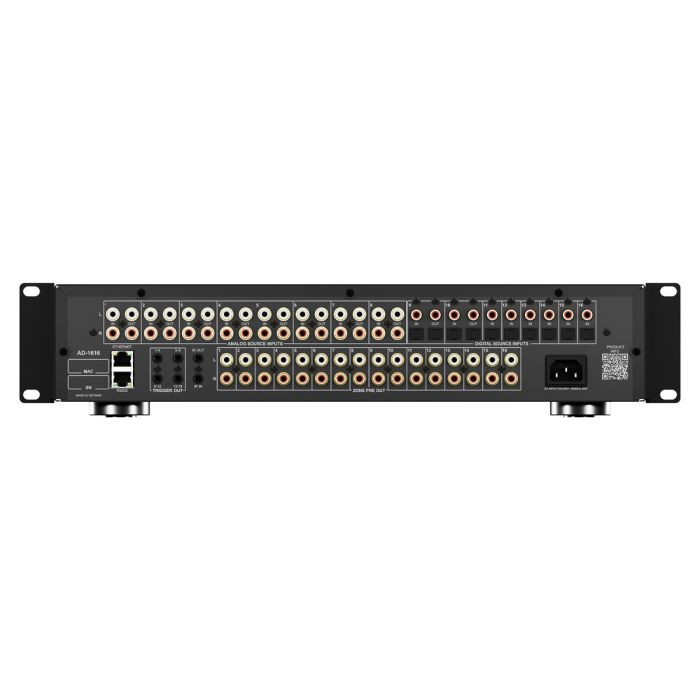

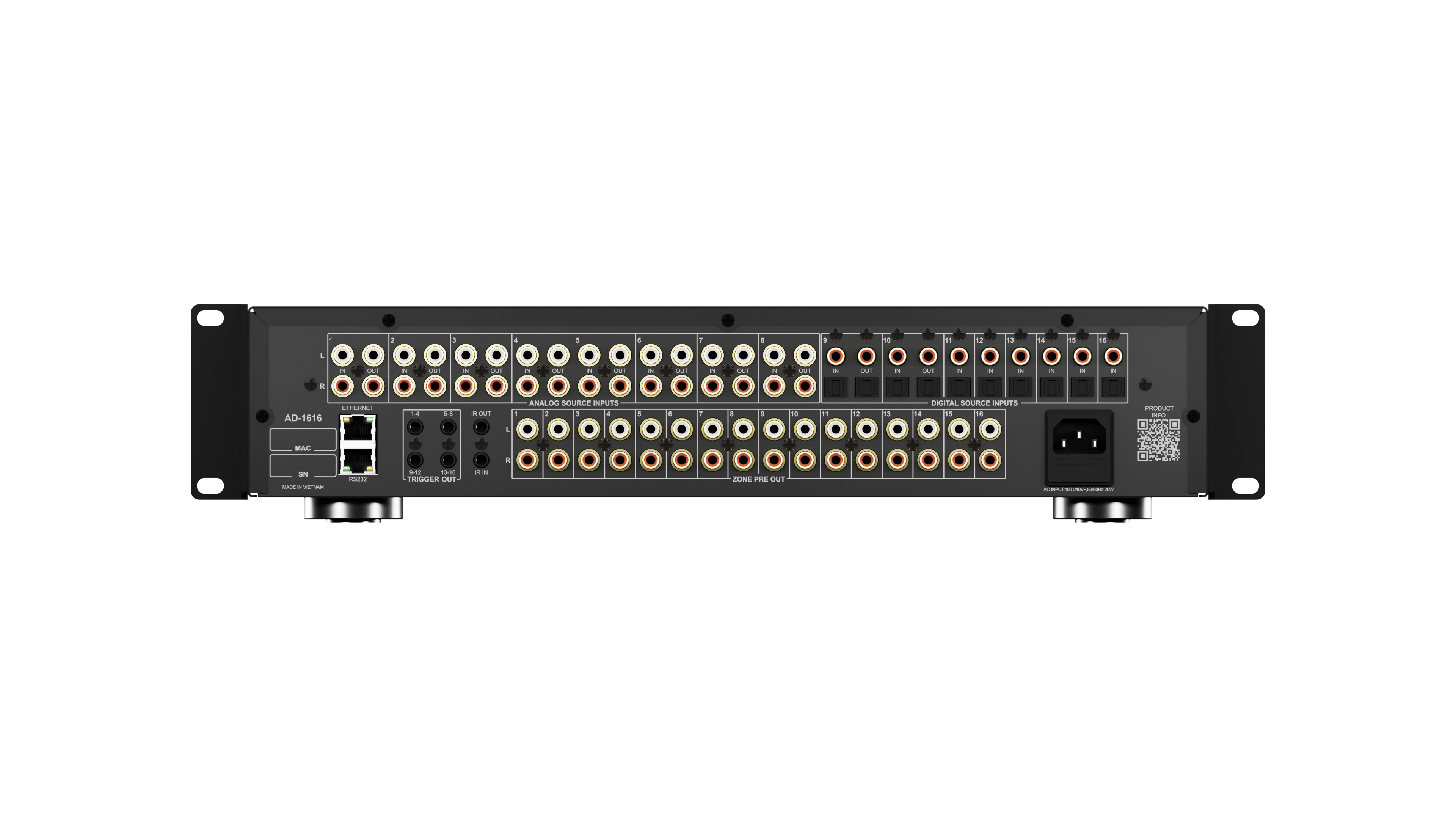

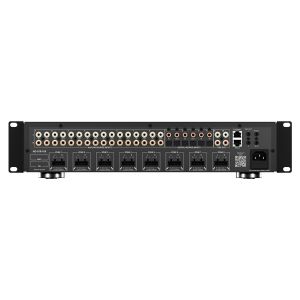

Hi-Res Back Panel Image

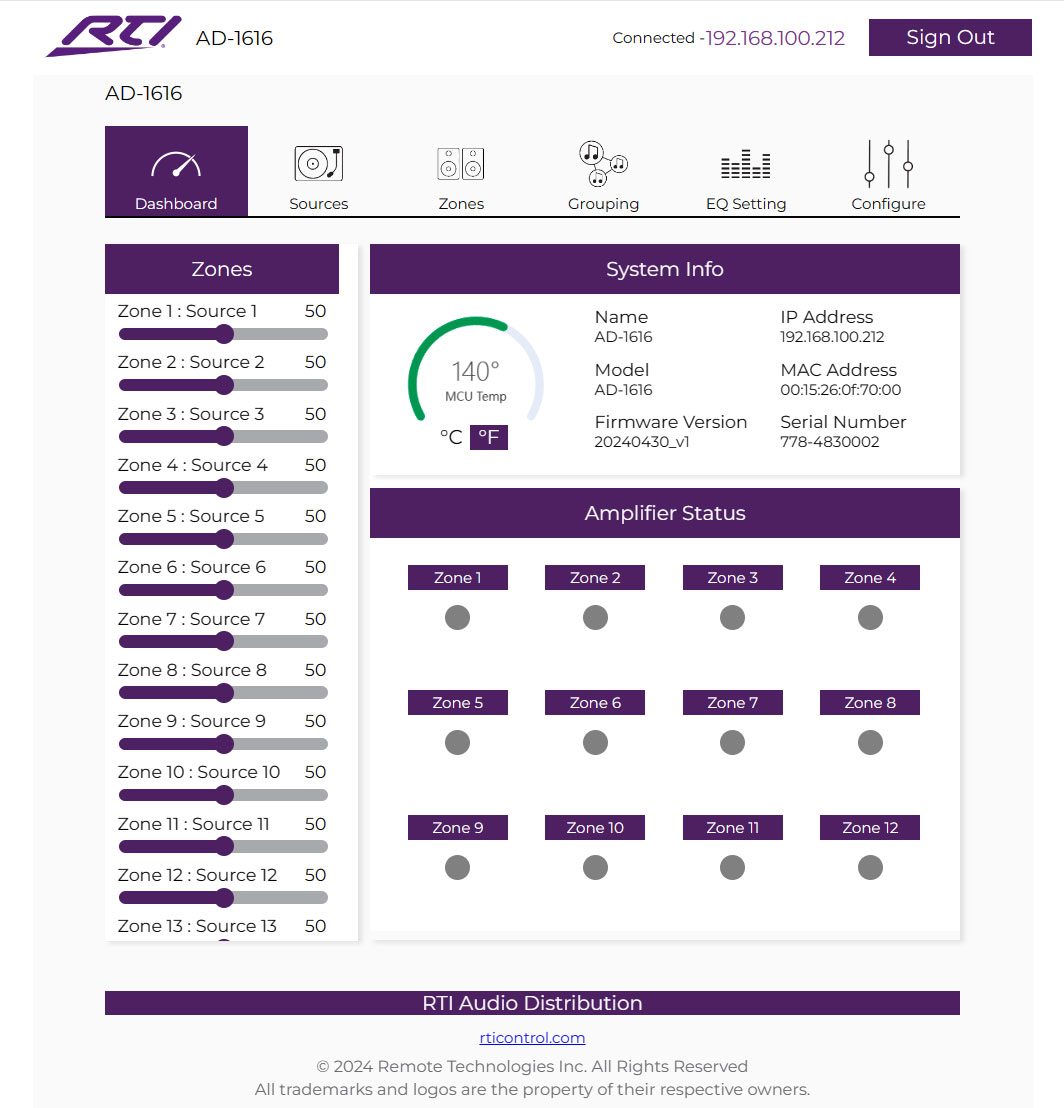

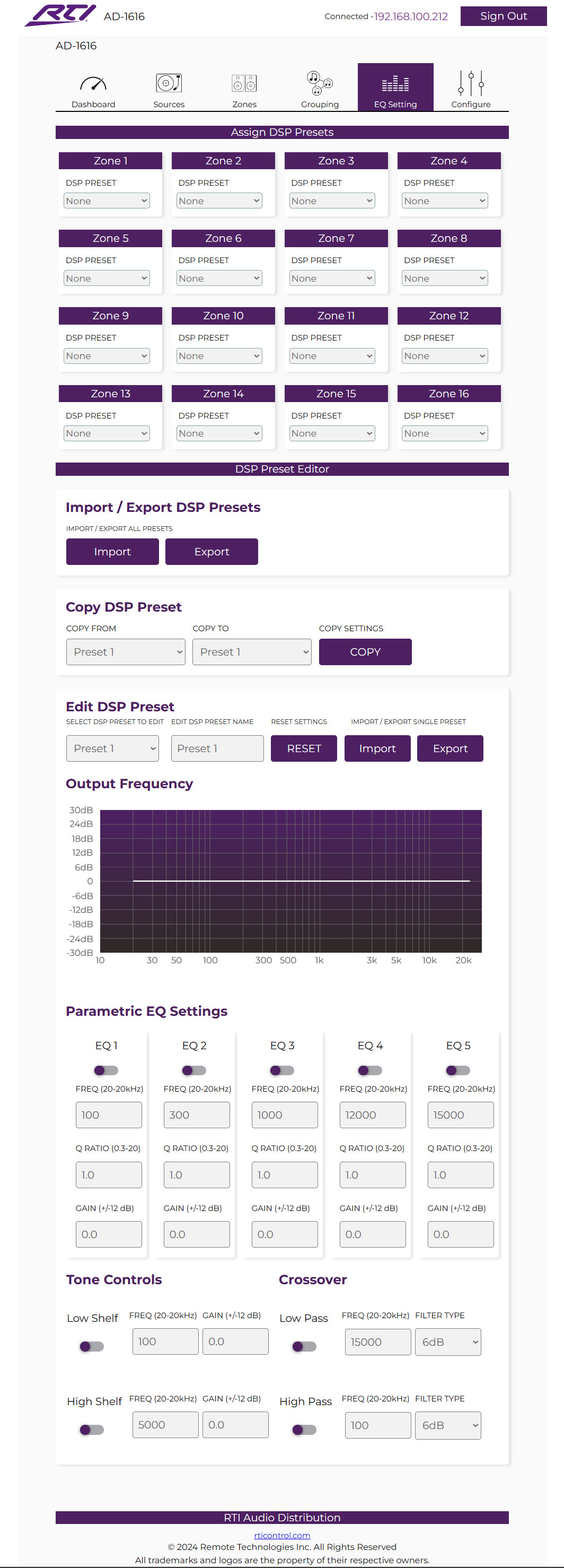

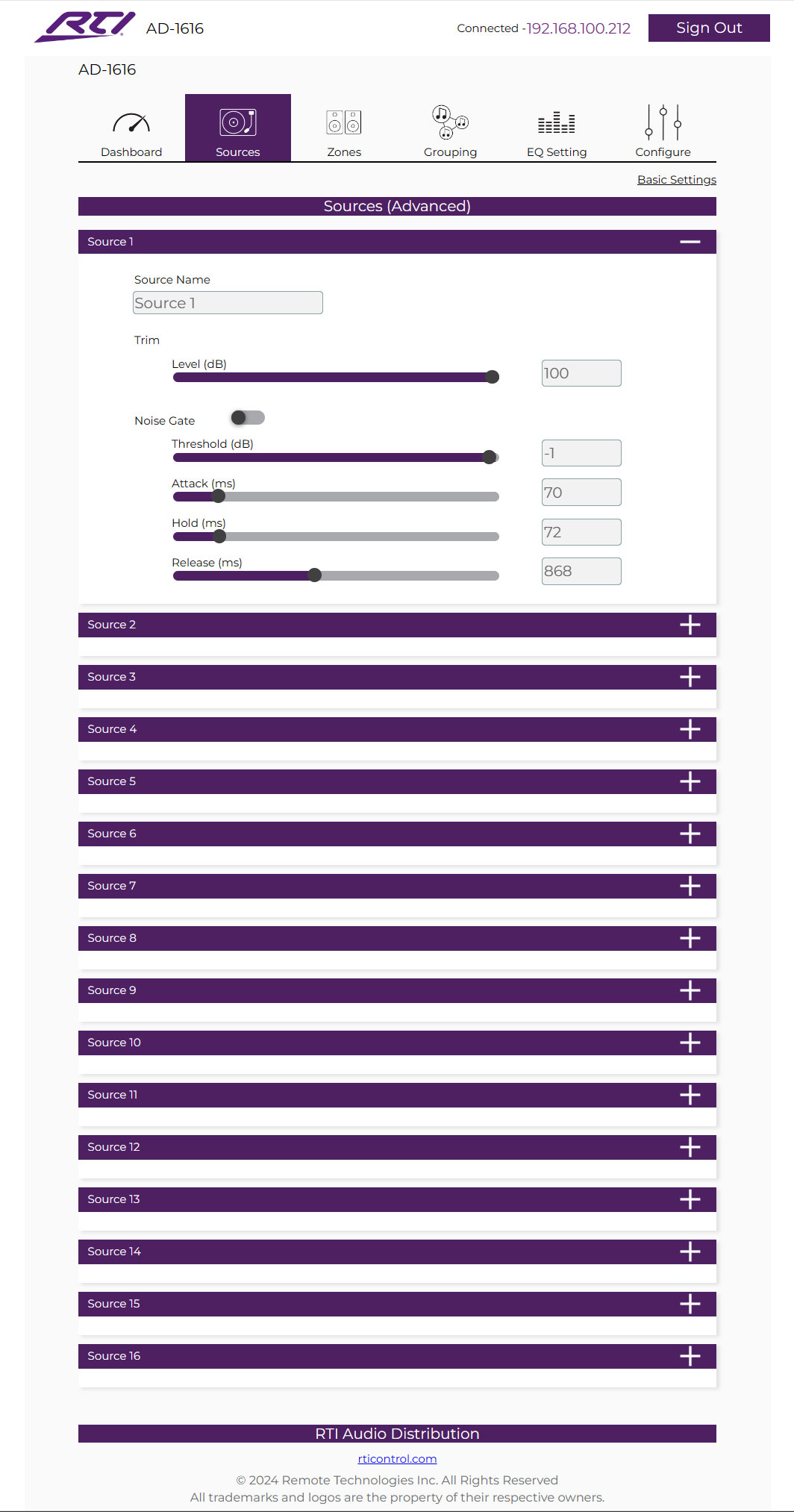

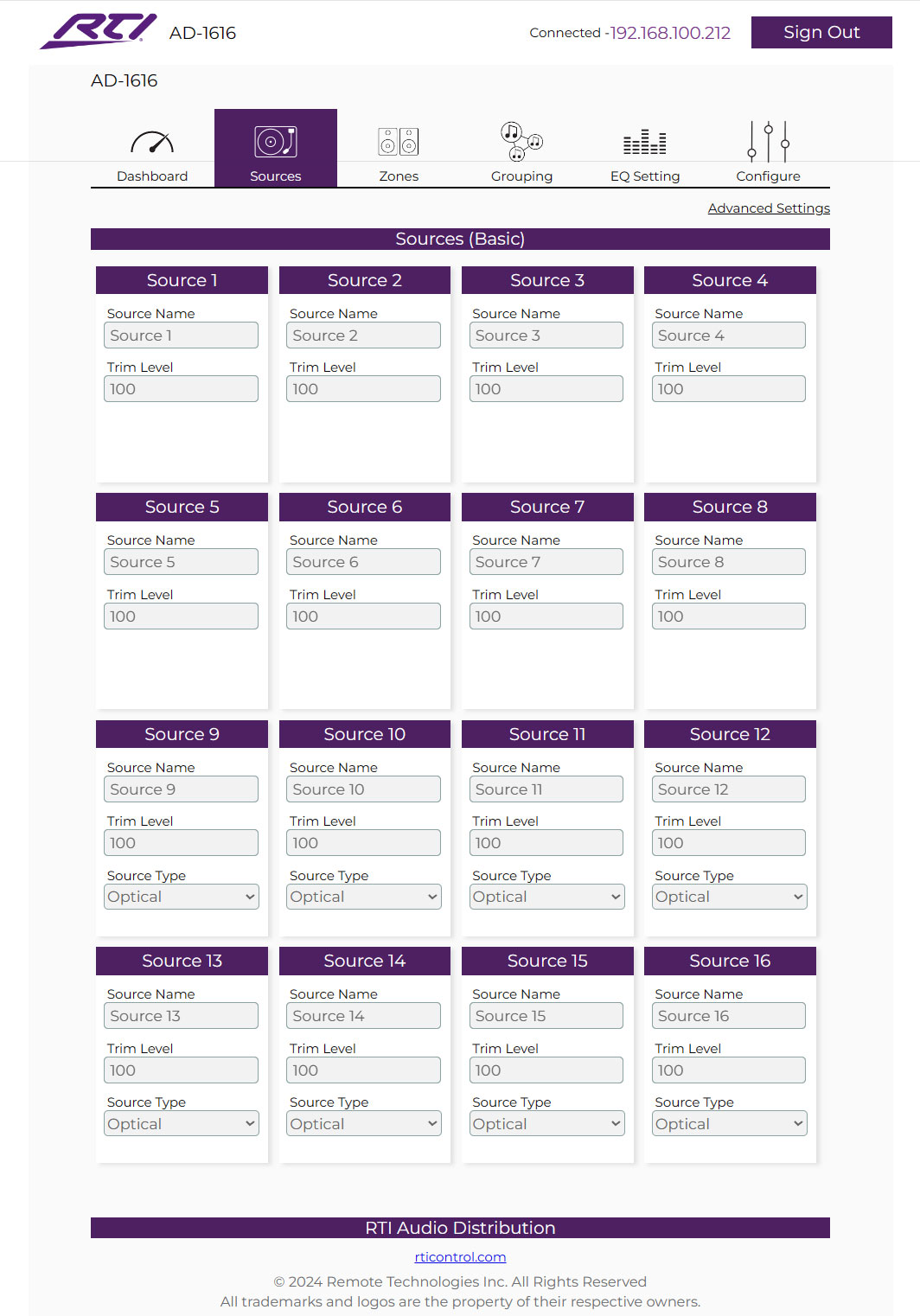

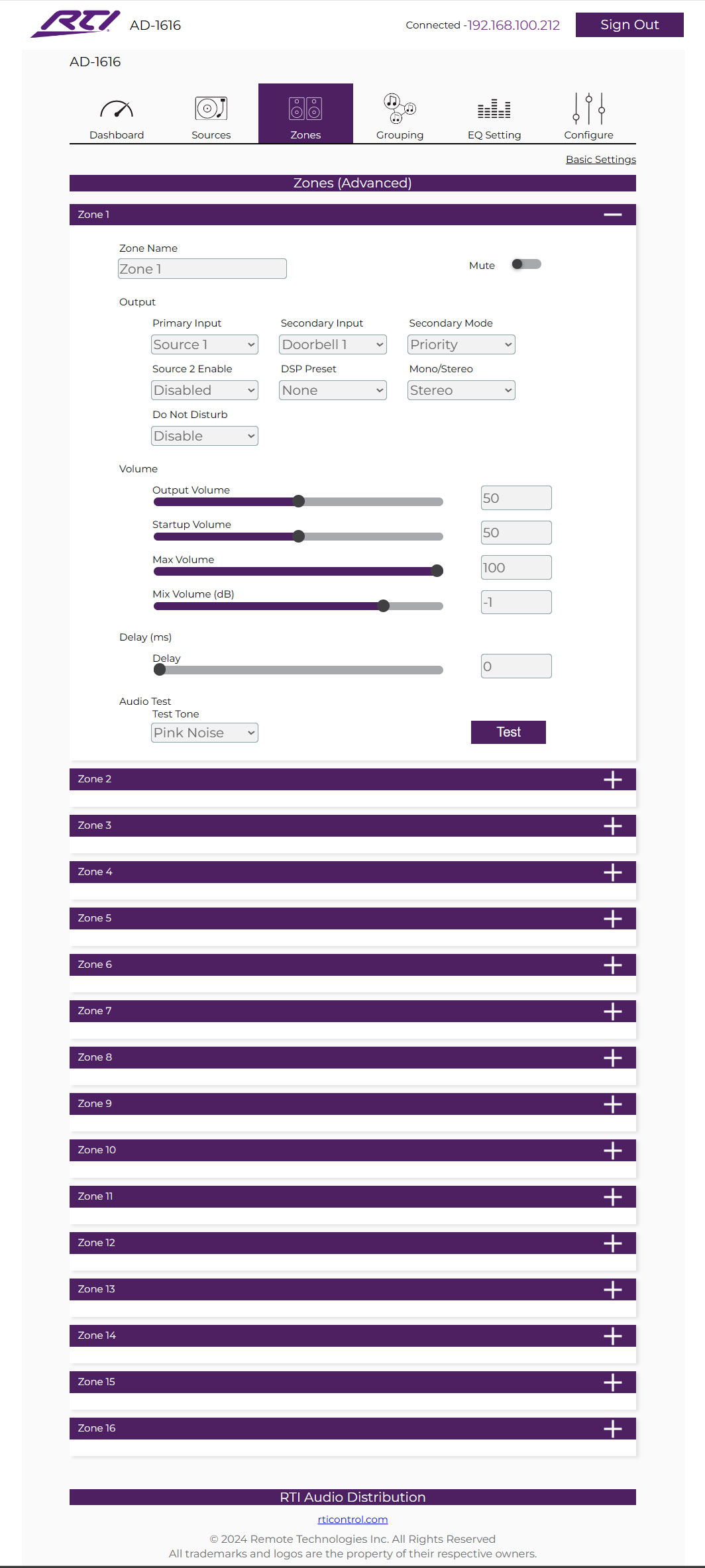

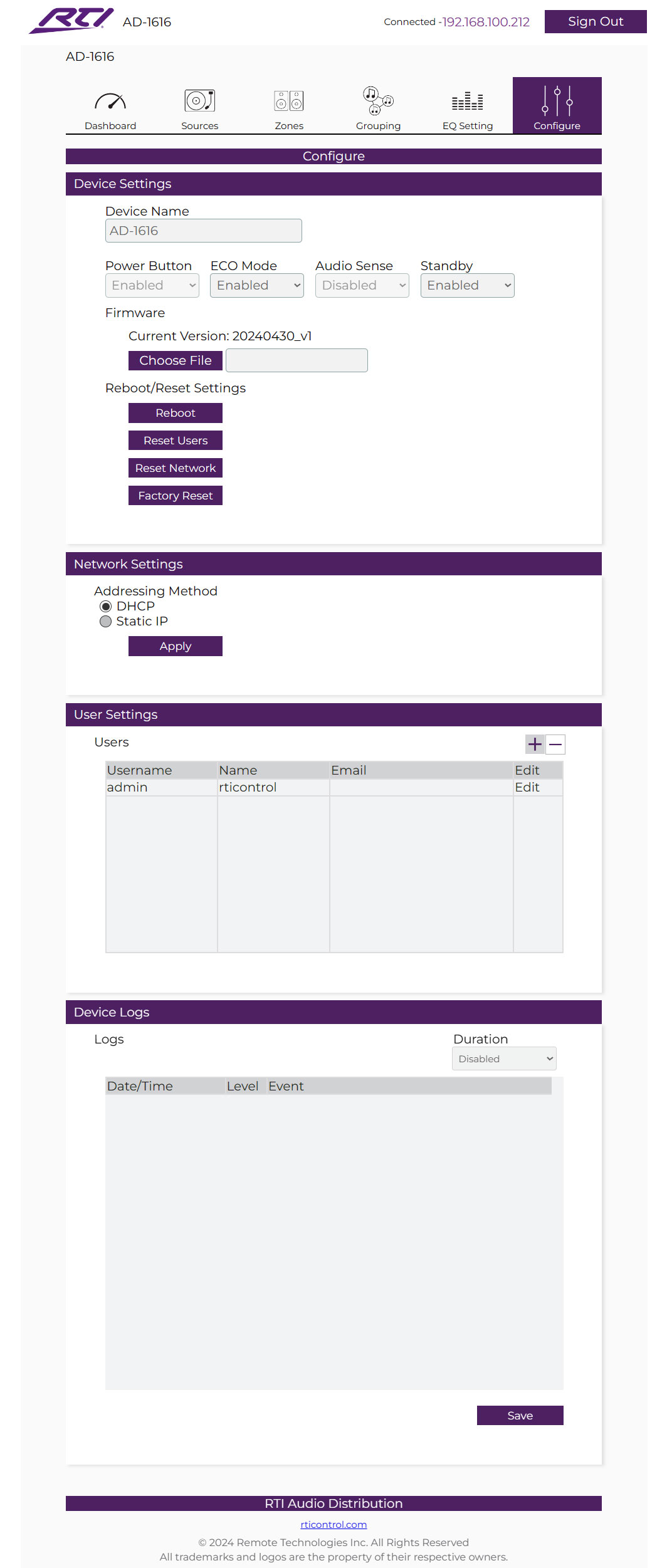

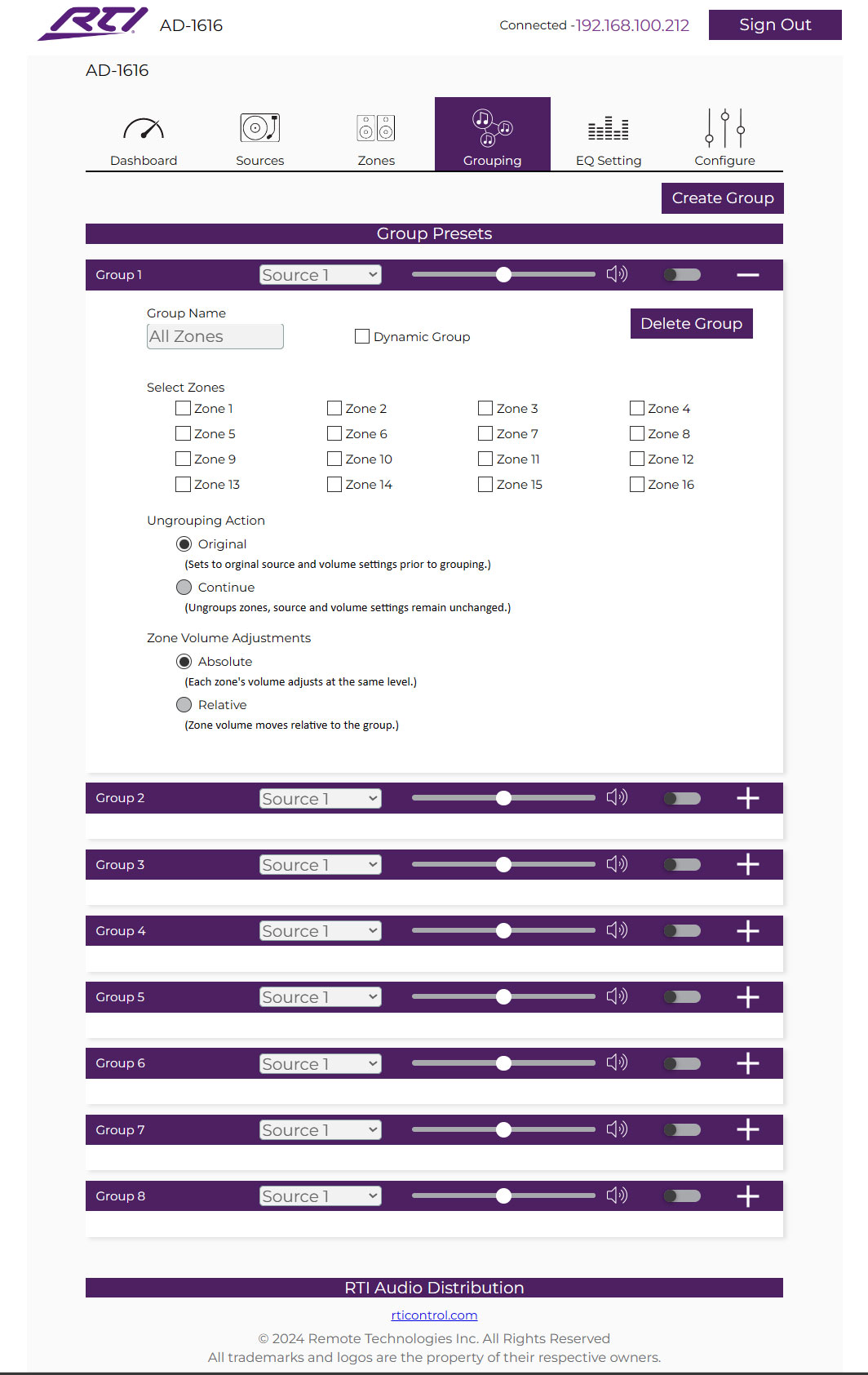

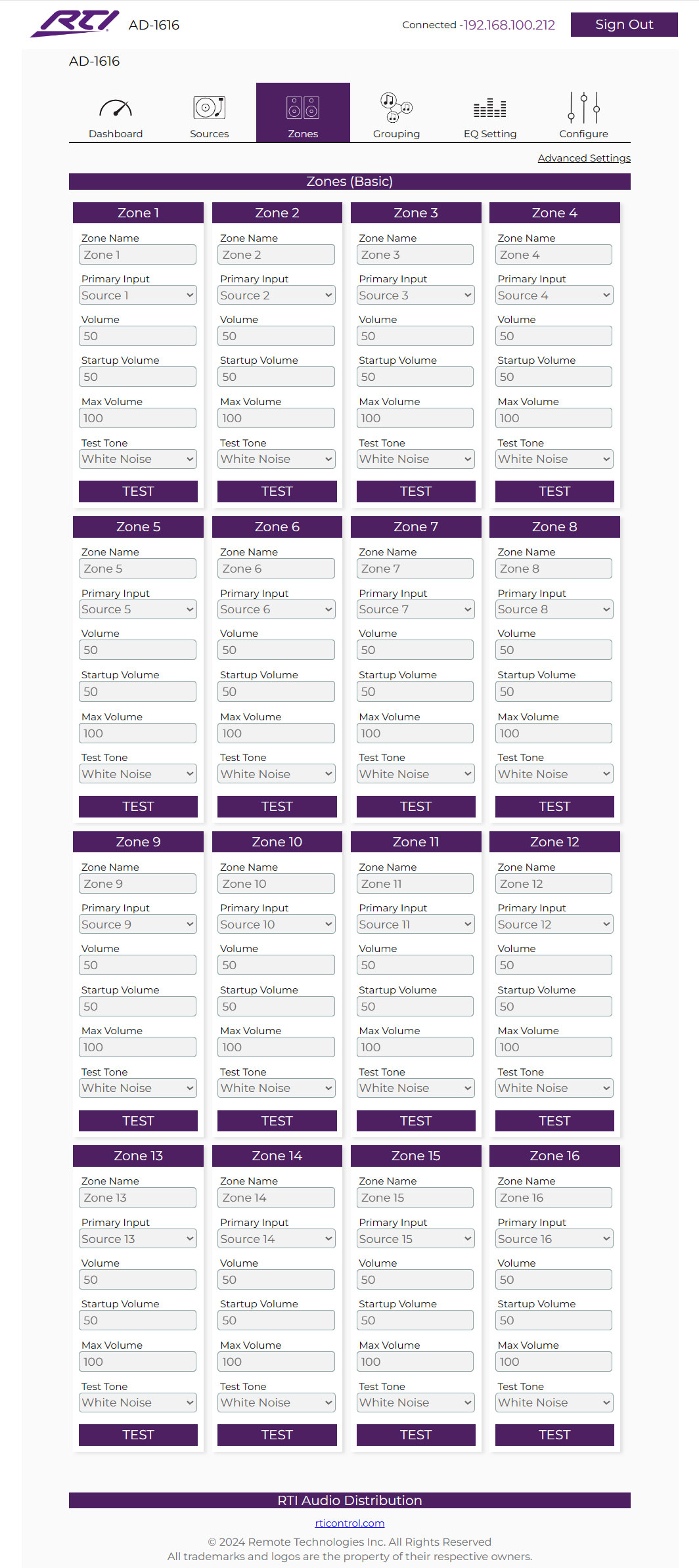

See the image links below for the AD-46-100 Web GUI screens:
